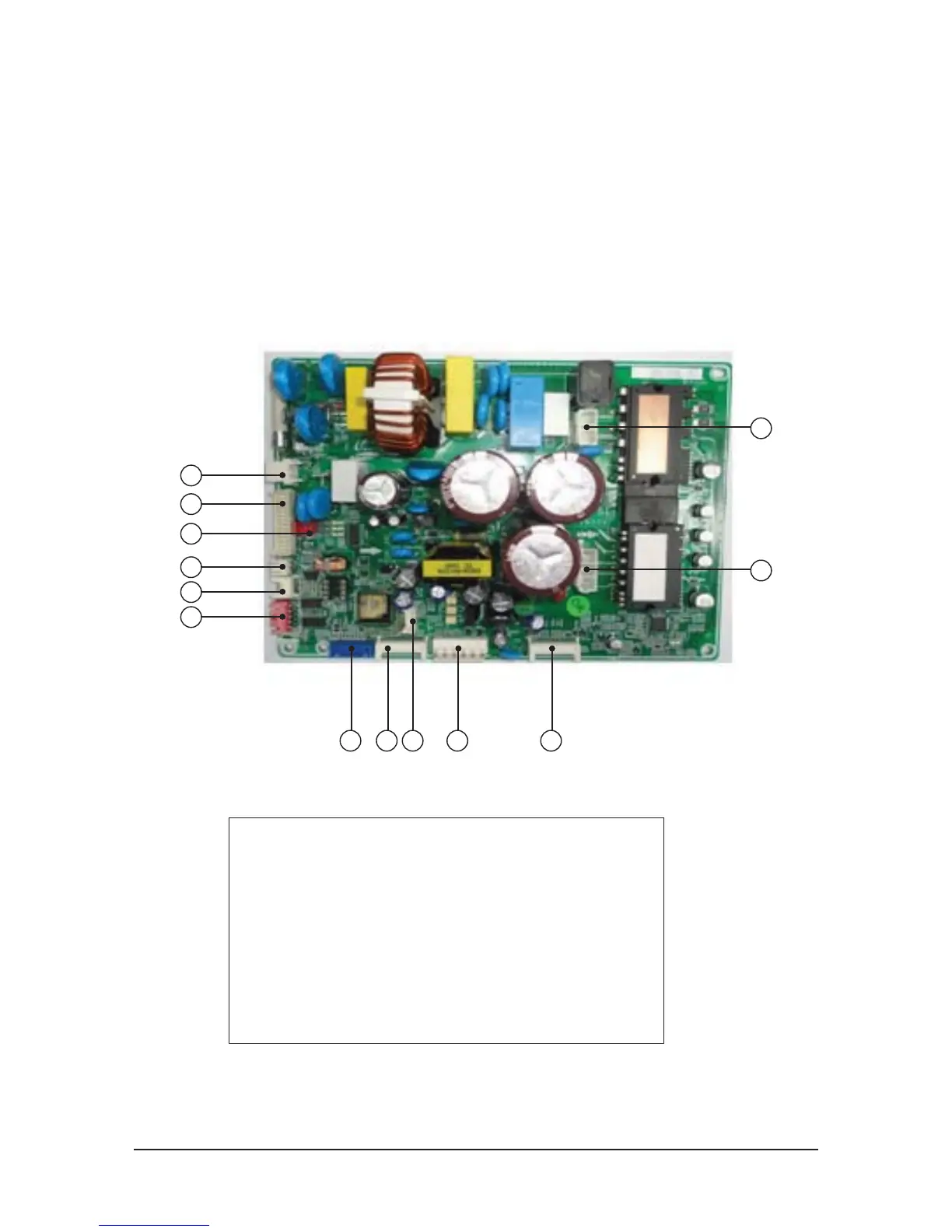

O Main PCB : AC052FCADEH
4
5
1
13
12
7 9 10 118
6
2
3
①4WAYCONNECTOR
②MAIN-SUBCONNECTOR
③485COMMUNICATIONCONNECTOR
④OLPTHERMISTORCONNECTOR
⑤S-NETCONNECTOR
⑥EEV-ACONNECTOR
⑦OUT/DIS/CONDCONNECTOR
⑧DOWNLOAD-MAINCONNECTOR
⑨CENTRAL-CTLCONNECTOR
⑩BLDC-FANCONNECTOR
⑪DOWNLOAD-INVCONNECTOR
⑫COMPCONNECTOR
⑬REACTORCONNECTOR
YAW396-03AVWHT
SMW200-28CWHT
SMW250-02RED
SMAW250-02WHT
SMW200-28CWHT
SMAW250-06RED
SMW250-06BLU
SMAW200-10PBLK
SMW200-05PWHT
YW396-06VWHT
SMAW200-10PRED
DBT061-3PWHT
DBT081-2PWHT
