25

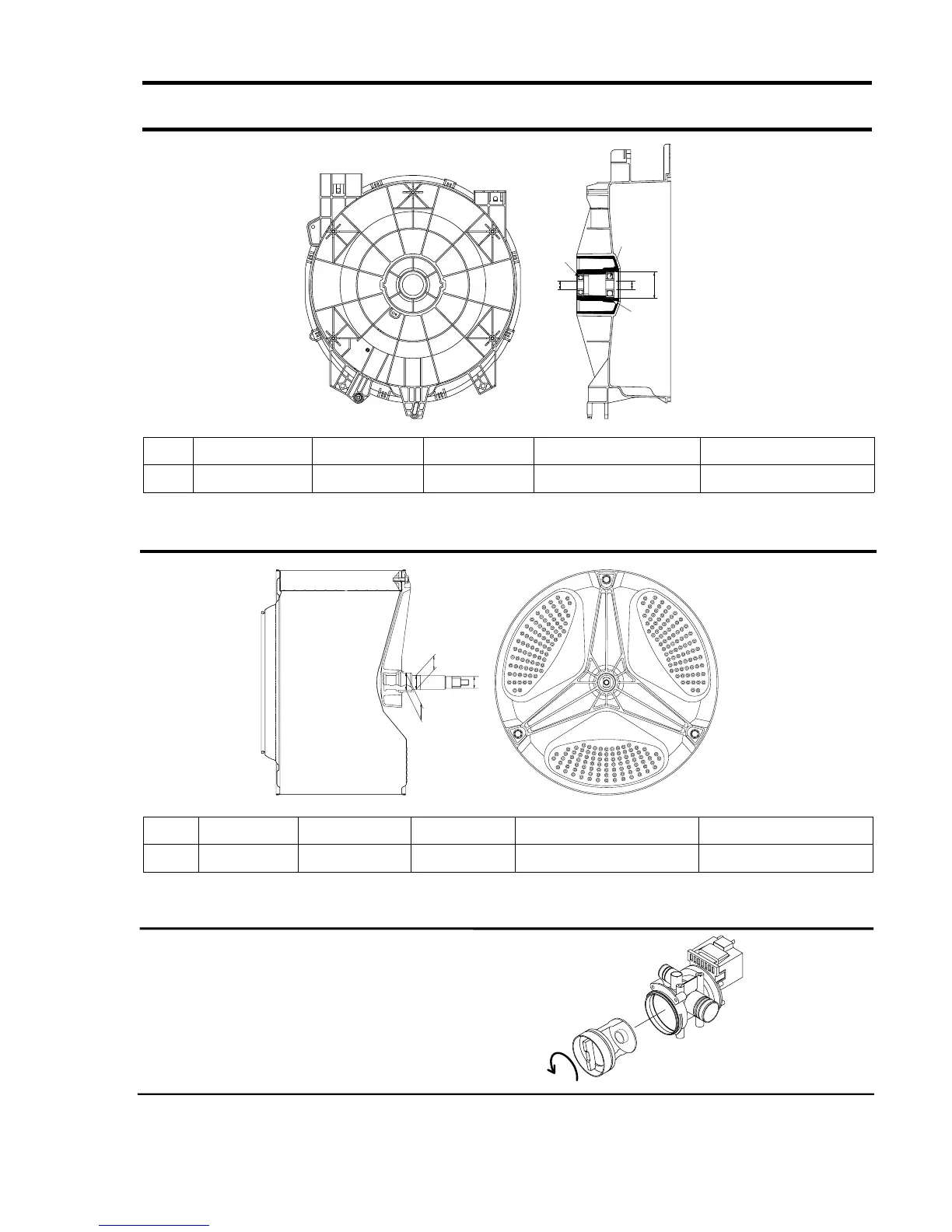

10-6 ASSY-TUB BACK
10-7 ASSY- DRUM
10-8 ASSY-PUMP DRAIN
1) Capacity : AC 230V 34W
2) Location : Front bottom(R)
3) Resistance : 150
Ω
~180
Ω
TYPE (A) (B) (C) CODE-NO. REMARK
I ø 30 ø 23 ø 35 DC97-01463H
TYPE INNER-BEARING(A) OUT-BEARING(B) OIL-SEAL(C) Assy-Housing Bearing(D) Assy-Tub Back
I ø 30 ø 25 ø 34 DC97-05168A DC97-00214R
A
C
OIL-SEAL
INNER-BEARING
OUT-BEARING
B
(unit : mm)
A
C
B
(unit : mm)
