5. Main function
9) Power-out compensation function
●
If power is out on selected process, the process before power out is stored to EEPROM, once power is back
the process before power out continues.
●
When power is back, washing process starts from the process at the point of the power out, rinse/drain process
starts from the initial process.
10) Water heater Error function
①
This function starts working, when the heater works abnormally.
(this function begins sensing the heater 2 minutes later, after the heater operating)
②
The value of the initial thermistor(A1) is compared with that of the thermistor(A2) in 2 minutes (Y=A2-A1)
- For 10 minute the variance of temperature(Y) is less than 2
℃
"E5"message is displayed on the panel.
③
The value of the initial thermistor(A1) is compared with that of the thermistor(A2) in 11 minutes (Y=A2-A1)
- For 1 minute the variance of temperature(Y) increases more than 7
℃
(0.3V) "E6"message is displayed on the
panel.
④
At this time heater, Error "E5 (heater do not work), E6(overheated)" is displayed and all working process off
⑤
The heater operating continues during heating hours, if washing hour is left over, the residual washing process
keeps going without heating.

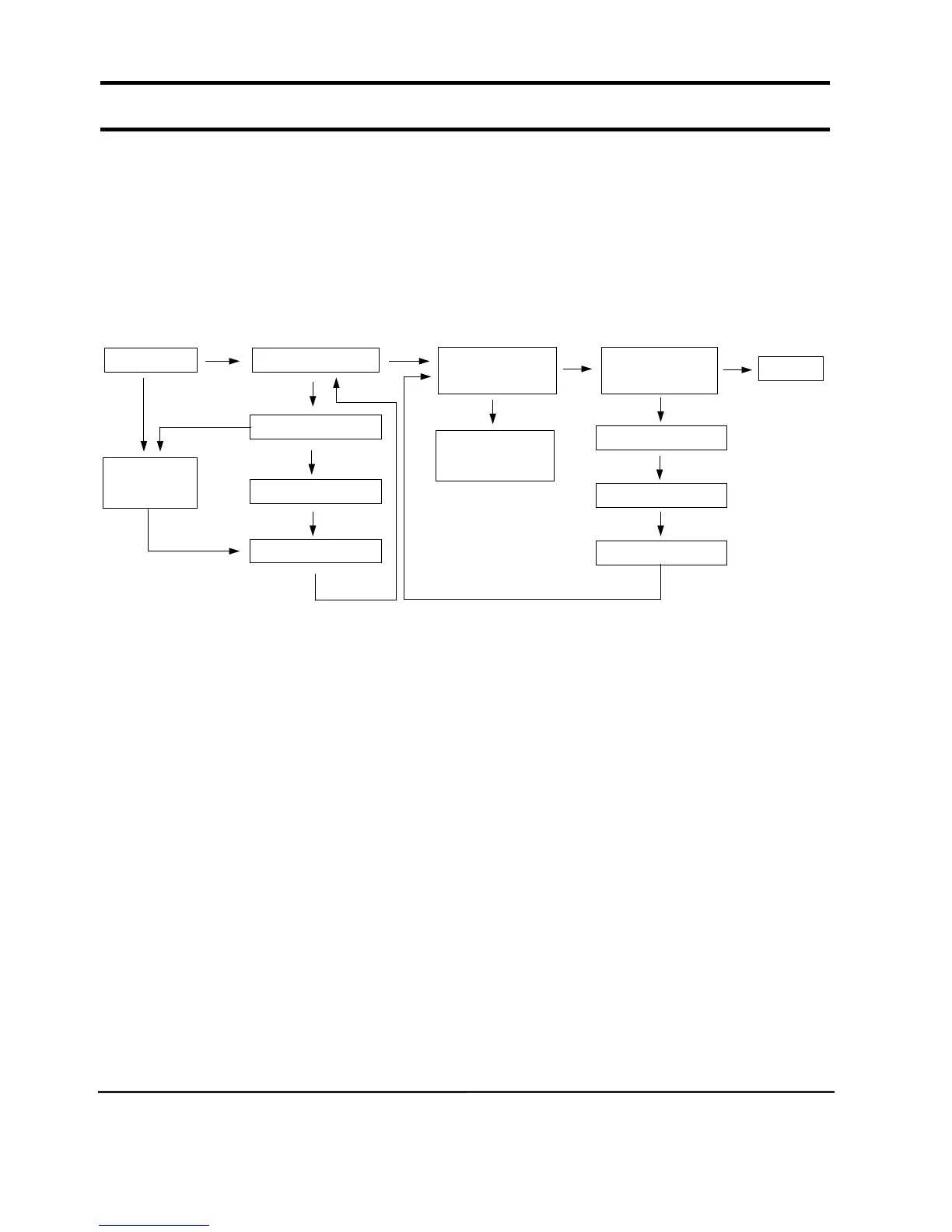

POWER-OUT COMPENSATION FUNCTION PROCESS
WASHINGSTART
RINSE/DRAIN
PROCESS
RINSE/DRAIN
START
FINISH
POWER OUT
POWER BACK
SAVE DATA
to EEPROM
SAVE DATA
to EEPROM
READ DATA
(PROCESS+TIME)
MICOM RESTORE
MICOM RESTORE
RESTART
PROCESS
POWER OUT
POWER BACK
