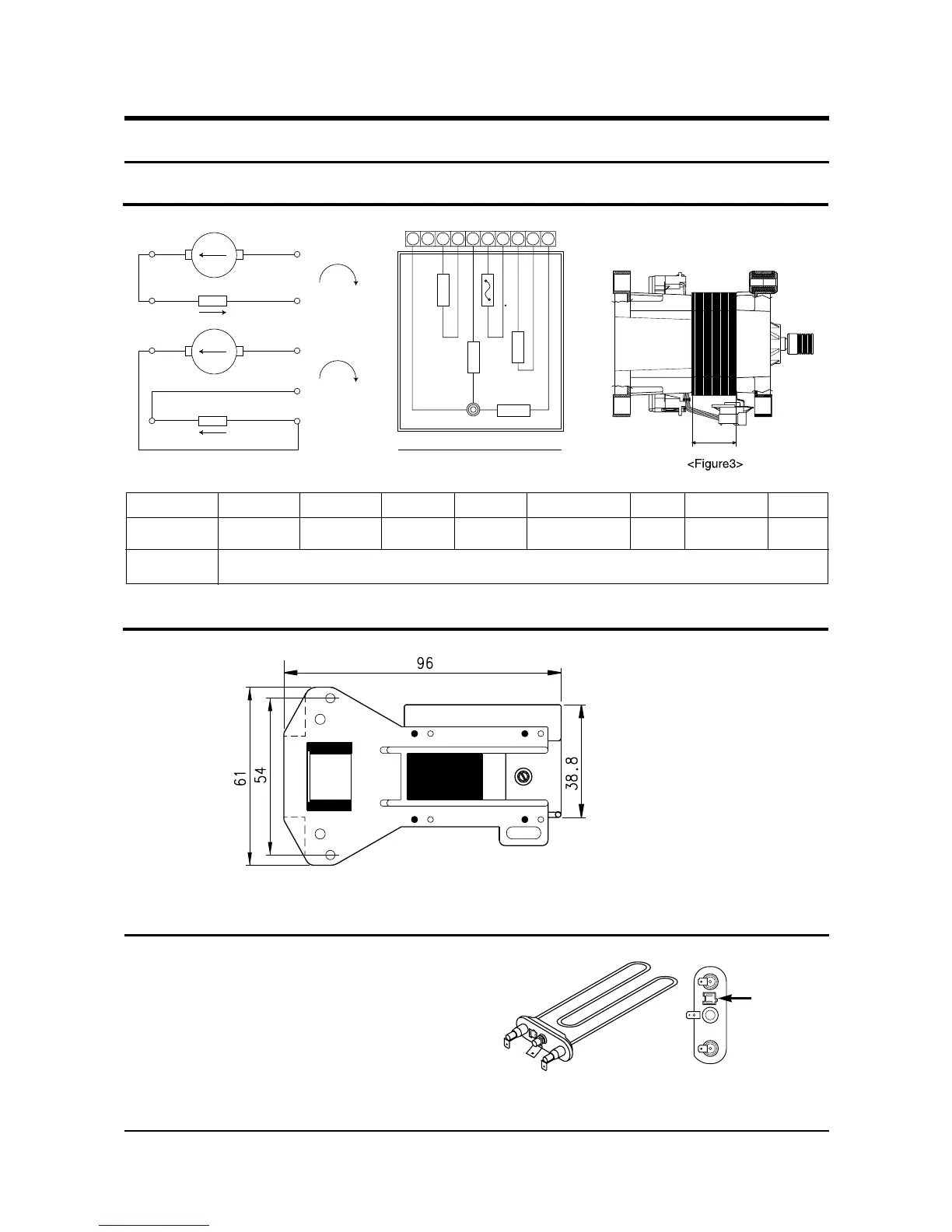

Samsung P1401 - Page 6

1) Capacity : AC 230V/2000W
2) Location : Bottom of TUB
3) Function : Raise the water temperature
supplied at the wash process.
4) Resistance value : 23Ω ~ 29Ω
5) Thermal Fuse : 128°C
7. Designation of Main Components
7-1 Normal / Reverse Revolution of Motor and R. P. M. Control
7-2 Door safety Device
7-3 Heater
SAMSUNG ELECTRONICS CO., LTD10
+
-
89
510
Rotor
Stator coil
CW
+
-
89
5
5
10
Rotor
Stator coil
CCW
<Figure1> <Figure2>
123456
789
10
STATOR
WASHING MOTOR
TACHO
HIGH-SPEED
STATOR
PROTECTOR
MIDDLE-SPEED
ROTOR
(150 C)
(
±
7%) STATOR(5.10) STATOR(5.1) ROTOR(8.9) TACHO(3.4) PROTECTOR(6.7) “H”(mm) Code-No Remark
Resistance value 2.07 Ω 0.90 Ω 2.35 Ω 42.7 Ω 0 45 DC31-00002C B
Rated value 220~240V / 50Hz
Thermistor
H
➔
DC61-00122A
