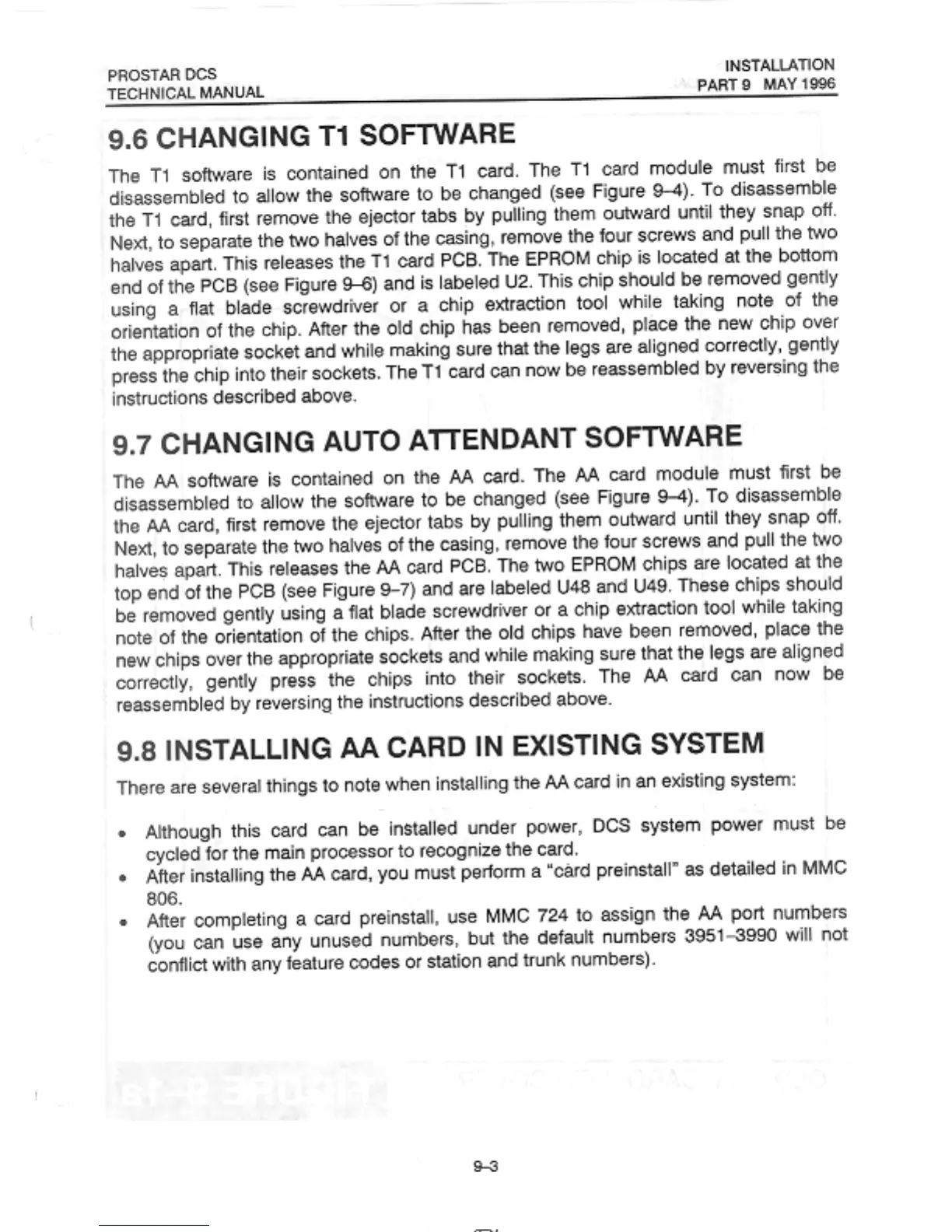

Samsung Prostar DCS - Changing T1 Software; Changing Auto Attendant Software; Installing AA Card in Existing System
