Machine overview
21
1. Introduction
11

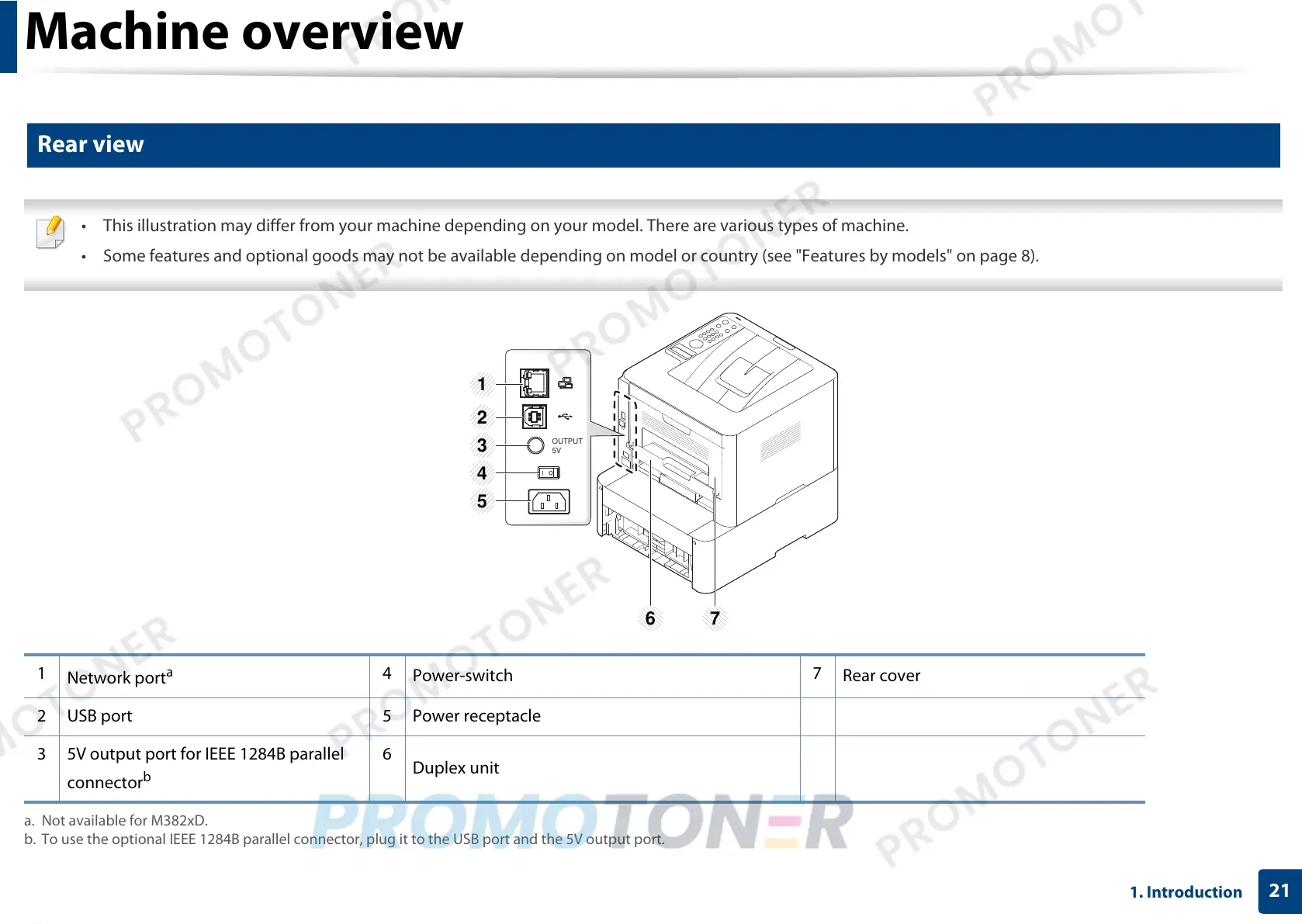

Rear view
• This illustration may differ from your machine depending on your model. There are various types of machine.
• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8).
1
Network port
a
a. Not available for M382xD.
4
Power-switch
7
Rear cover
2USB port 5Power receptacle
3 5V output port for IEEE 1284B parallel
connector
b
b. To use the optional IEEE 1284B parallel connector, plug it to the USB port and the 5V output port.
6
Duplex unit
