Samsung PS43E491 - Page 7

English - 7

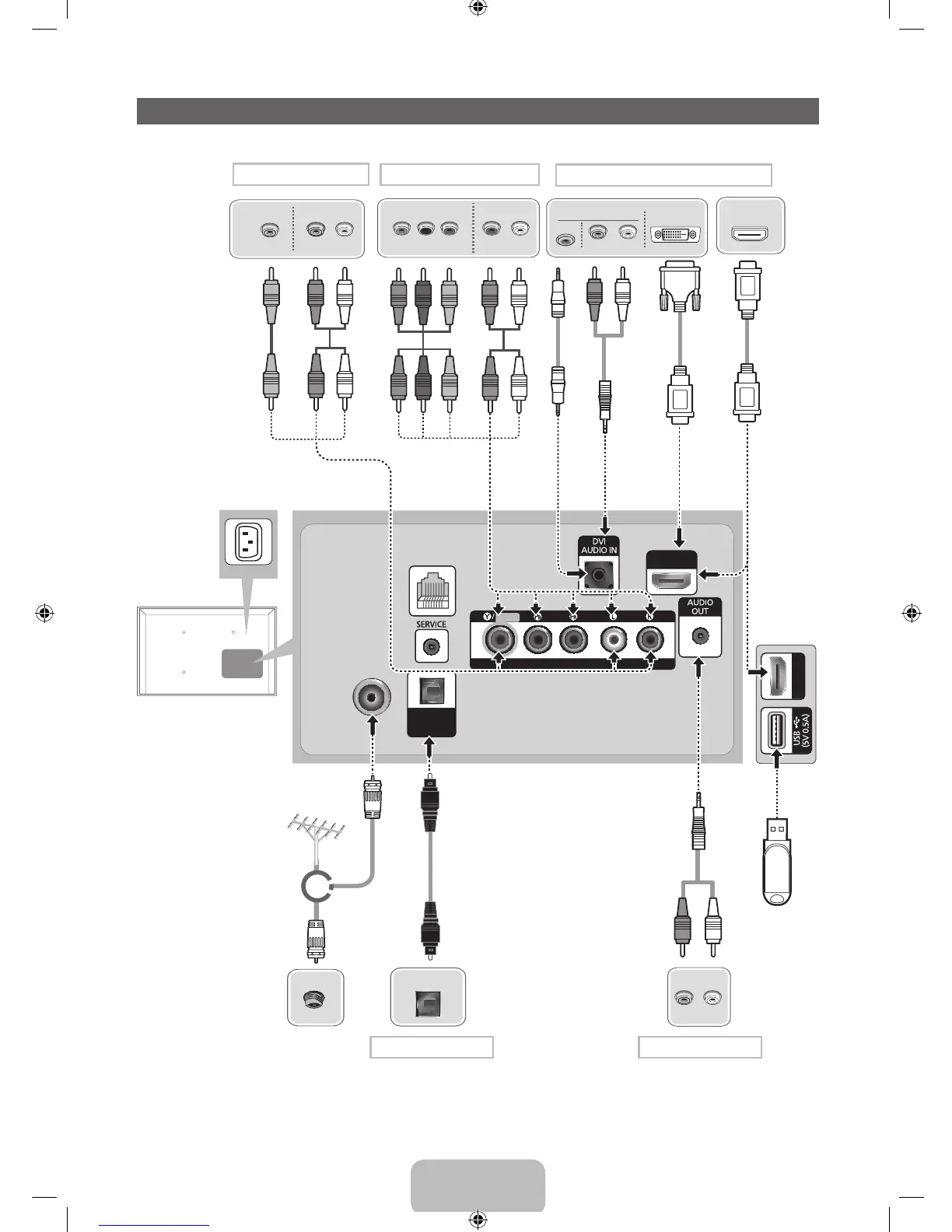

Connections
HDMI IN 1
(DVI)
ANT IN
DIGITAL
AUDIO OUT
(OPTICAL)
LAN
AUDIO
VIDEO
COMPONENT / AV IN
OPTICAL
AUDIO OUT
R-AUDIO-L
PR PB Y
COMPONENT OUT
AUDIO OUT
R-AUDIO-L
VIDEO OUT
R B
R B RG
WR
R
Y
Y
W
WR
R
W
R
G
R W
HDMI OUT
R
W
R W
AUDIO IN
R-AUDIO-L
HDMI IN 2
DVI OUT
AUDIO OUT
R-AUDIO-L
PC
VHF/UHF Antenna
Cable
or
TV Rear Panel
TV Side Panel
HDMI, HDMI/DVI connection
Audio connection Audio connection
Component connection
AV connection
✎ The position of port
may differ depending
on the model.
✎ The PDP device
may interfere with an
amateur radio or AM
radio.
✎ When using two-
way radio mobile
and portable units
or amateur radio or
AM radio near by
your TV, this may
cause the TV to
malfunction.
