Samsung QB49R Quick Setup Guide

• Quick Setup Guide
• Regulatory guide
• Batteries (AAA x 2) (Not available in some locations)
• RS232C(IN) adapter
• Holder-Ring x 4
• Warranty card (Not available in some locations)
• Power cord
• Remote Control
• HOLDER-CABLE
• (Supported models: QB65R, QB65R-N, QB75R, QB75R-N)
Contact the vendor where you purchased the product if any components are missing.
Components may differ in different locations.
1 Connect to a USB memory device.
* The USB ports on the product accept a maximum constant current of 1.0A. If the maximum value is exceeded, USB
ports may not work.
2 Connects to MDC using a LAN cable. (10/100 Mbps)
3 Connects to MDC using an RS232C adapter.
4 DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
MAGICINFO IN: Connects to a network box using DP-DVI cable to use Magicinfo.
5 Connects to a source device using a HDMI cable or HDMI-DVI cable.
6 Connect to a USB memory device.
* The USB ports on the product accept a maximum constant current of 0.5A. If the maximum value is exceeded, USB
ports may not work.
7 Receives sound from a source device via an audio cable.
8 Outputs sound to an audio device via an audio cable.
9 Connects to an external IR cable that receives signals from the remote control.
10
Connects to MDC using an RS232C adapter.
Checking the Components

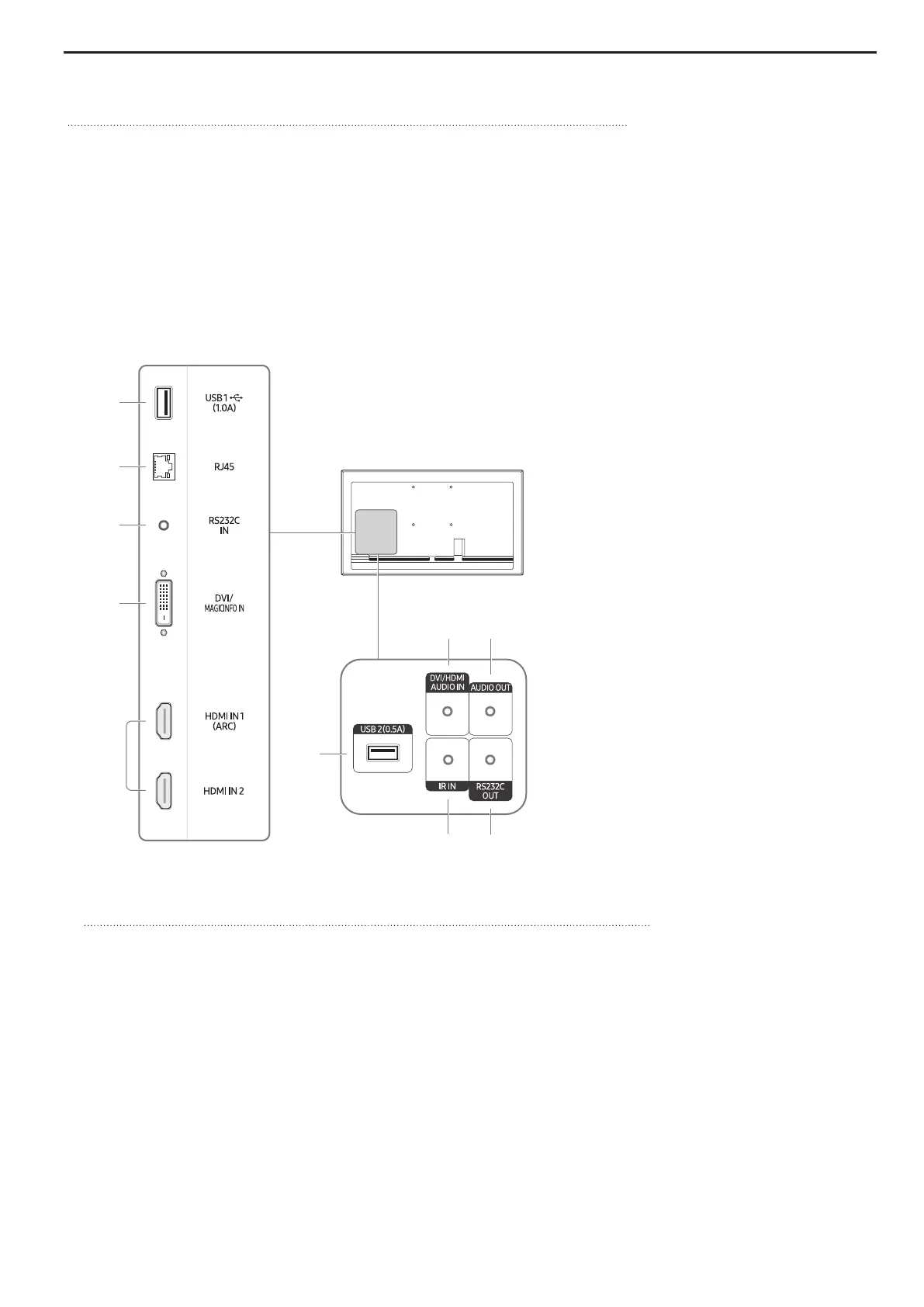

Ports
2
3
4
5
1
7 8
09
6

Samsung QB49R Specifications

General

Color gamut	92 %
Pixel pitch	0.093 x 0.279 mm
Response time	8 ms
Display diagonal	49 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Display number of colors	16.78 million colors
Active display area (W x H)	1073.78 x 604 mm
Dynamic contrast ratio marketing name	Mega Contrast
Package depth	152 mm
Package width	1247 mm
Package height	772 mm
Package weight	18000 g
Ethernet LAN	Yes
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	1
AC input voltage	100 - 240 V
Heat dissipation	470.5 BTU/h
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	103 W
Cables included	AC
L2 cache	2048 KB
User memory	4.12 GB
Memory clock speed	1500 MHz
Purpose	Universal
Operating hours (hours/days)	-
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
Certification	60950-1, EMC B
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	9.2 mm
Placement supported	Indoor
Bezel width (bottom)	11.2 mm
Panel mounting interface	200 x 200 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
RMS rated power	20 W
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	46.3 mm
Width	1099.2 mm
Height	631.5 mm
Weight	13500 g
