Locating the Units
(Continued)

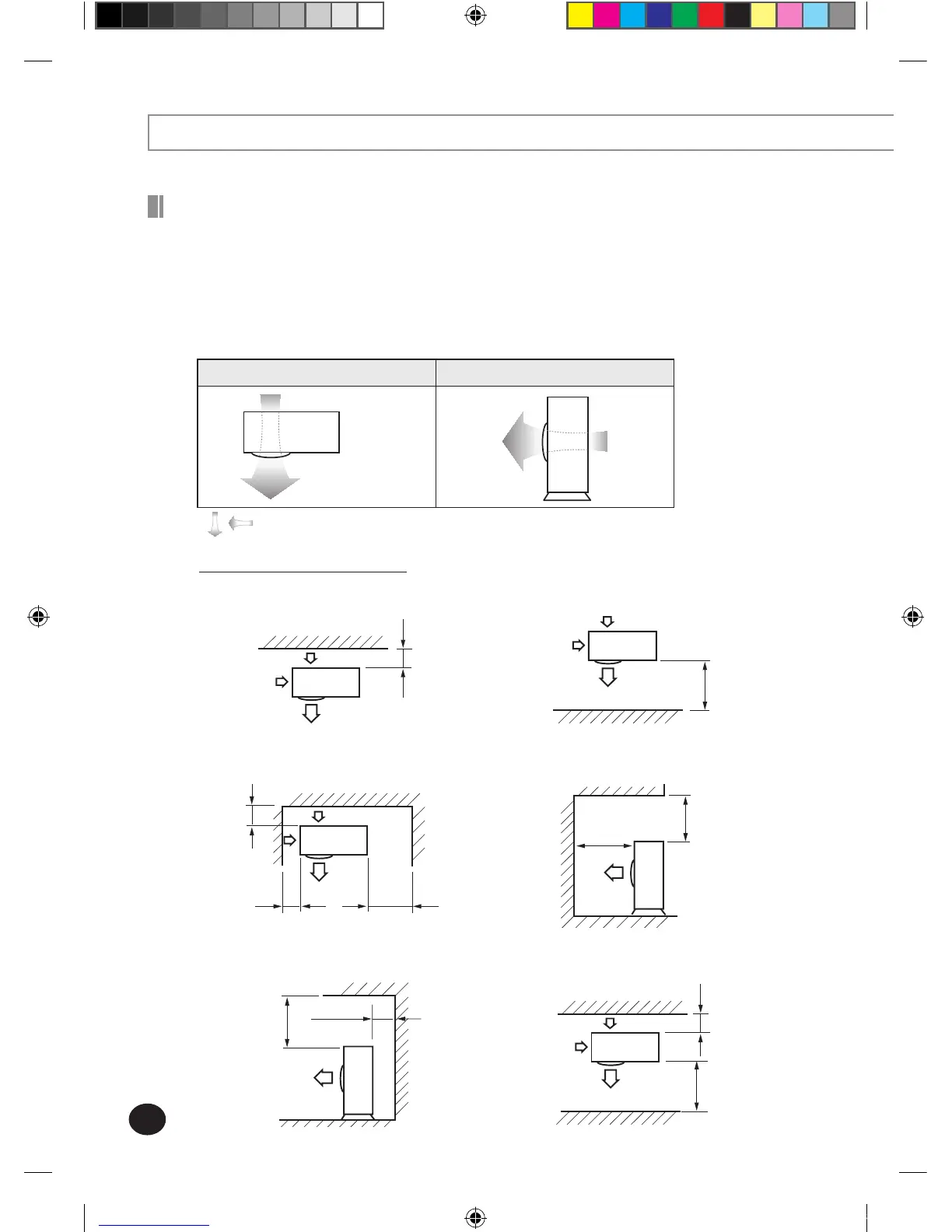

Space Requirements for Outdoor Unit
Observe the clearances and dimensions as seen below when installing the outdoor unit.
If you install several outdoor units simultaneously, observe the space for ventilation and
free airflow.
If the space for ventilation is insufficient, the Air to water heat pump may be inefficient.
SAMSUNG logo is attached on the front side of the outdoor unit.
Figure Description
Top view
Side view
Front side:
Air outlet
Back side:
Air intake
Back side: Air intake
Front side: Air outlet
, Air flow direction.
When installing 1 outdoor unit
300 or more
When the air outlet is opposite the wall
1500 or more
When the air outlet is toward the wall
(Unit : mm)
300 or more
150 or more
600 or more
When 3 sides of the outdoor unit
are blocked by the wall
The upper part of the outdoor unit
and the air outlet is toward the wall
1500 or more
2000 or more
1500 or more 300 or more
When the walls are blocking front and
the rear side of the outdoor unit
500 or more
300 or more
The upper part of the outdoor unit and
the air outlet is opposite the wall
