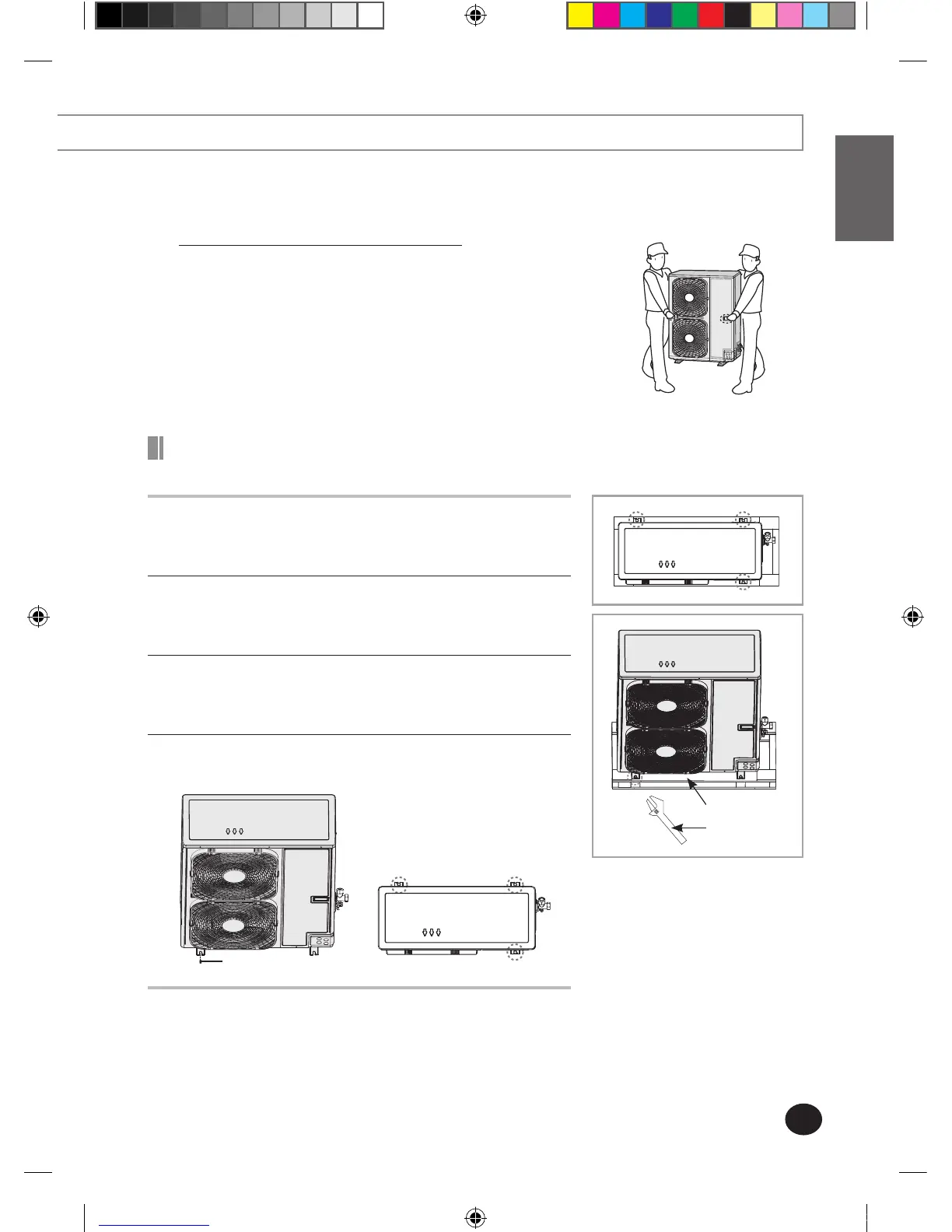

Locating the Units
(Continued)
When the moving distance of the product is close enough for
installation personnel to carry.
- 2 people should move the product using the carry handle as
shown in the picture.
- Be careful not to damage the heat exchanger.
- Be careful not to get injured by the sharp edge of the
heat exchanger.
When moving by installation personnel
1
Disassemble the three screws (with an electric driver) which
fixes wood palette.
2
Disassemble the bottom-left screw with monkey spanner.
Do not remove guard fan.
3
After removing the wood palette, move the outdoor unit to
the installation place.
4
Fasten the bottom-left screw with monkey spanner first, and
then fasten the other three anchor bolts.
Screw
Disassembling the Leg Base and Wood Palette /
Fastening the Anchor Bolt
Monkey spanner
Wood palette
To Next Page
