Locating the Units
(Continued)
Combinations (Outdoor / indoor units)
Outdoor unit Cooling capacity (kW)
Maximum allowable
connections for indoor units
(Not including Hydro-A2W)
Total capacity of connected
indoor units (kW)
RD060PHXEA 6.0 3 4.0 ~ 7.0
RD070PHXEA 7.0
3 4.0 ~ 7.5
RD080PHXEA 8.0
3 4.0 ~ 8.0
RD110PHXEA 11.0
4 6.4 ~ 11.0
RD140PHXEA 14.0
4 6.4 ~ 14.0
RD0160PHXEA 16.0
4 6.4 ~ 14.0
Available for max 4 indoor units.
When considering the system capacity of allowable indoor units, follow the table above.
General Tools
Vacuum Pump(Backward flowing prevention)
Manifold Gauge
Stud Finder
Torque Wrench
Pipe Cutter
Reamer
Pipe Bender
Spirit Level
Screw Driver
Spanner
Drill
L Wrench
Measuring Tape
Tools for test operations
Thermometer
Resistance Meter
Electroscope
Tools Required for Installation
Moving the Outdoor Unit
Select the moving route.
Secure the strength of the carrying path to resist against the weight of the outdoor unit.
Do not slant the product more than 30˚ when carrying it. (Do not lay the product down sideways.)
The surface of the heat exchanger is sharp. Be careful not to be get injury while moving.
Wire rope/straps
Wood palette

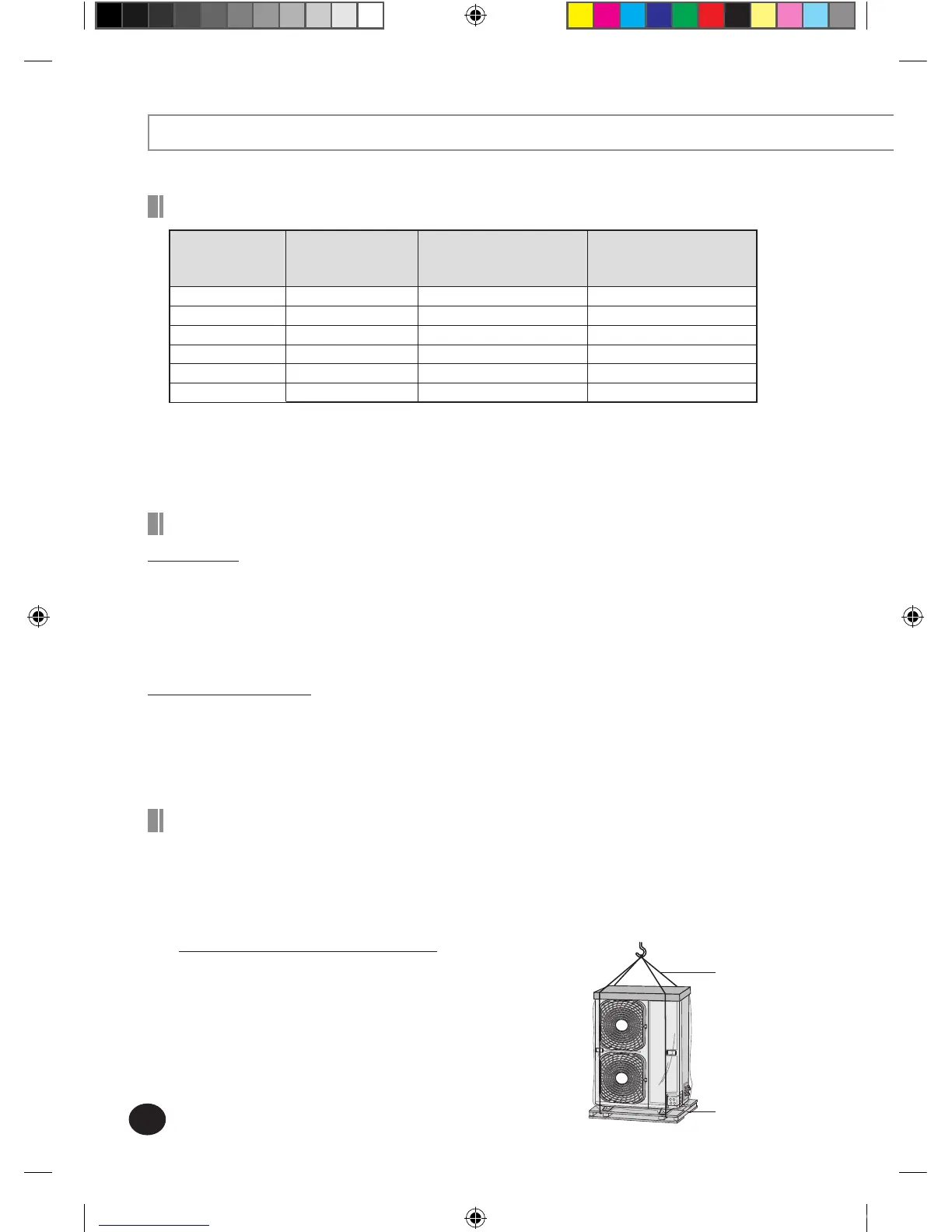

When moving with a crane or straps
In case of placing the outdoor unit on a high ground
such as rooftop
- Fasten the wire rope as seen in the picture.
- Move the product with its package on, to prevent any
damages caused by the rope.
