Samsung RF217AB - Disassembling the Fridge Door; Fridge Door Removal Steps; Disassembling the Freezer Door (Drawer Type); Drawer Type Freezer Door Removal Steps

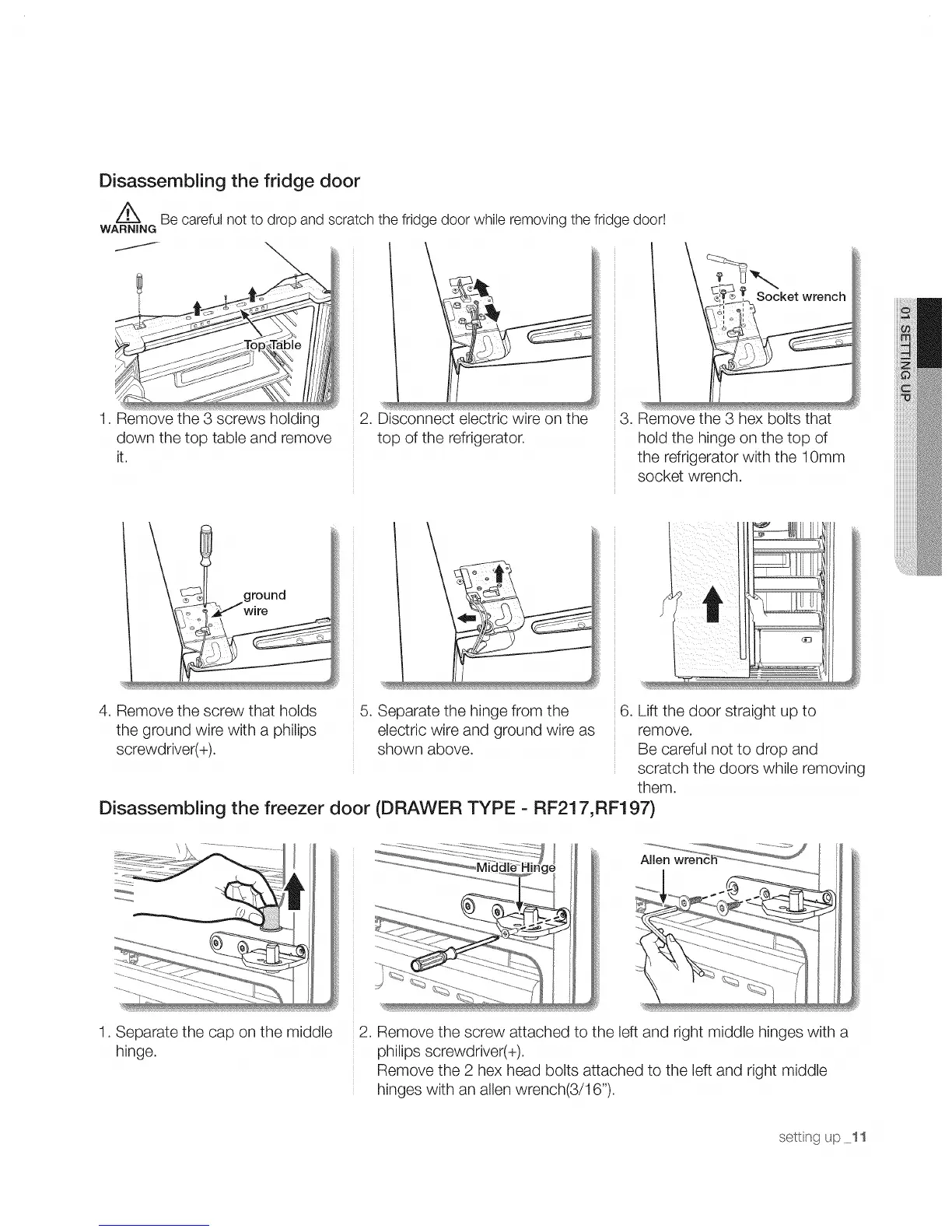

Disassembling the fridge door
A Be careful not to drop and scratch the fridge door while removing the fridge door!
WARNING
1. Remove the 3 screws holding
down the top table and remove
it.
2. Disconnect electric wire on the
top of the refrigerator.
Socket wrench
3. Remove the 3 hex bolts that
hold the hinge on the top of
the refrigerator with the 10mm
socket wrench,
ground
wire
4. Remove the screw that holds
the ground wire with a philips
screwdriver(+).
5. Separate the hinge from the
electric wire and ground wire as
shown above.
6. Lift the door straight up to
remove.
Be careful not to drop and
scratch the doors while removing
them.
Disassembling the freezer door (DRAWER TYPE - RF217,RF197)
1. Separate the cap on the middle
hinge.
2. Remove the screw attached to the left and right middle hinges with a
philips screwdriver(+).
Remove the 2 hex head bolts attached to the left and right middle
hinges with an allen wrench(3!16").
settqg up 11
