Door

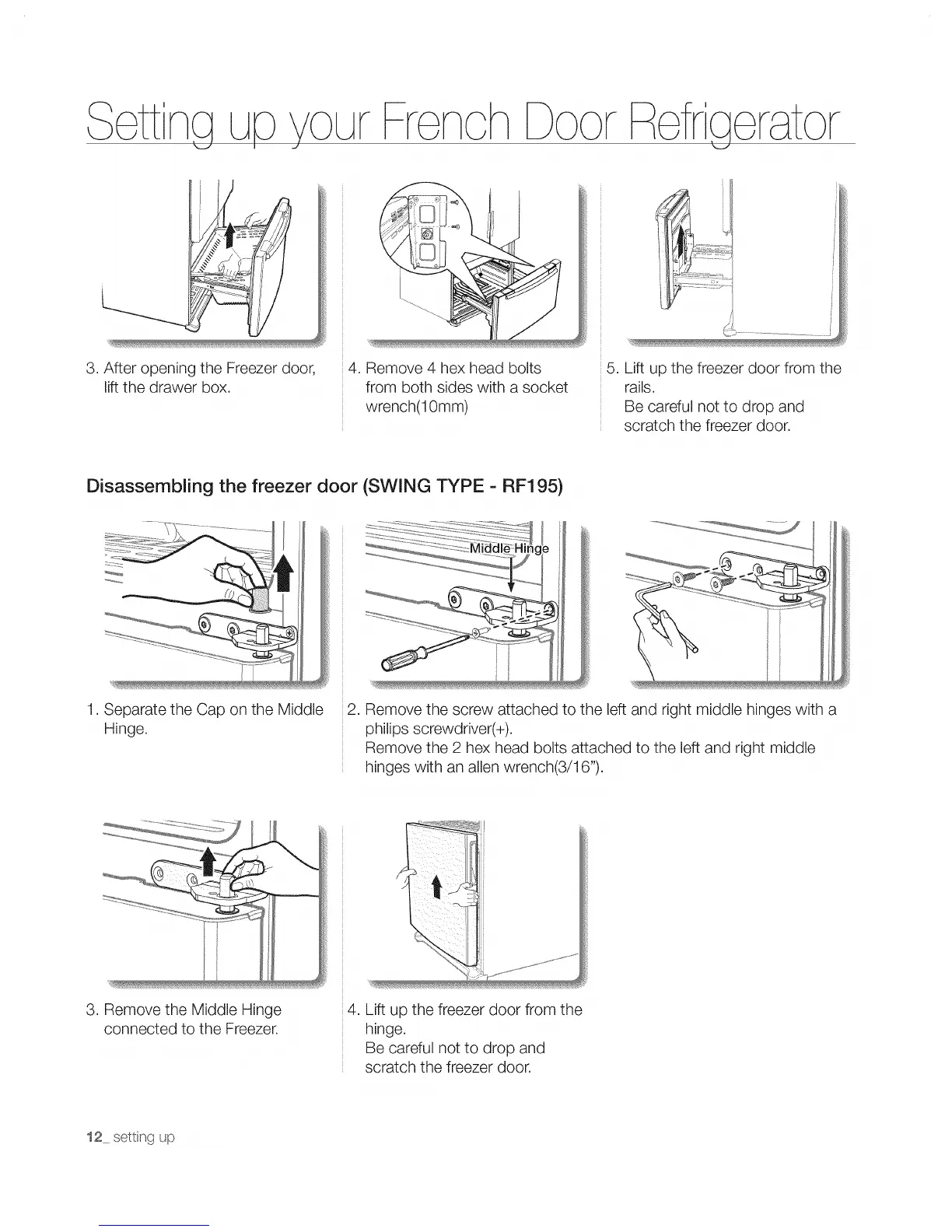

3. After opening the Freezer door,
lift the drawer box.
4. Remove 4 hex head bolts
from both sides with a socket
wrench(10ram)
5. Lift up the freezer door from the
rails.
Be careful not to drop and
scratch the freezer door.
Disassembling the freezer door (SWING TYPE - RF195)
1. Separate the Cap on the Middle
Hinge.
2. Remove the screw attached to the left and right middle hinges with a
philips screwdriver(+).
Remove the 2 hex head bolts attached to the left and right middle
hinges with an allen wrench(3!16").
3. Remove the Middle Hinge
connected to the Freezer.
4. Lift up the freezer door from the
hinge.
Be careful not to drop and
scratch the freezer door.
12 setting up
