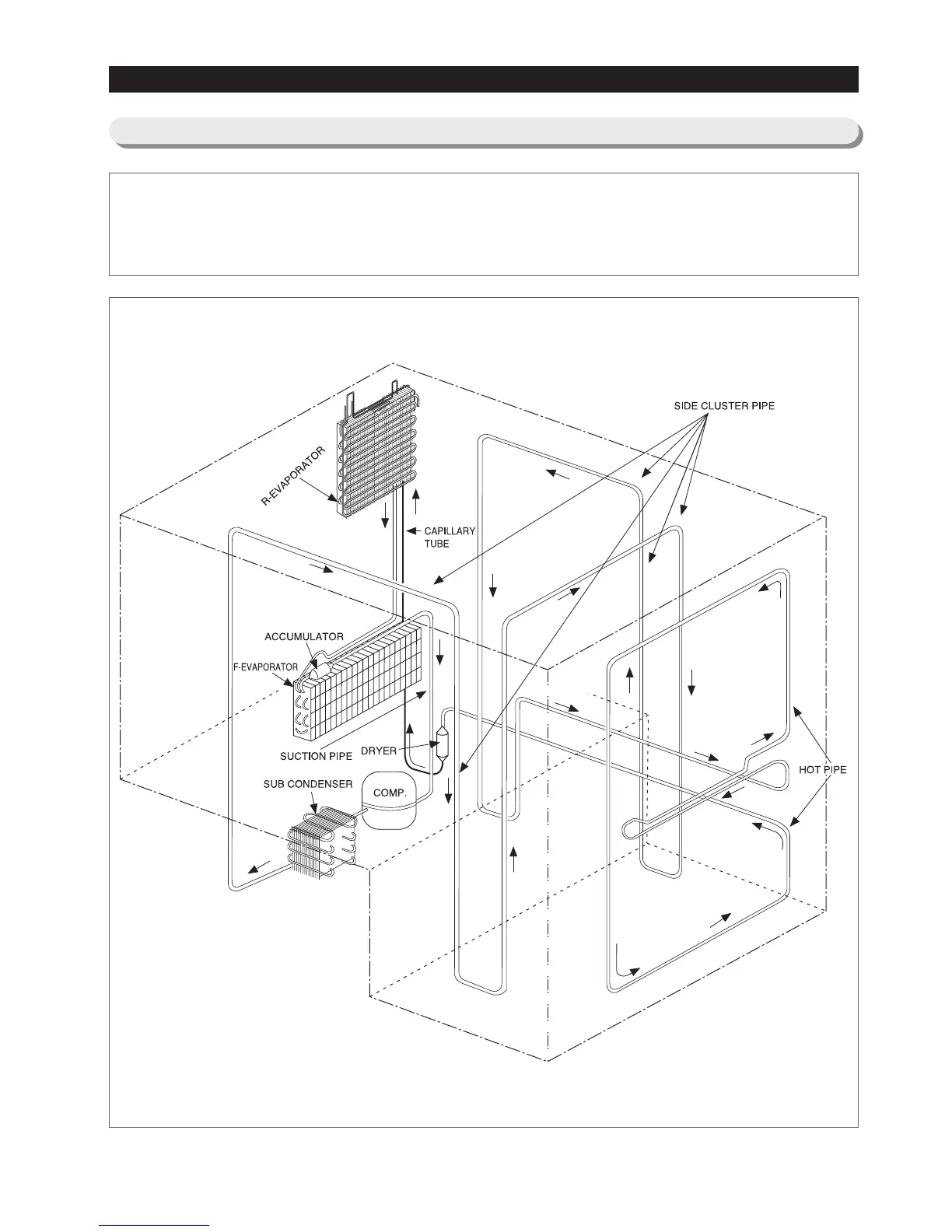

Samsung RF217ABWP - 2-7) Refrigerant Route in Refrigeration Cycle

15
Compressor → Sub-condenser → Side Cluster → Hot Pipe → Dryer → R Capillary
→ R Evaporator → F Evaporator → Suction Pipe → Compressor
PRODUCT SPECIFICATIONS
2-7) Refrigerant Route in Refrigeration cycle
