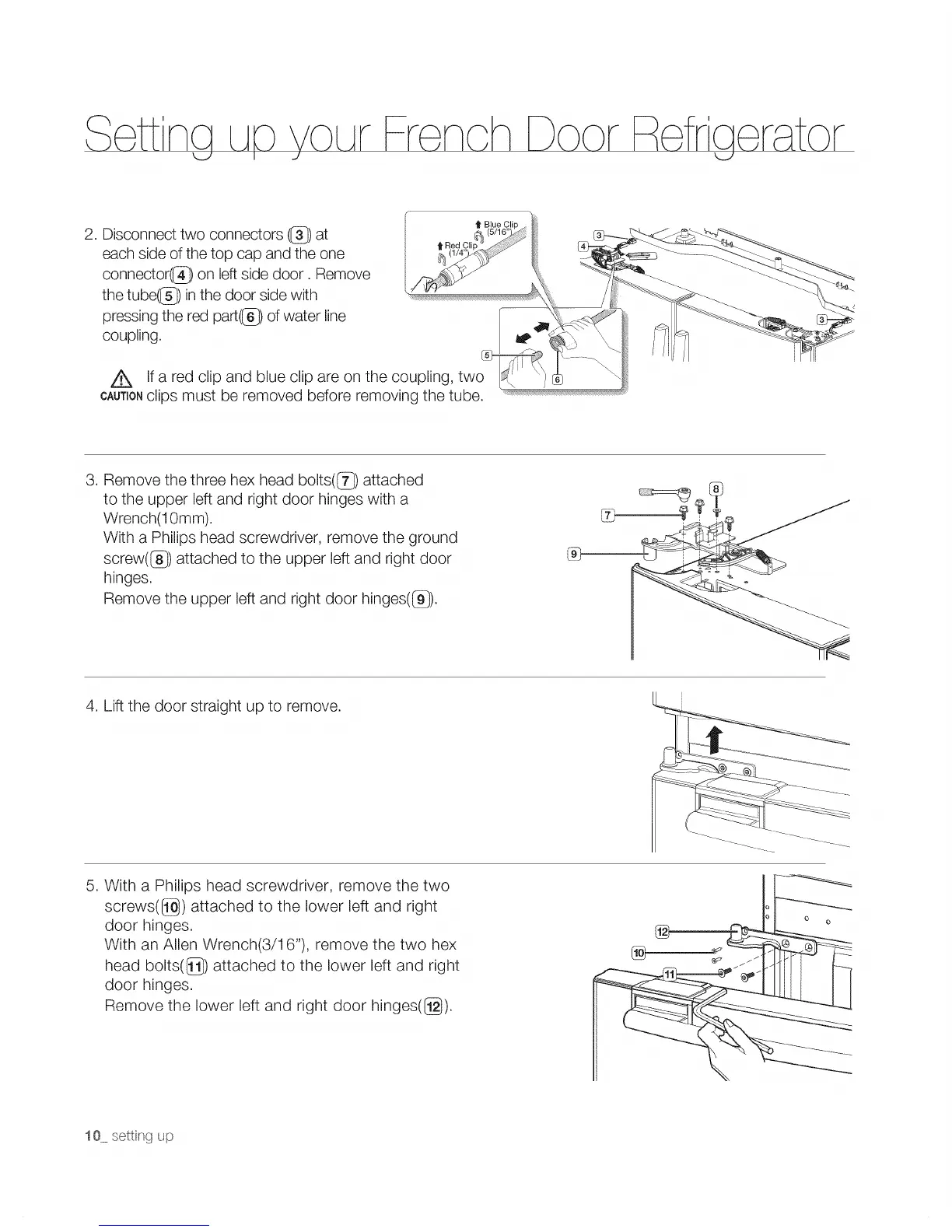

2. Disconnect two connectors (1_) at
each side of the top cap and the one
connector(@) on left side door. Remove
the tube(G ) in the door side with
pressing the red part((_) of water line
coupling.
Z_ If a red clip and blue clip are on the coupling, two
CAUTIONclips must be removed before removing the tube.
3. Remove the three hex head bolts(G ) attached
to the upper left and right door hinges with a
Wrench(10mm).
With a Philips head screwdriver, remove the ground
screw(_}) attached to the upper left and right door
hinges.
Remove the upper left and right door hinges(_}).
%
, i ,
4. Lift the door straight up to remove.
5. With a Philips head screwdriver, remove the two
screws([_) attached to the lower left and right
door hinges.
With an Allen Wrench(3/1 6"), remove the two hex
head bolts(G ) attached to the lower left and right
door hinges.
Remove the lower left and right door hinges([_}).
10 settng up
