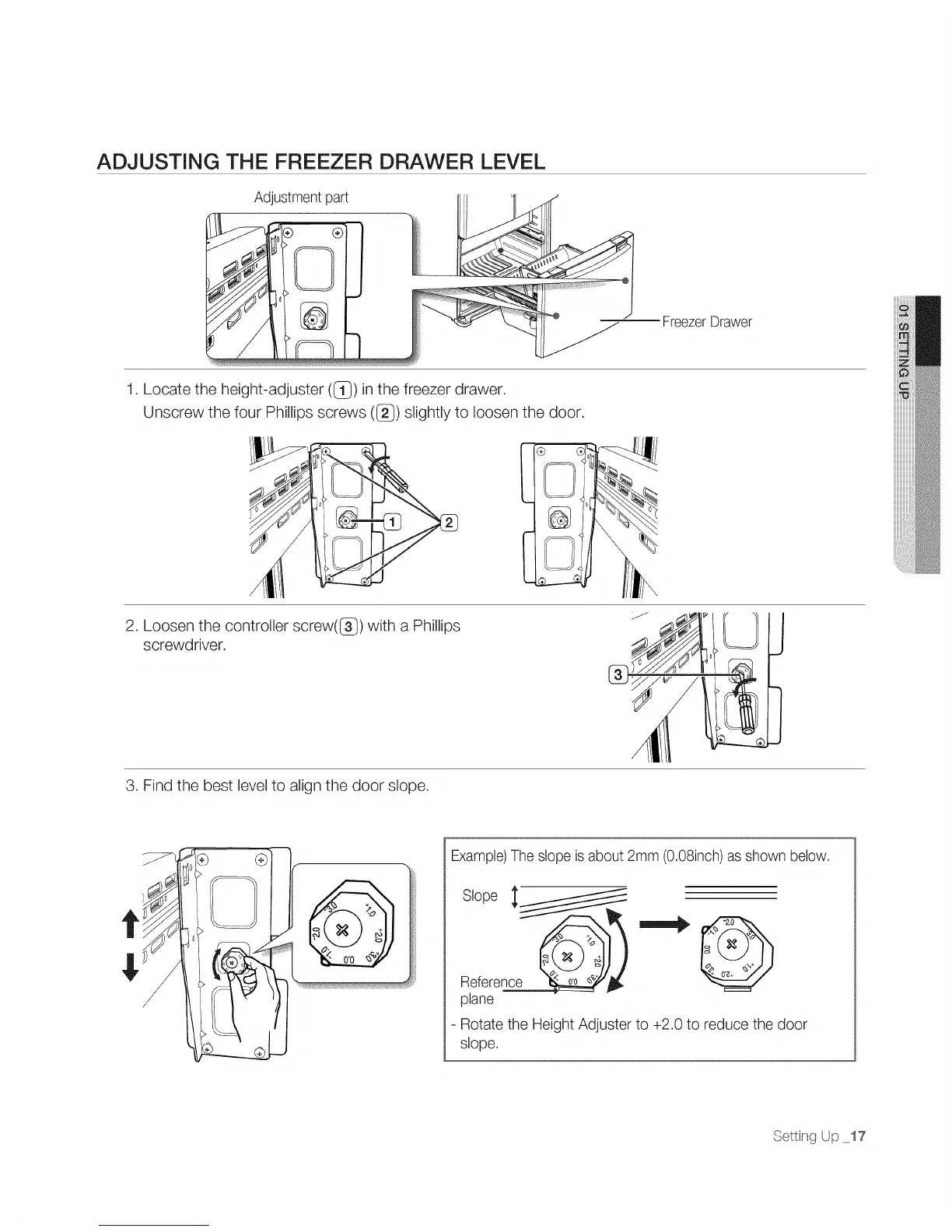

ADJUSTING THE FREEZER DRAWER LEVEL
Adjustment part
Freezer Drawer
1. Locate the height-adjuster (1_) in the freezer drawer.
Unscrew the four Phillips screws (_) slightly to loosen the door.
<
.J
2. Loosen the controller screw(G ) with a Phillips
screwdriver.
3. Find the best level to align the door slope.
@
Example) The slope is about 2mm (0.08inch) as shown below.
Slope __
Reference @)
plane
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
Setti_g Up 17
