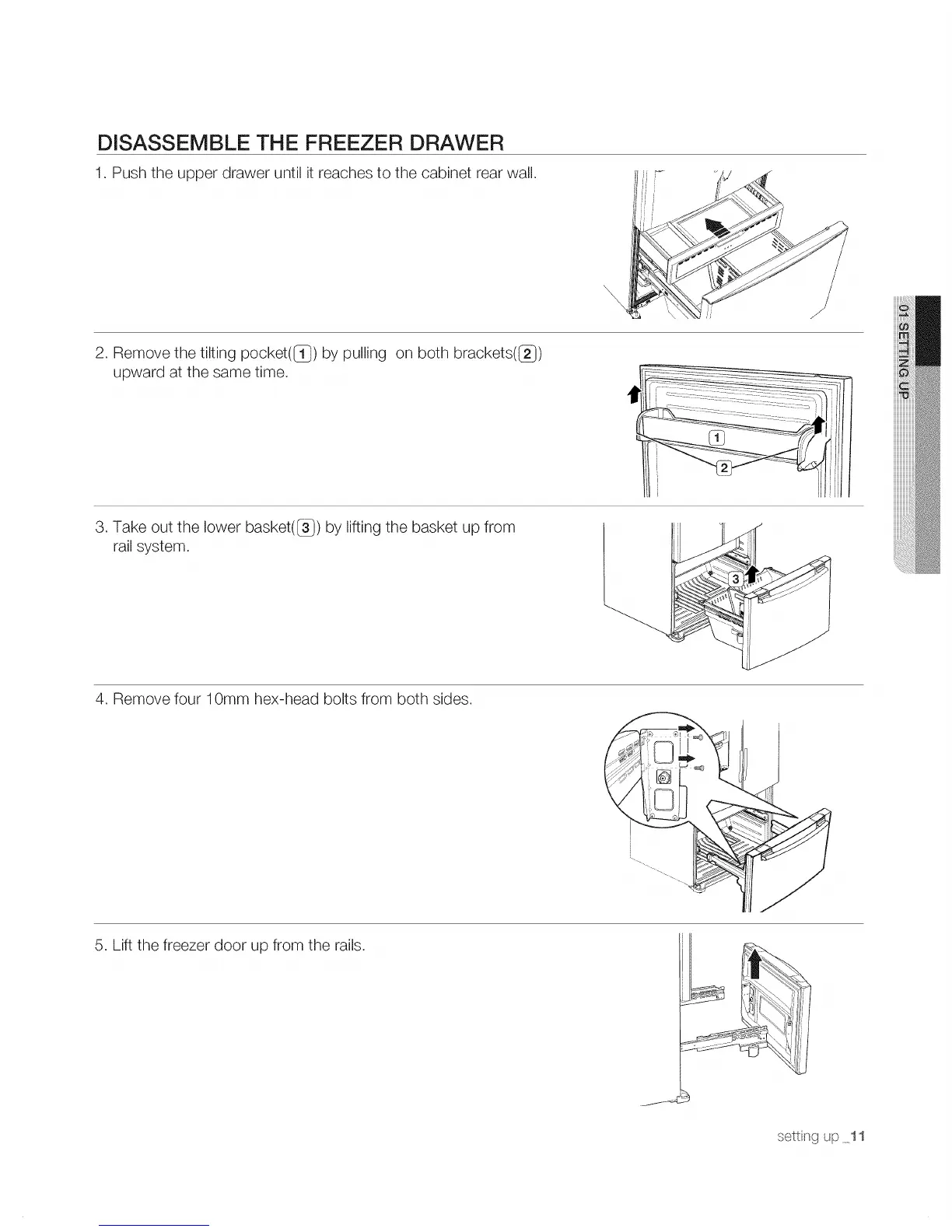

DISASSEMBLE THE FREEZER DRAWER
1. Push the upper drawer until it reaches to the cabinet rear wall.
2. Remove the tilting pocket(IT}) by pulling on both brackets(_})
upward at the same time.
3. Take out the lower basket(_}) by lifting the basket up from
rail system.
4. Remove four 10mm hex-head bolts from both sides.
5. Lift the freezer door up from the rails.
settng up 11
