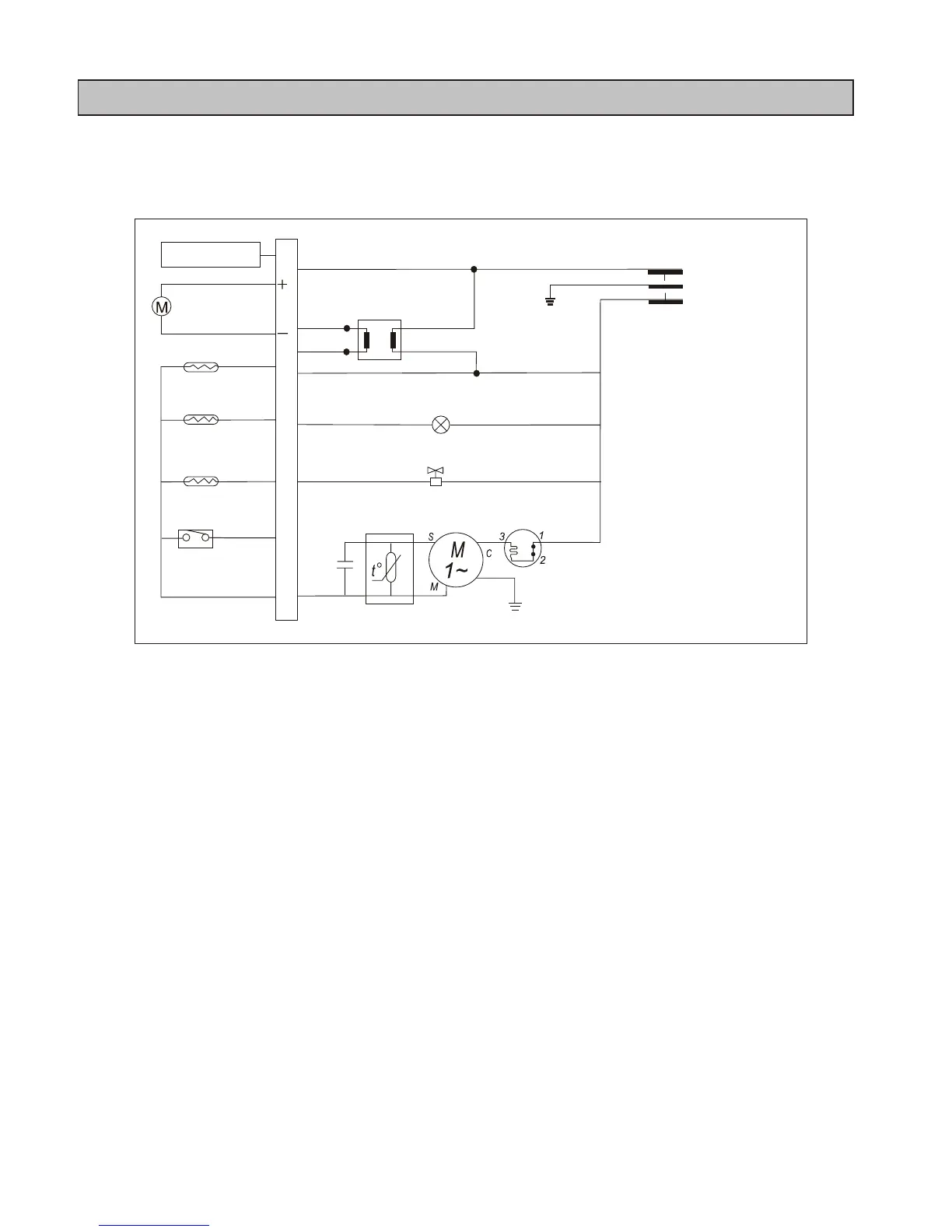

Samsung RL28DATW - Diagram Circuit

6
AC220-240V~/50Hz
MAIN CONTROL PCB
PANEL PCB
RED
FAN MOTOR
BLK
REF-SENSOR
R-EVAP SENSOR
F-SENSOR
DOOR SWITCH
YEL
WHT
BLU
RED
BRN
BLK
BLU
GRY
BRN
TRANSFORMER
GRY
RED
RED
Y/GRN
EARTH
BLU
RED
RED
RED
RED
LAMP
W/BLK
YEL
VALVE-BISTABLE
CAPACTIOR
EARTH
COMPRESSOR
O/L RELAY
P.T.C RELAY
BRN-BROWN
GRY-GRAY
BLU-BLUE
BLK-BLACK
WHT-WHITE
YEL-YELLOW
Y/GRN-YELLOW GREEN
W/BLK-WHITE BLACK
6. DIAGRAM CIRCUIT
