Samsung RS23CB7 Series - Clearance Requirements

English 31
Installation
Clearance

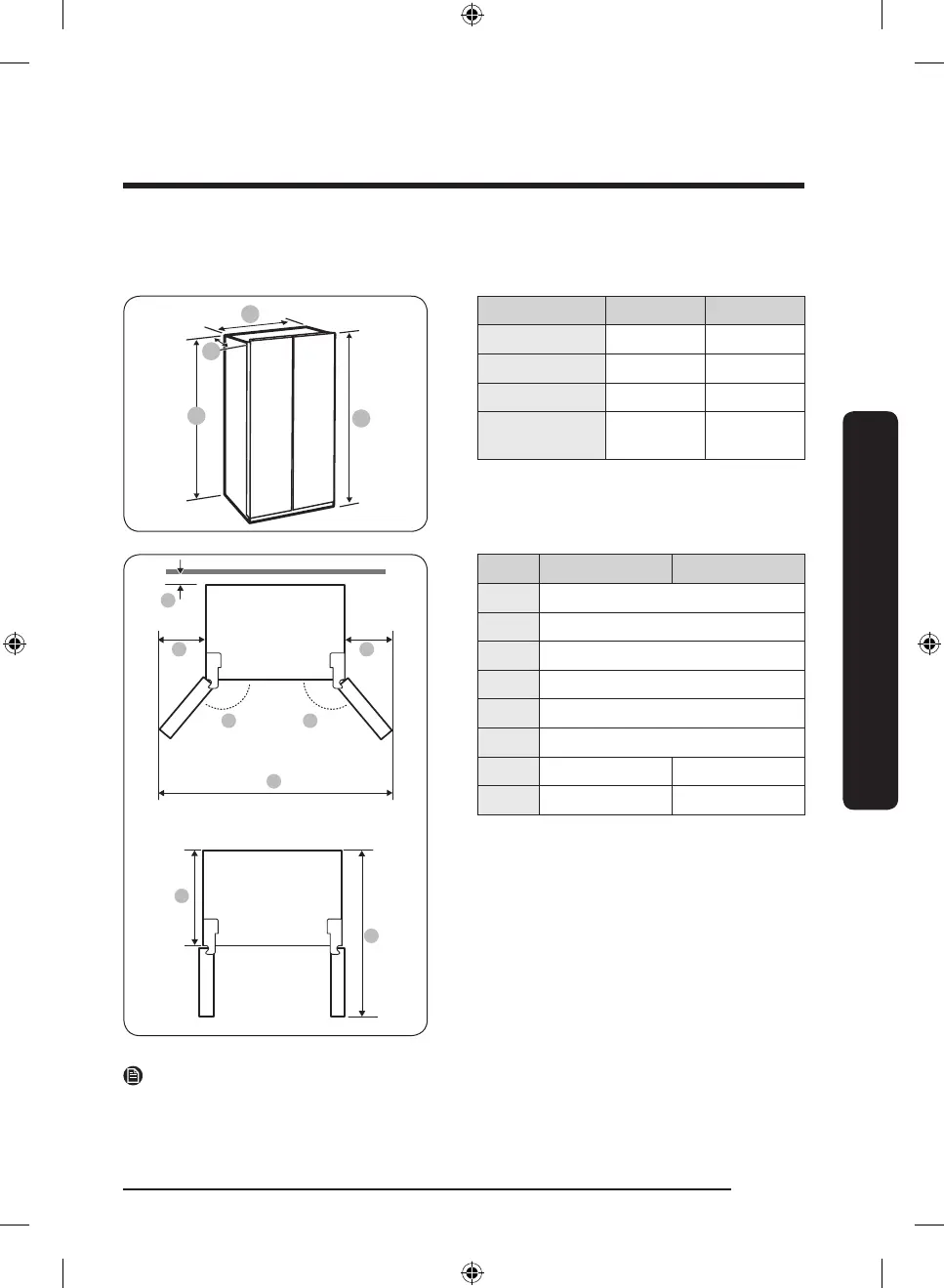

See the following gures and tables for space requirements for installation.
A
B
C
D
Model RS23CB7* RS28CB7*
Depth "A" 732 857
Width “B” 912 912
Height “C” 1744 1744
Overall Height
“D”
1782 1782
(unit: mm)
01
02 03
0504
06
07
08
RS23CB7* RS28CB7*
01 more than 50 mm recommended
02 165˚
03 165˚
04 355 mm
05 461 mm
06 1727 mm
07 610 mm 735 mm
08 1179 mm 1304 mm
NOTE
The measurements in the above table may differ, depending on the measuring method.
