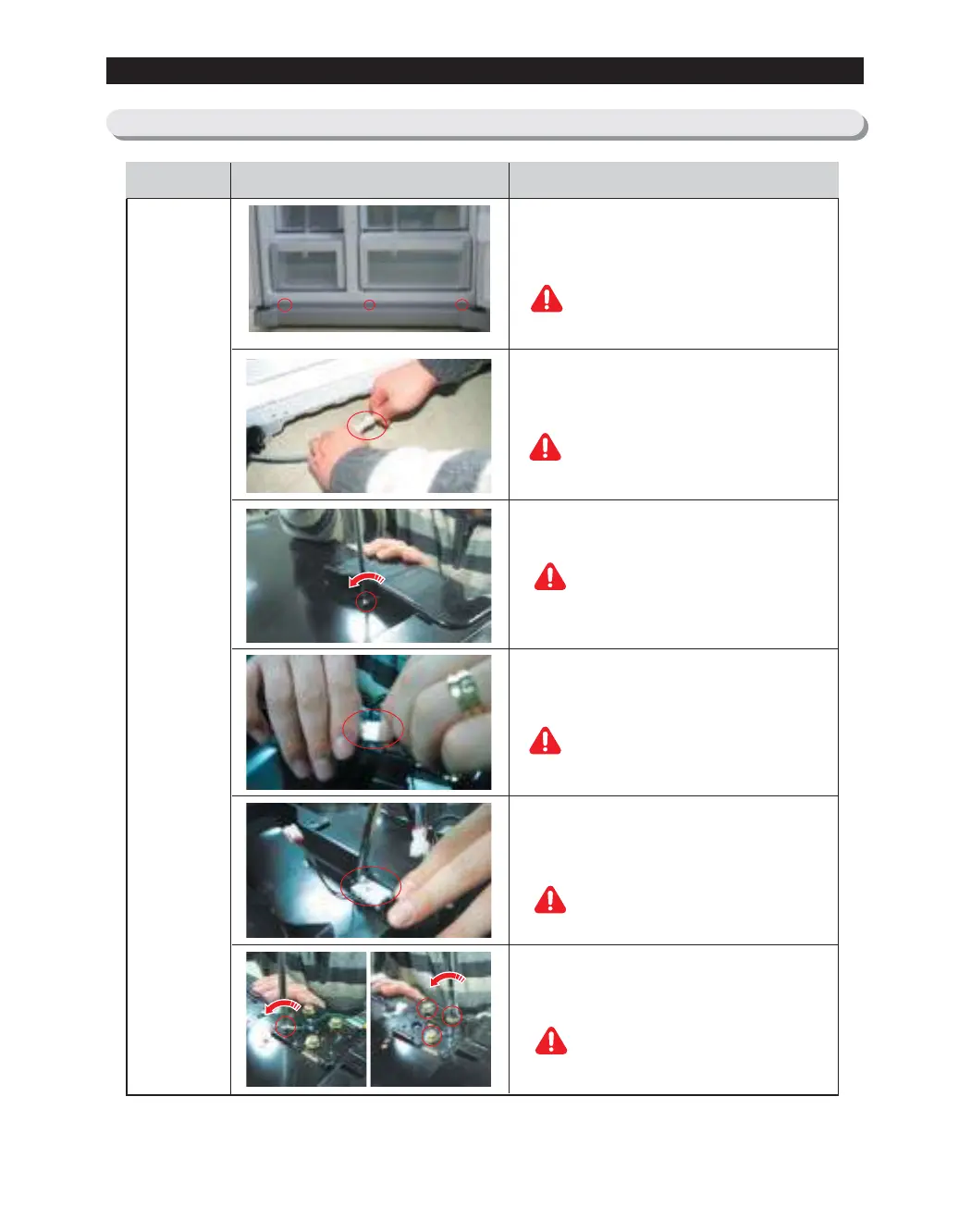

DISASSEMBLY & REASSEMBLY
3-4) Freezer Door
1. With Door opened, remove 3 screws.
PART NAME FIGURE
Freezer
Door
DESCRIPTION
2. Disconnect Valve Fitting with pushing Fixer
Valves on both side.
3. With door closed, remove 1 screw on fixing
Hinge Cover on the top place.
4. Disconnect Micro S/W as shown.
5. Remove Reed S/W using flat head
screwdriver.
6. Remove Earth screw and 3 bolts as shown.
Be careful not to scratch.
Be careful not to scratch.
Be careful of injury.
Be careful not to scratch.
Be careful of injury.
Be careful of injury.
