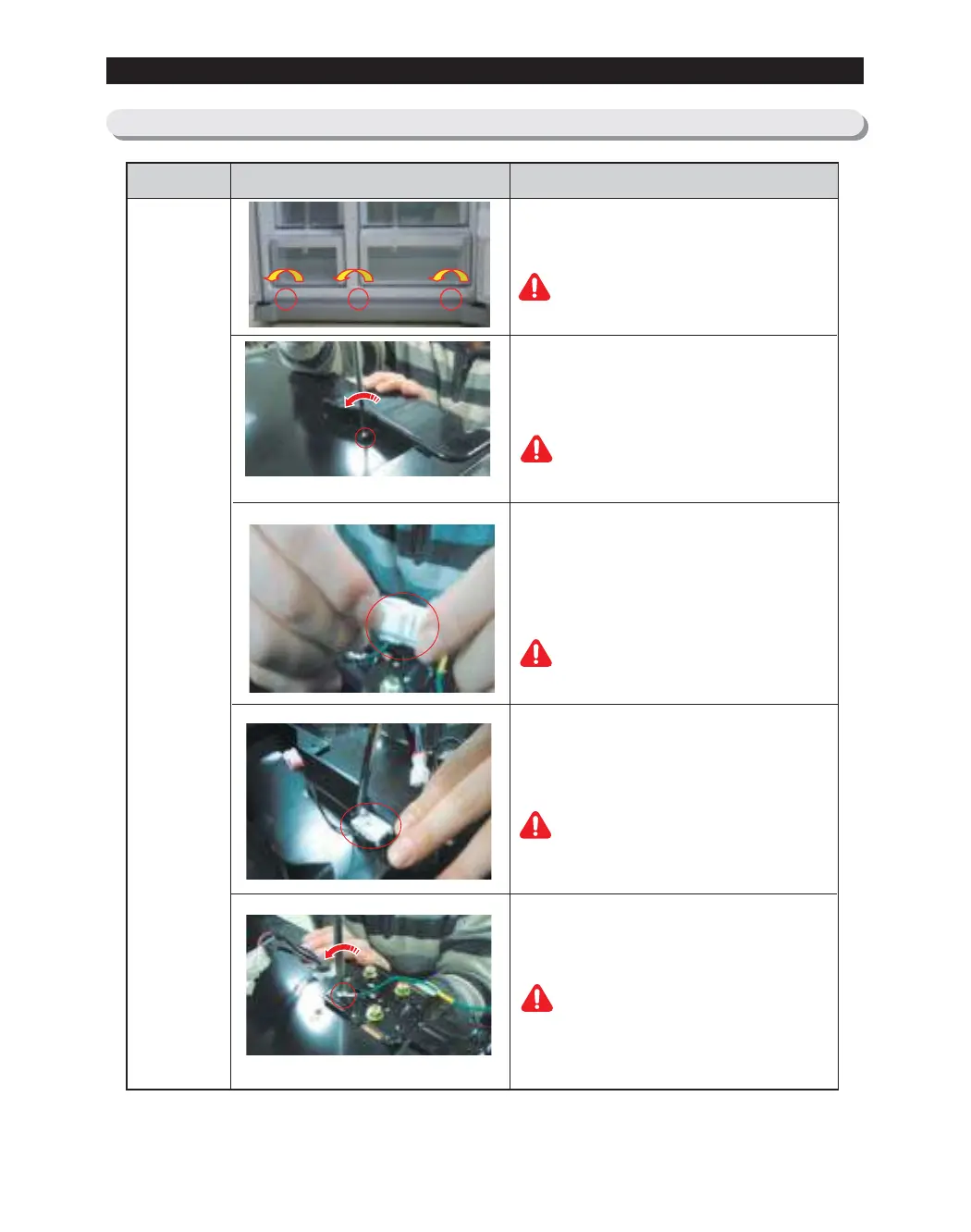

3-6) Fridge Door
With Doors opened, remove 3 screws as shown.
PART NAME FIGURE
Fridge Door
DESCRIPTION
With fridge door closed, remove 1 screw on fixing
Hinge Cover on the top of cabinet.
Disconnect 3 connectors on the top of cabinet
(with Home Bar optional), or 1 connector on the
top of cabinet(without Home Bar optional).
Remove Reed S/W using flat head of screwdriver.
Remove Earth screw and 3 bolts as shown.
33
DISASSEMBLY & REASSEMBLY
Be careful not to scratch.
Be careful of injury.
Be careful not to scratch.
Be careful of injury.
Be careful not to scratch.
To Next Page
