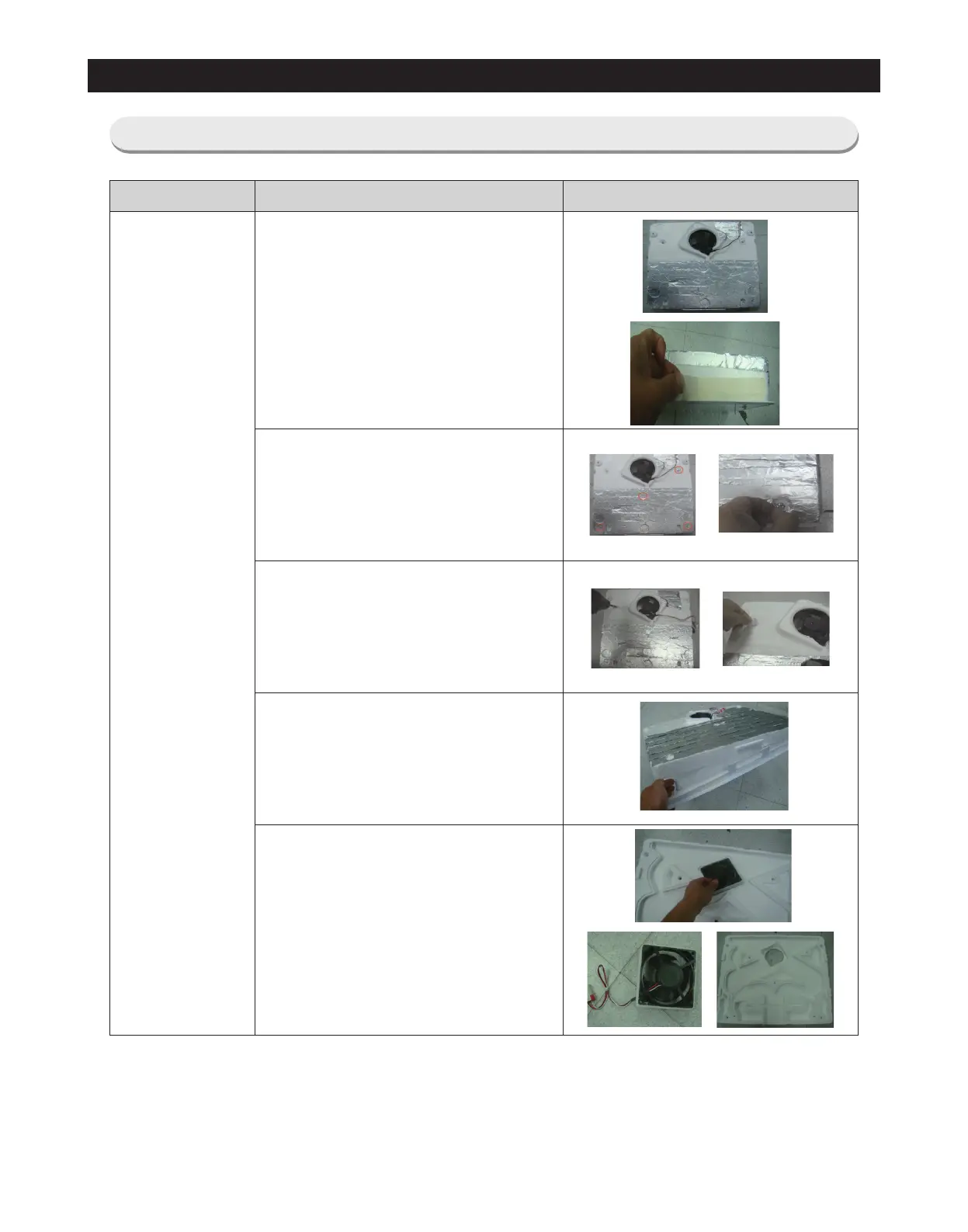

DISASSEMBLY & REASSEMBLY
PART NAME DESCRIPTION FIGURE
MOTOR FAN
1. Remove the masking tape.
2. Remove the AL-tape.
.revird daeh spllihp htiw swercs 5 evomeR .3
Remove the washers.
4. Take o the ins evap rear by pulling it.
5. Take out the MOTOR FAN.
3-11. Disassembling the MOTOR FAN
