3. Disassembly and Assembly
3. Disassembly and Assembly
This section describes the disassembly and reassembly sequences for this monitor.
As this monitor has parts that are sensitive to static electricity, be careful when
handling them.
3-1. Disassembly
Turn the monitor off before beginning the disassembly process.1.
When disassembling the monitor, do not use any metal tools except for the 2.
provided jig.
Disassemble the monitor carefully as directed in the following procedures.3.

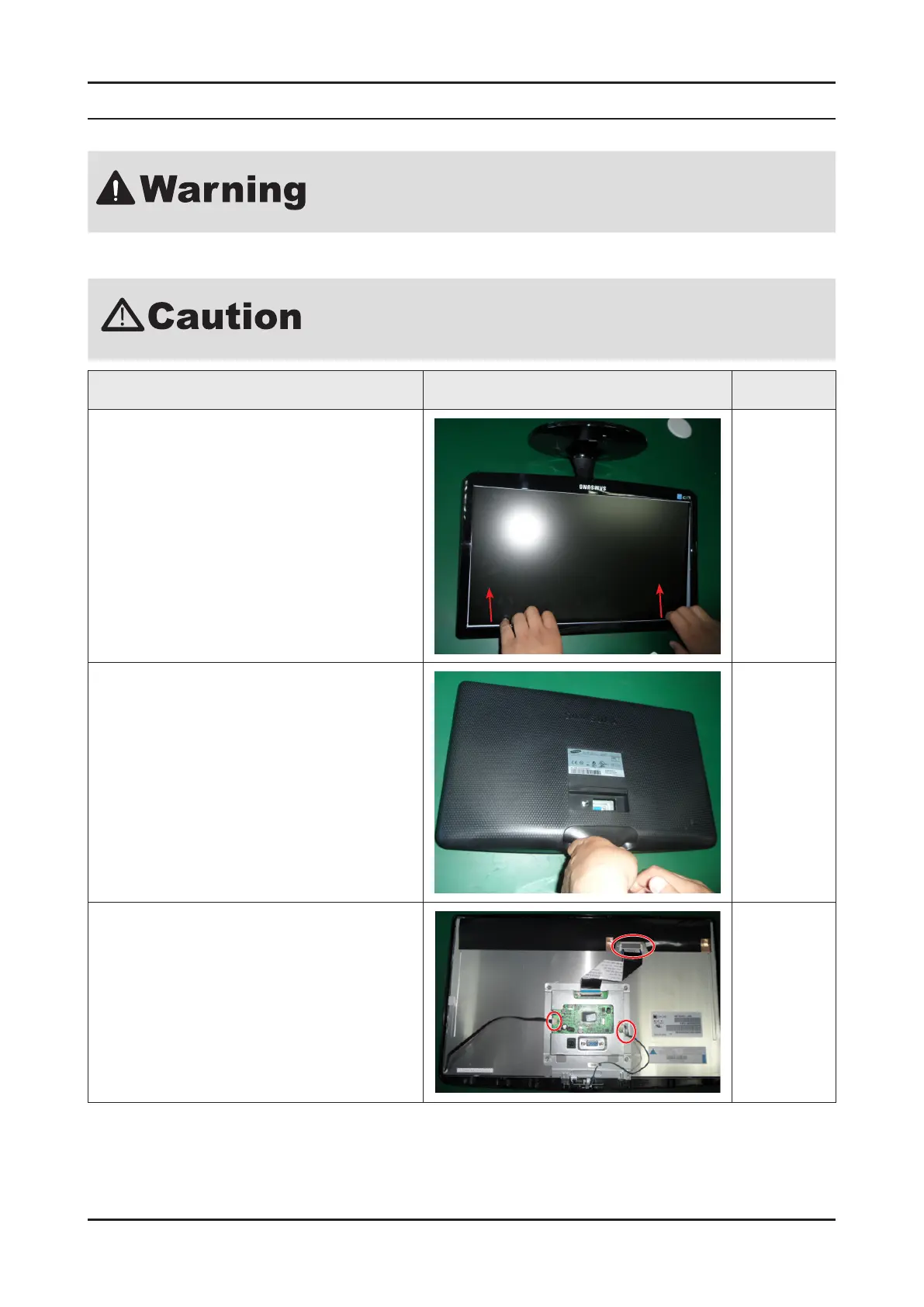

Description Photo Screws
1. Turn the monitor over and insert your hands into
the top of the monitor at the center and separate
the front cover in the direction of the arrow as
shown in the gure.
2. Turn the monitor over again to remove the back
cover.
3. Remove the LVDS, LAMP wire, FUNCTION
cable, and then remove the SHIELD-COVER.
To Next Page
