3-1-6 Ass’y LCD Removal
REMOVE THE LCD ASS’Y
IN THE DIRECTION OF ARROW.
REMOVE 3 SCREWS.
REMOVE THE COVER BOTTOM ASS’Y
IN THE DIRECTION OF ARROW "A".
REMOVE 3 SCREWS.
1
2
3
4
"A"

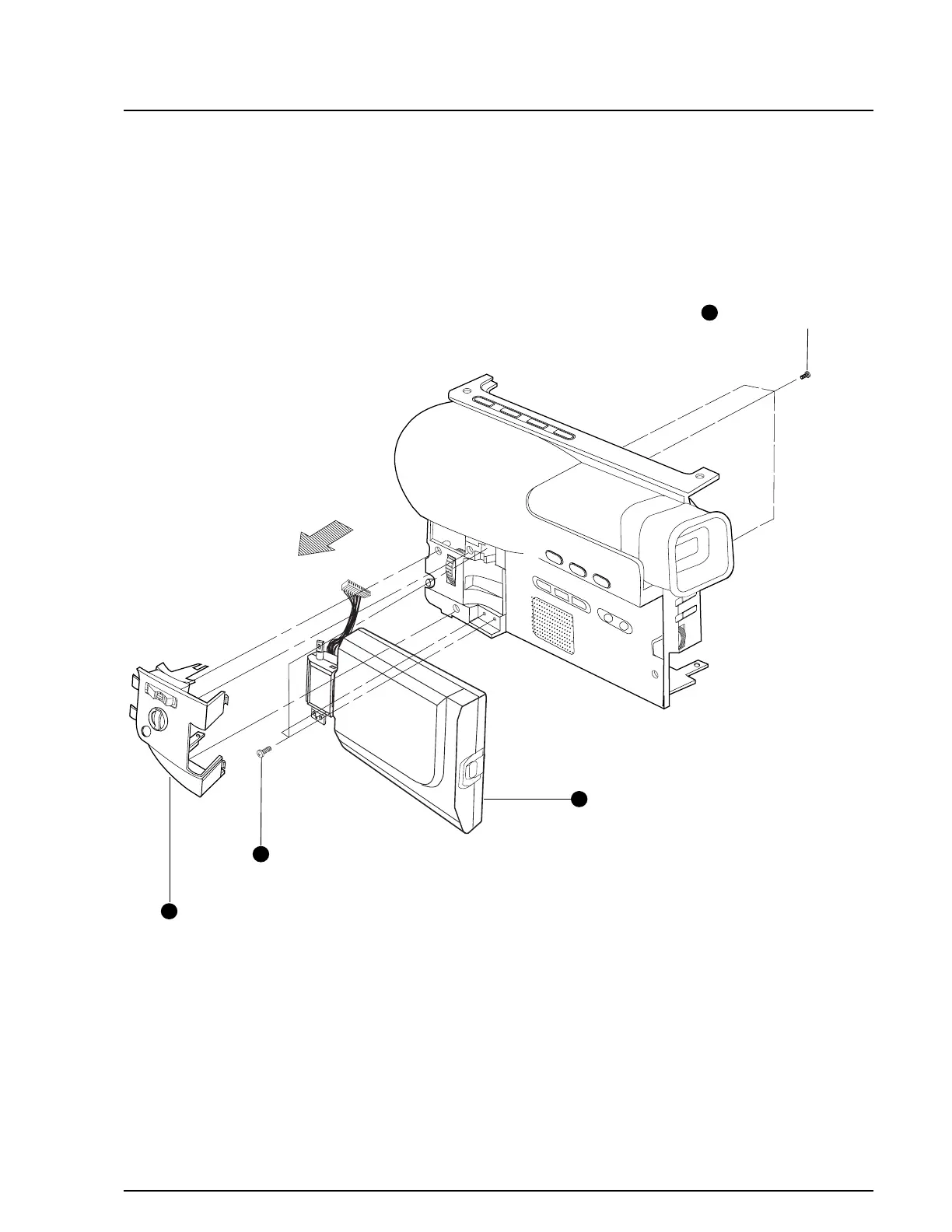

Fig. 3-6 Ass’y LCD Removal
