Disassembly and Reassembly
3-1-9 Ass’y Deck and Main PCB Removal
DISCONNECTOR THE FPC
FROM THE MAIN PCB.
REMOVE THE 2 SCREWS.
DISCONNECT CONNECTOR
FROM THE HEAD-DRUM.
1
PULL OUT THE MAIN POB FROM THE
ASS’Y DECK IN THE DIRATION OF
ARROW "A".
2
"A"

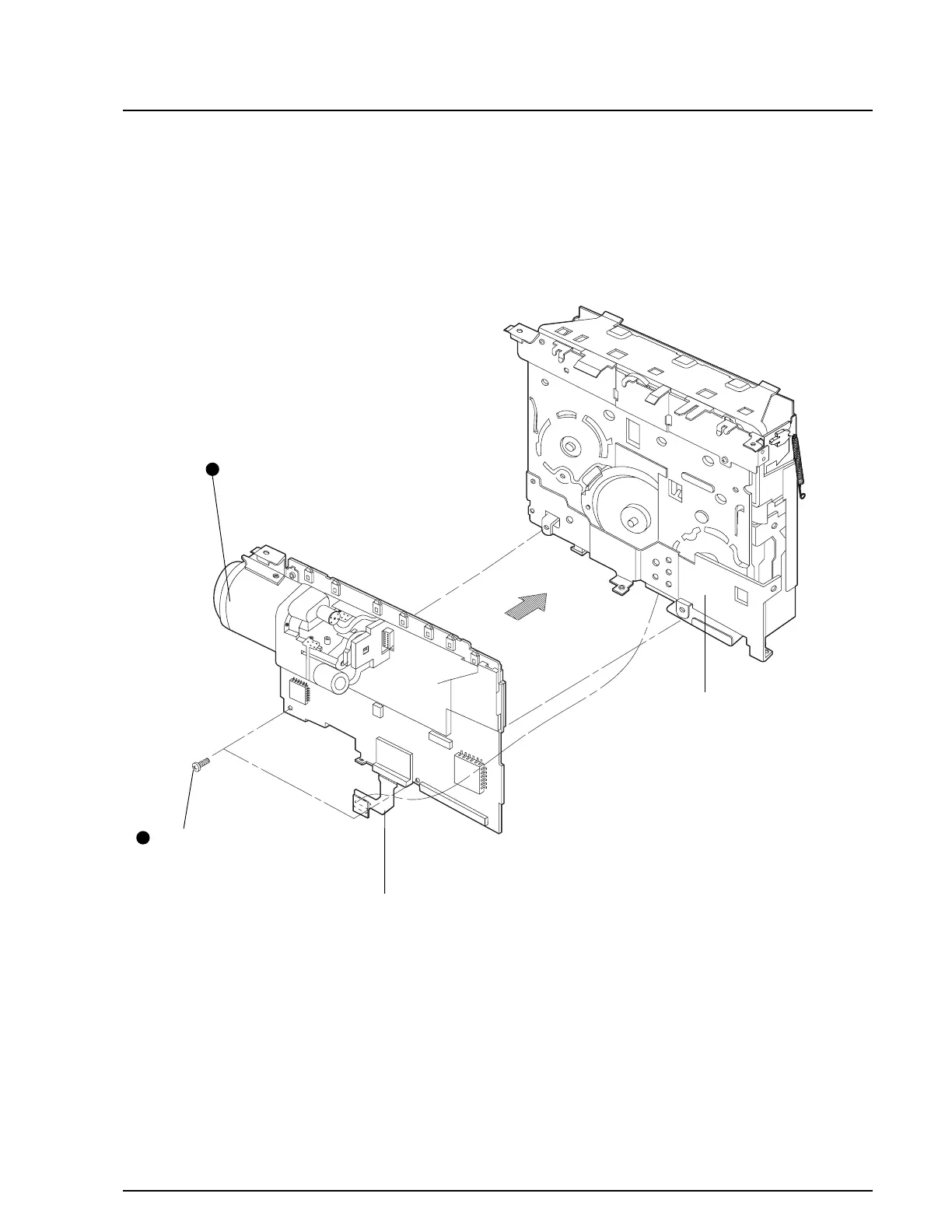

Fig. 3-9 Ass’y Deck and Main PCB Removal
