Alignment and Adjustment
4-2-4 EVF Adjustment
Notes :
1. For EVF adjustment, use the buttons on set and remote controller.
2. After each adjustment step is completed, OSD shows “OK”.
3. EEPROM(ICV02) stores confirmed adjustment value of each adjustment step.
4. After finishing the adjustment, turn power off.

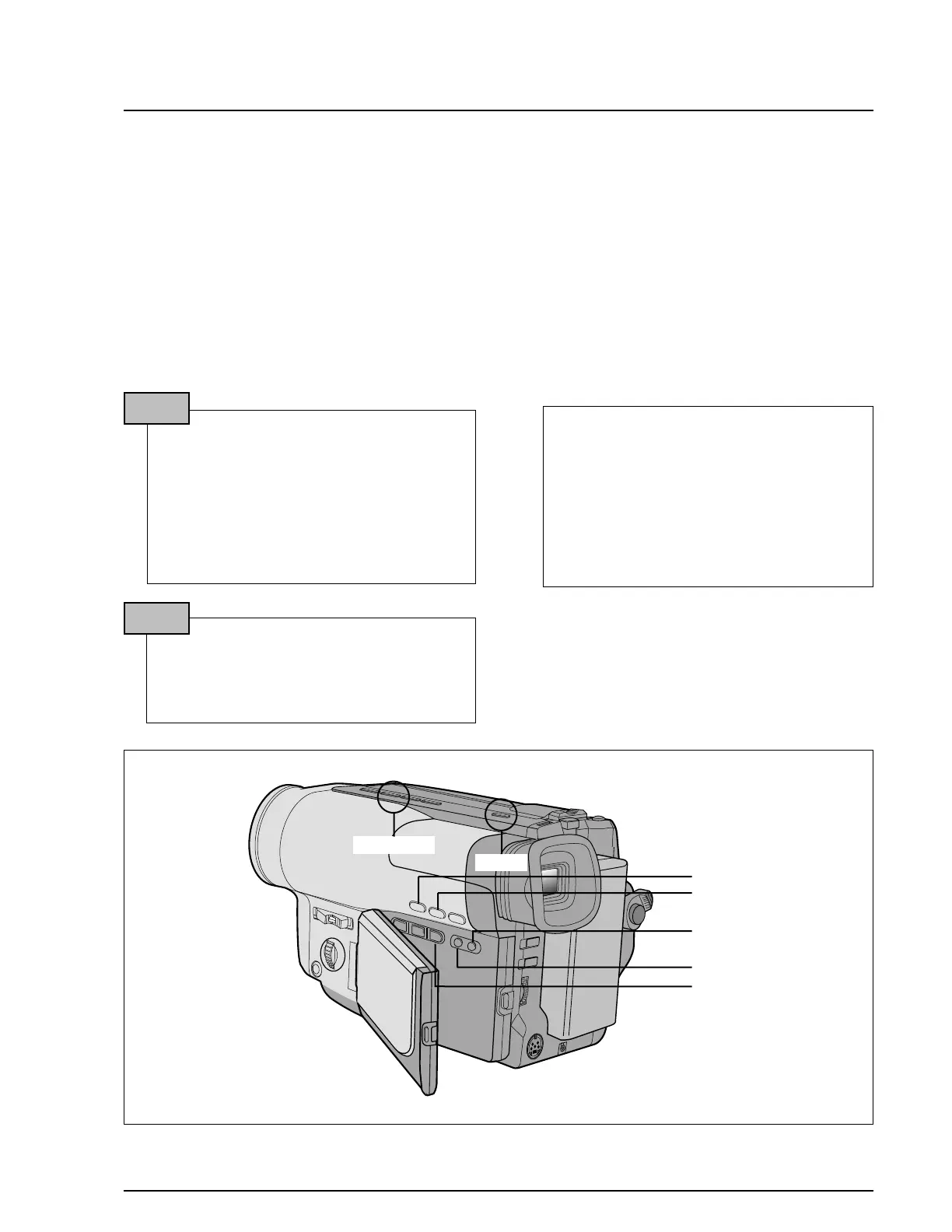

4-2-4 (a) PREPARATION
1. How to get into the EVF adjust mode.
Notes : When XX XX is shown in service adjustment procedures, this indicates variable values.
1. Connect the power source (battery/DC
cable).
2. Set the mode switch of the camcorder to
“PLAYER” position.
3. Connecting the AV JACK of the camcorder
to monitor makes OSD appear.
STEP1
Monitor OSD shows “0 USER BRT EPR XX.
EVR XX”. Then EVF adjustment mode has
been activated successfully.
0 USER BRT.
EPR : XX EVR : XX
Press and hold the “EJECT” button and
“PLAY/STILL” button on the camcorder at
the same time for more than 5 seconds.
STEP2
Notes : "XX" indicates variable values.
EJECT
MODE DOWN
MODE UP
Confirm
DATA UP
DATA DOWN
PLAY/STILL
To Next Page
