3-3
Disassembly and Reassembly

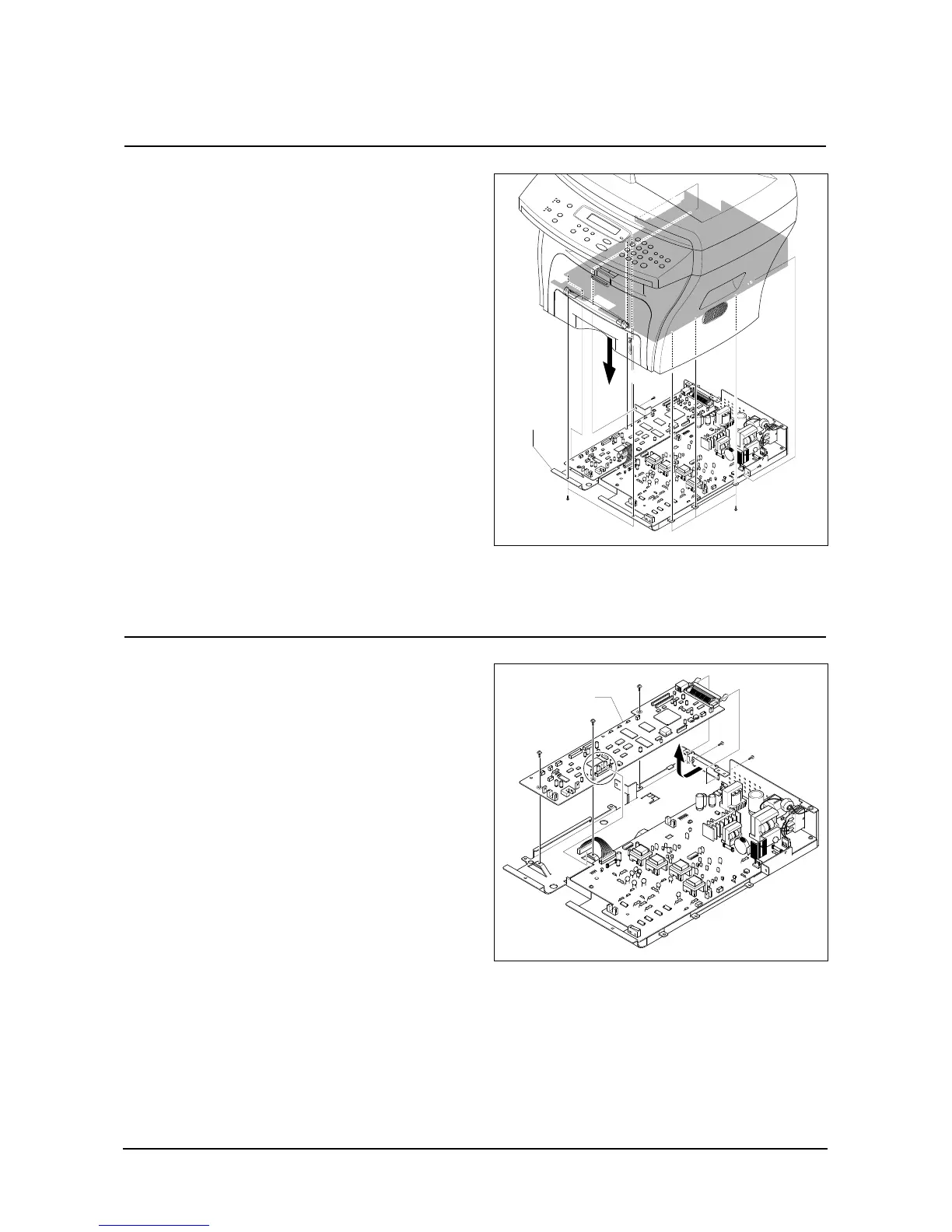

3-3 Engine Shield Ass'y
1. Before you remove the Engine Shield Ass'y, you
should remove:
- Rear Cover (see page 3-2)
2. Remove the ten screws securing the Engine Shield
Ass'y and remove it. Then unplug the all connectors
from the Main PBA and SMPS.
Engine Shield
Ass’y
1. Before you remove the Main PBA, you should
remove:
- Rear Cover (see page 3-2)
- Engine Shield Ass,y (see page 3-3)
2. Unplug the one connector and remove the five screws
securing the Main PBA. Then lift the Main PBA out, as
shown below.
Main PBA
3-4 Main PBA

Samsung SCX-4216F Series Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Fax Modem Speed	33.6 Kbps
Paper Input Capacity	250 sheets
Memory	8 MB
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	4800 x 4800 dpi (enhanced)
Connectivity	USB
