Disassembly and Reassembly
3-5 SMPS

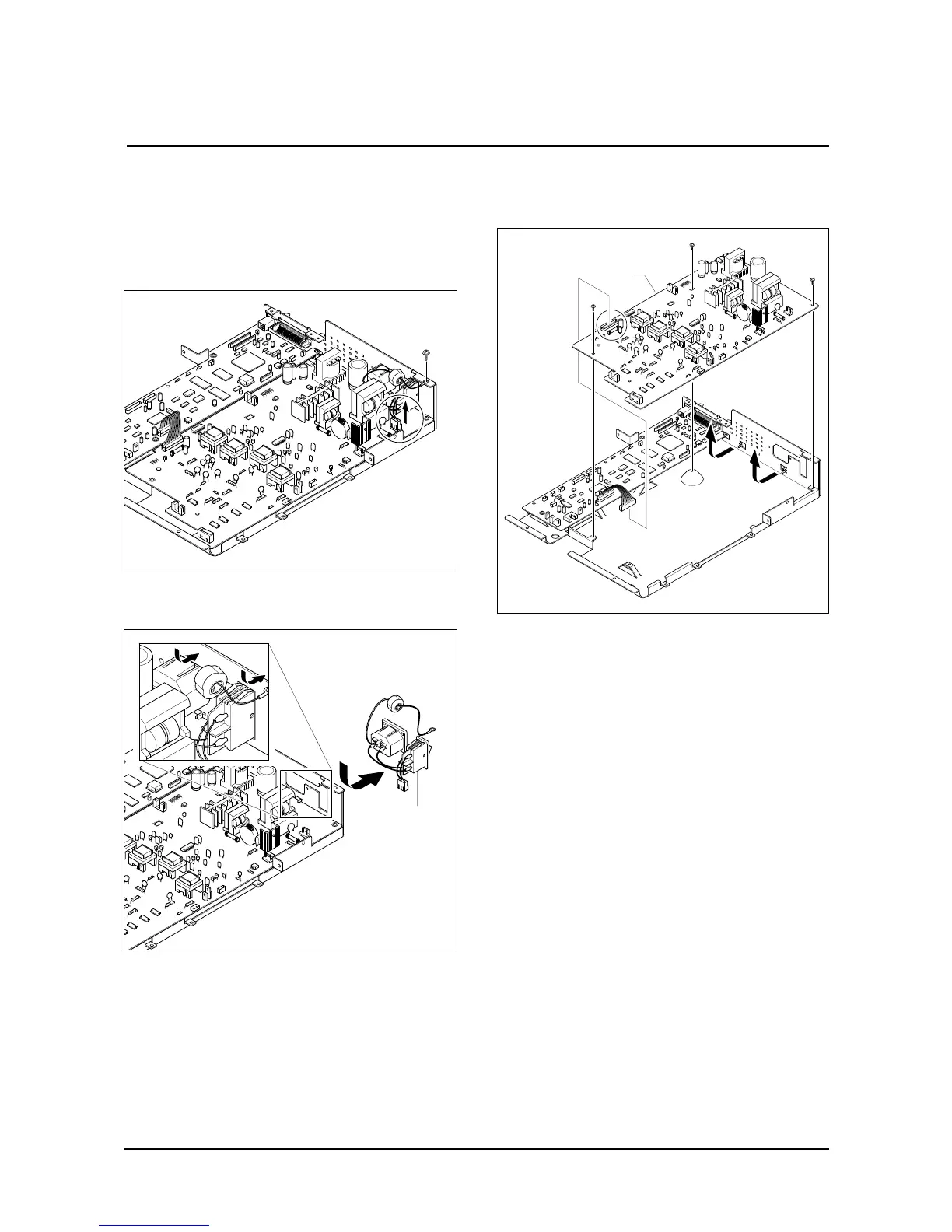

1. Before you remove the SMPS, you should remove:
- Rear Cover (see page 3-2)
- Engine Shield Ass,y (see page 3-3)
2. Unplug the one connector and remove the one screw
securing the Inlet Ass'y
3. Unlatch the Inlet Ass'y and remove it, as shown below.
4. Unplug the one connector and remove the three
screws securing the SMPS. Then lift the SMPS out,
as shown below.
Inlet Ass'y
SMPS

Samsung SCX-4216F Series Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Fax Modem Speed	33.6 Kbps
Paper Input Capacity	250 sheets
Memory	8 MB
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	4800 x 4800 dpi (enhanced)
Connectivity	USB
