Samsung Electronics
3-5
Disassembly and Reassembly

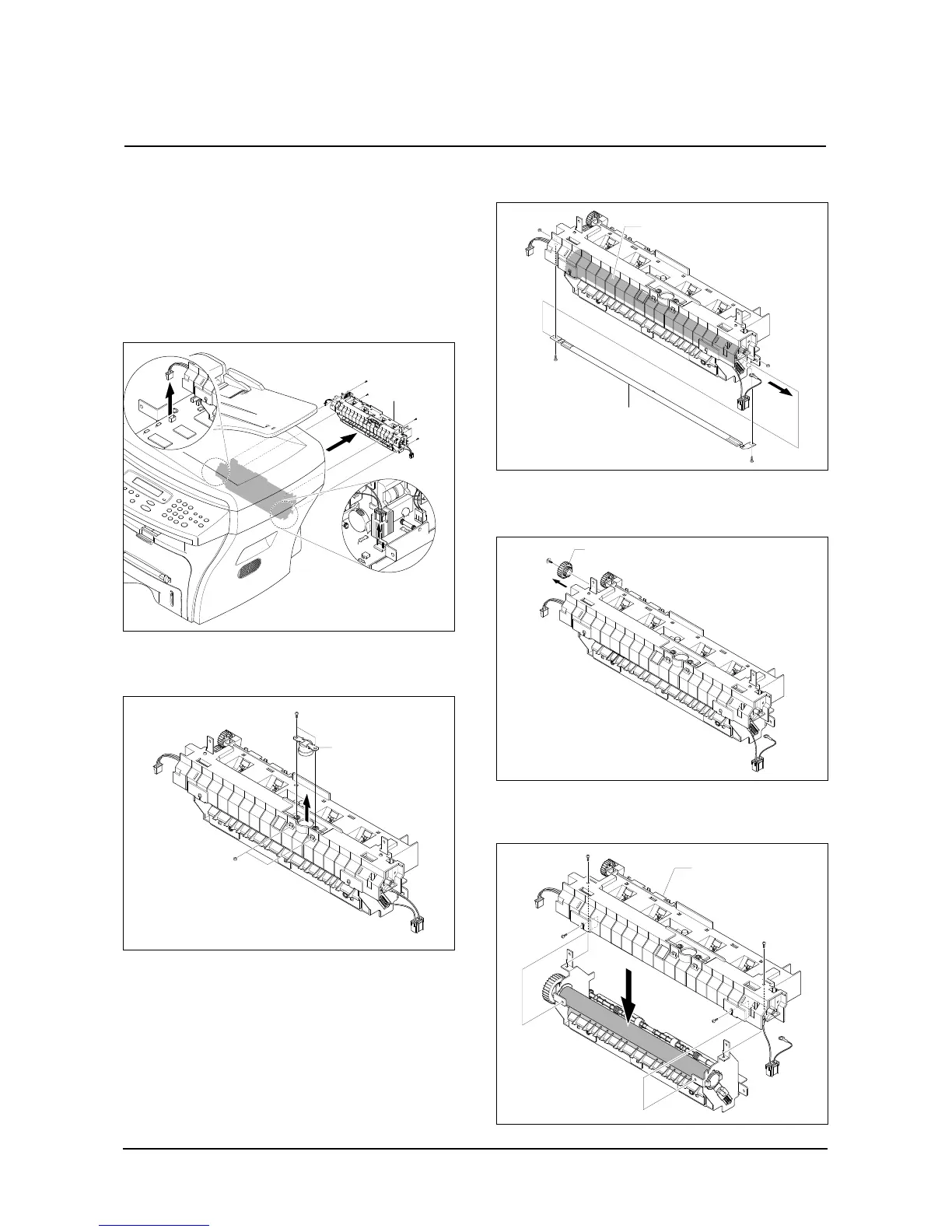

3-6 Fuser Ass'y
1. Before you remove the Fuser Ass'y, you should
remove:
- Rear Cover (see page 3-2)
- Engine Shield Ass,y (see page 3-3)
2. Unplug the two connectors from the Main PBA and
SMPS, as shown below. Then remove the four
screws securing the Fuser Ass'y and remove it.
3. Remove the two screws securing the Thermostat.
Then lift the Thermostat out
4. Remove the two screws securing the Halogen Lamp.
Then take out the Halogen Lamp from the Heat
5. Remove the one screw securing the Idle Gear and
remove it.
6. Remove the four screws securing the Fuser Cover
and remove it, as shown below.
Fuser Ass'y
Thermostat
Halogen Lamp
Heat Roller
Idle Gear
Fuser Cover
