3-6

Samsung Electronics

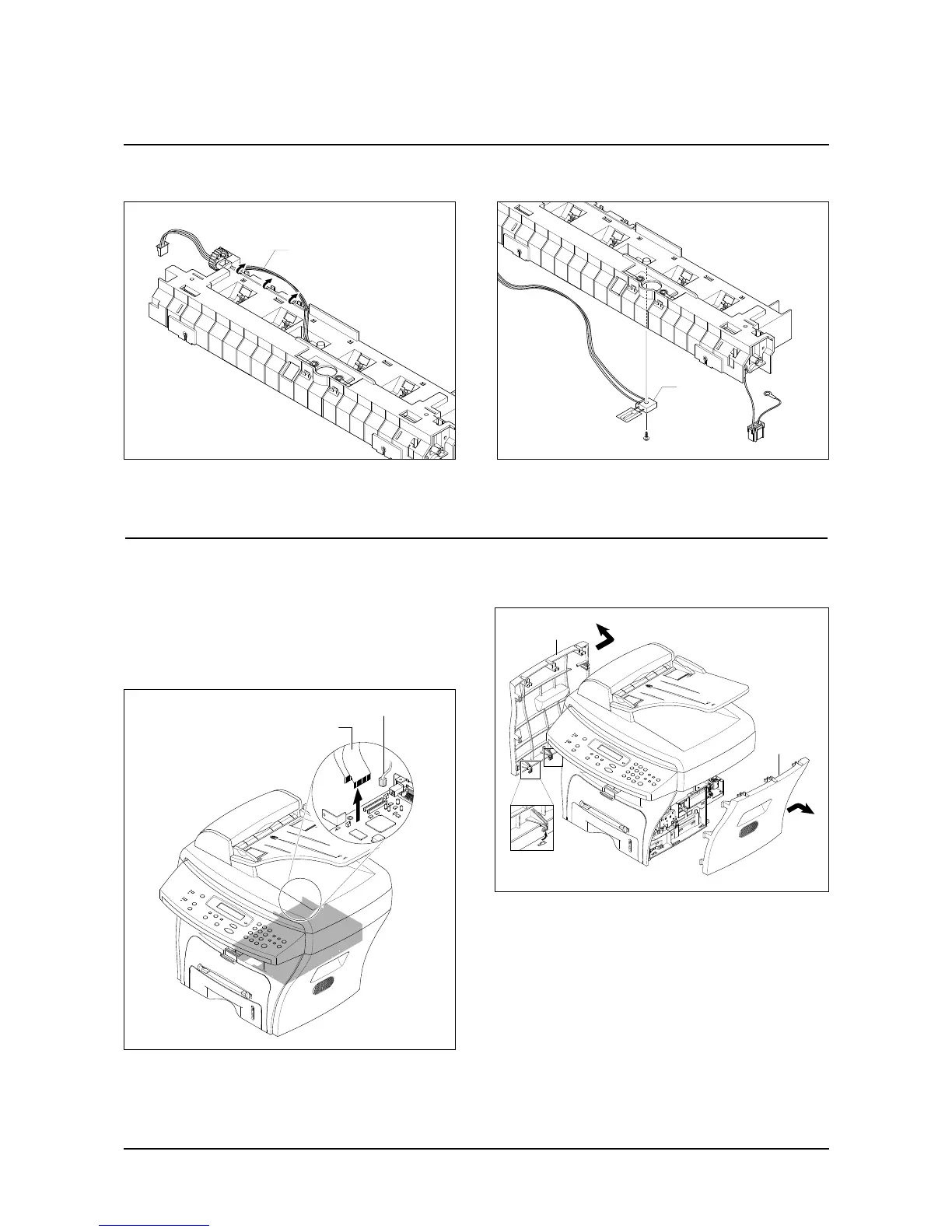

Disassembly and Reassembly

Thermister Harness

Thermister

3-7 Side Cover (LH, RH)

1. Before you remove the Side Cover (LH, RH), you

should remove:

- Rear Cover (see page 3-2)

2. Unplug the FPC Cables and Speaker Harness, as

shown below.

Note : You should connector remove the FPC Cable

vertically to avoid the FPC cable pin damage.

3. Lift the LH and RH Side Cover out in the direction of

arrow.

Side Cover(RH)

Side Cover(LH)

7. Unwrap the Thermister Harness, as shown below. 8. Remove the one screw securing the Thermister and

remove it, as shown below.

FPC cable

Speaker Harness
