Disassembly and Reassembly
3-11 Exit Roller
1. Before you remove the Exit Roller, you should
remove:
- Rear Cover (see page 3-2)
- Scanner Ass’y (see page 3-7)
- Side Cover (LH, RH) (see page 3-6)

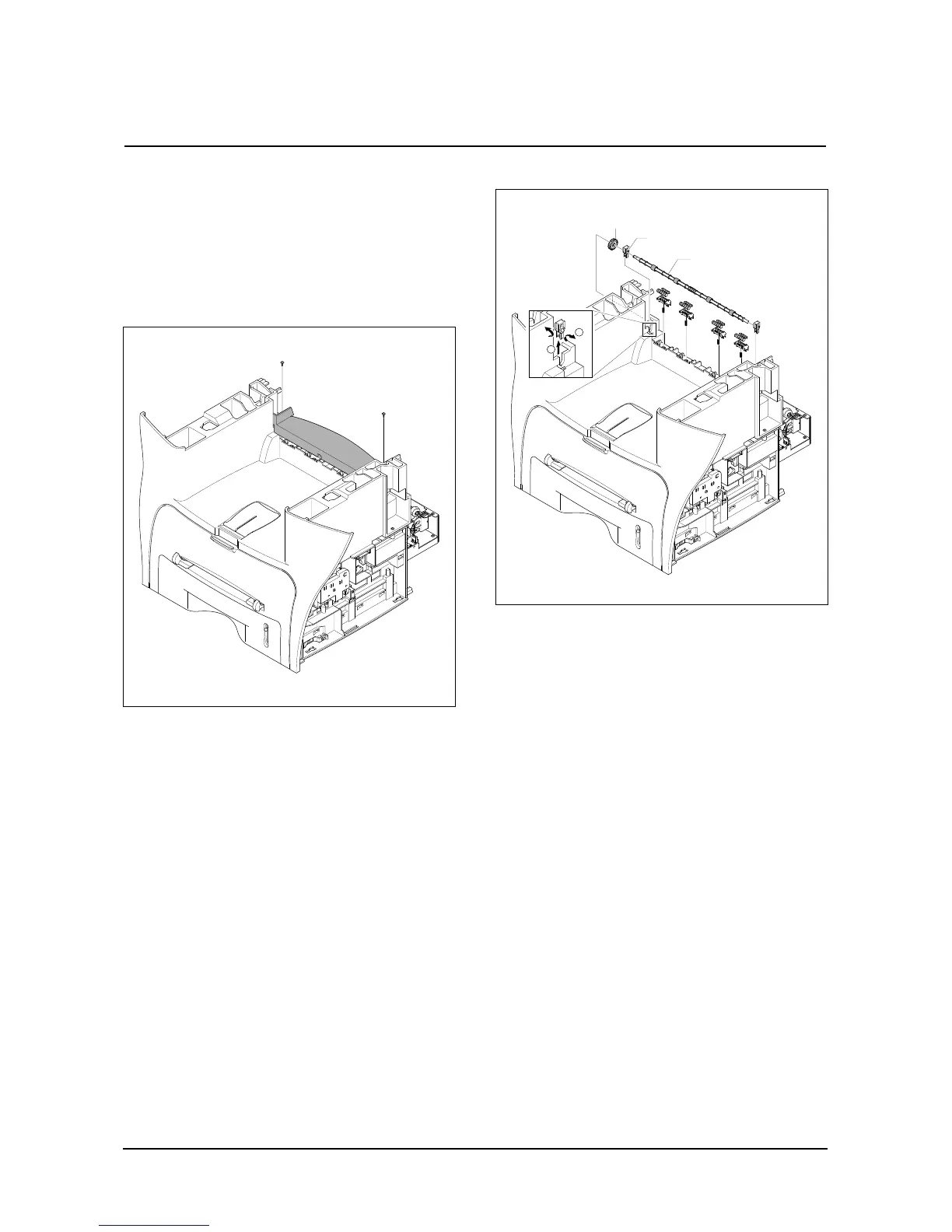

2. Remove the two screws securing the Cover-Rear
Upper, as shown below.
3. Remove the Exit Gear and Bearing, as shown below.
Exit Gear
1
Bearing
Exit Roller
2
