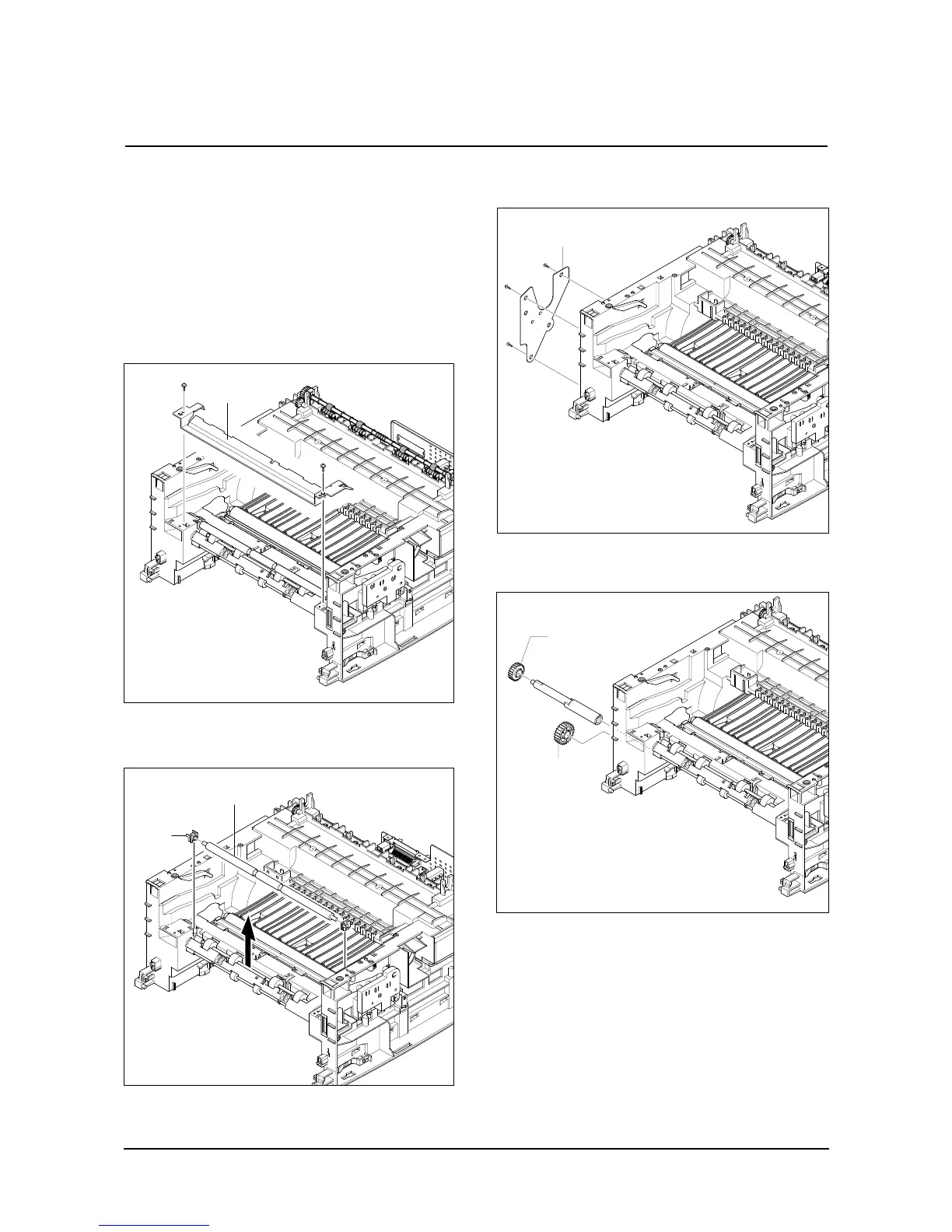

3-18 Feed Ass'y

1. Before you remove the Feed Ass'y, you should

remove:

- Rear Cover (see page 3-2)

- Side Cover (LH, RH) (see page 3-6)

- Scanner Ass’y (see page 3-7)

- Front Cover (see page 3-14)

- Middle Cover (see page 3-15)

2. Remove the two screws securing the Guide Paper

and remove it.

3. Pull up the Feed Idle Bush and Feed Idle Shaft, as

shown below.

4. Remove the three screws securing the Feed Bracket

and remove it.

5. Remove the Idle Gear and Feed Gear2.

3-18

Samsung Electronics

Disassembly and Reassembly

Guide paper

Bush

Feed Idle

Shaft

Feed Bracket

Feed Gear2

Idle Gear
