Samsung Electronics

3-17

Disassembly and Reassembly

1. Before you remove the Transfer Ass'y, you should

remove:

- Rear Cover (see page 3-2)

- Side Cover (LH, RH) (see page 3-6)

- Scanner Ass’y (see page 3-7)

- Front Cover (see page 3-14)

- Middle Cover (see page 3-15)

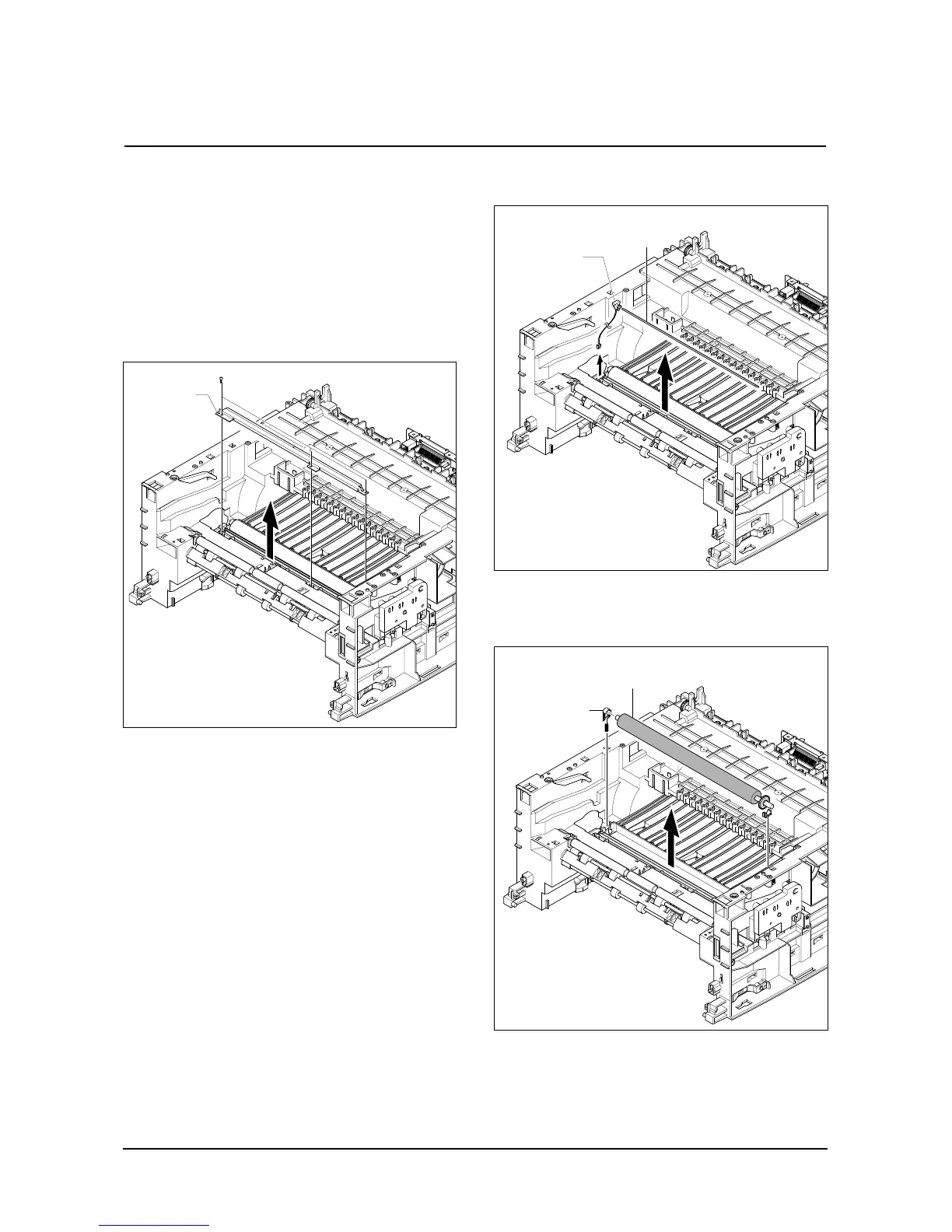

2. Remove the three screws securing the Transfer Earth

and remove it.

3. Unplug the PTL Holder connector, then remove the

PTL Holder and PTL Lens, as shown below.

4. Unlatch the Bush and remove it. Then lift the Transfer

Roller out, as shown below.

Transfer

Earth

PTL

Holder

PTL

Lens

Transfer

Roller

Bush

3-17 Transfer Ass'y
