Introduction
1.2
Understanding Component
Locations

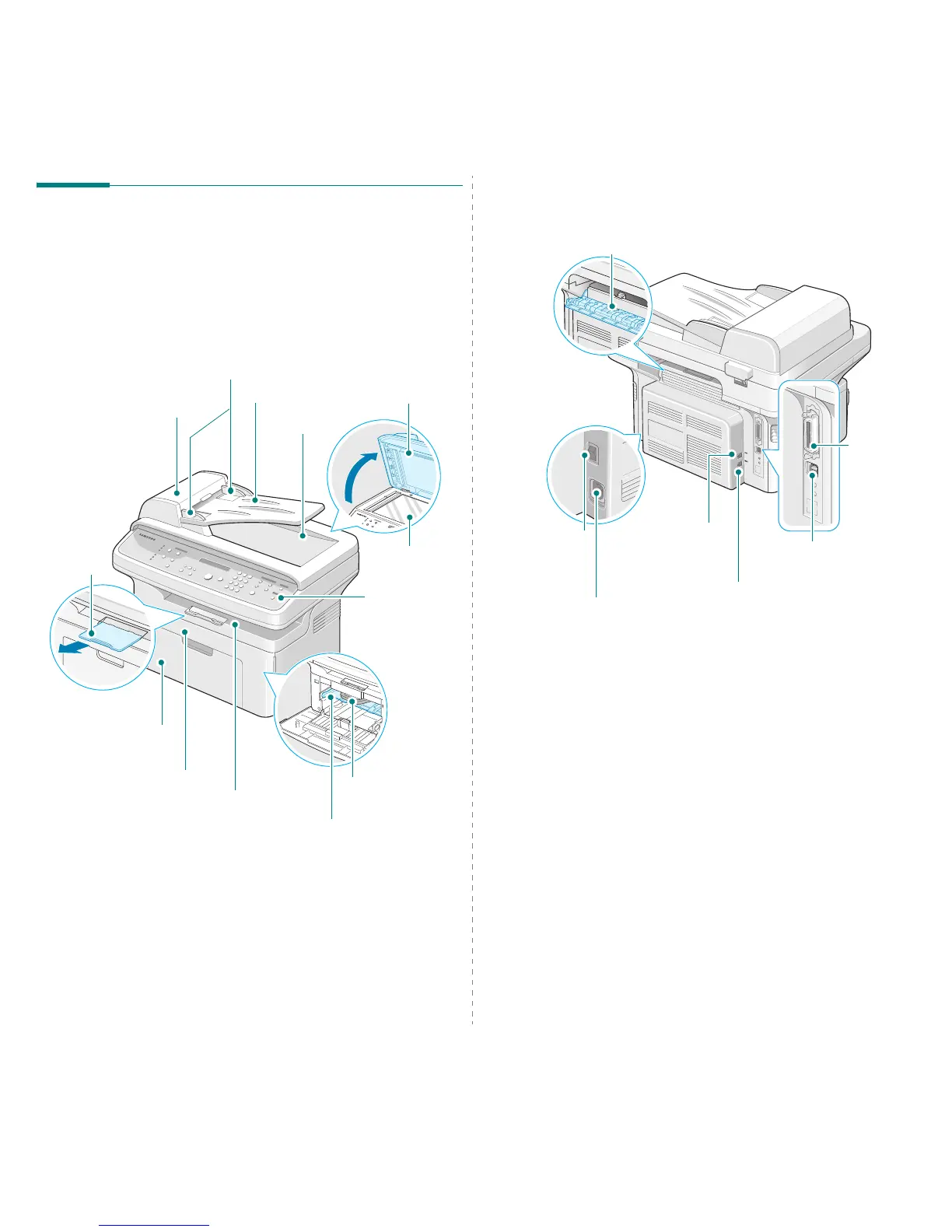

These are the main components of your machine:
Front View
Document
Guides
Document
Input Tray
Document
Cover
Document Glass
Automatic
Document Feeder
Control Panel
(SCX-4521F/
SCX-4521FR:
see page 1.3.
SCX-4321: see
page 1.3.)
Front Door
Output Tray
(Face Down)
Paper Input
Tray
Paper
Output
Extension
Document
Output Tray
Toner
Cartridge
Manual Tray
The figure above shows an SCX-4521F.
Rear View
Line Jack
(Only for SCX-4521F/ SCX-
4521FR)
The figure above shows an SCX-4521F.
Rear Cover
Power
Switch
AC Power Cord
Connector
EXT. Jack*
(Only for SCX-4521F/
SCX-4521FR)
USB
Connector
Parallel
Connector
* If your country has a different telephone connection system,
this socket may be blocked.
