Samsung SDC-9443BC - Connection and Protection; Protection of Cable from Water; Connecting the DVR

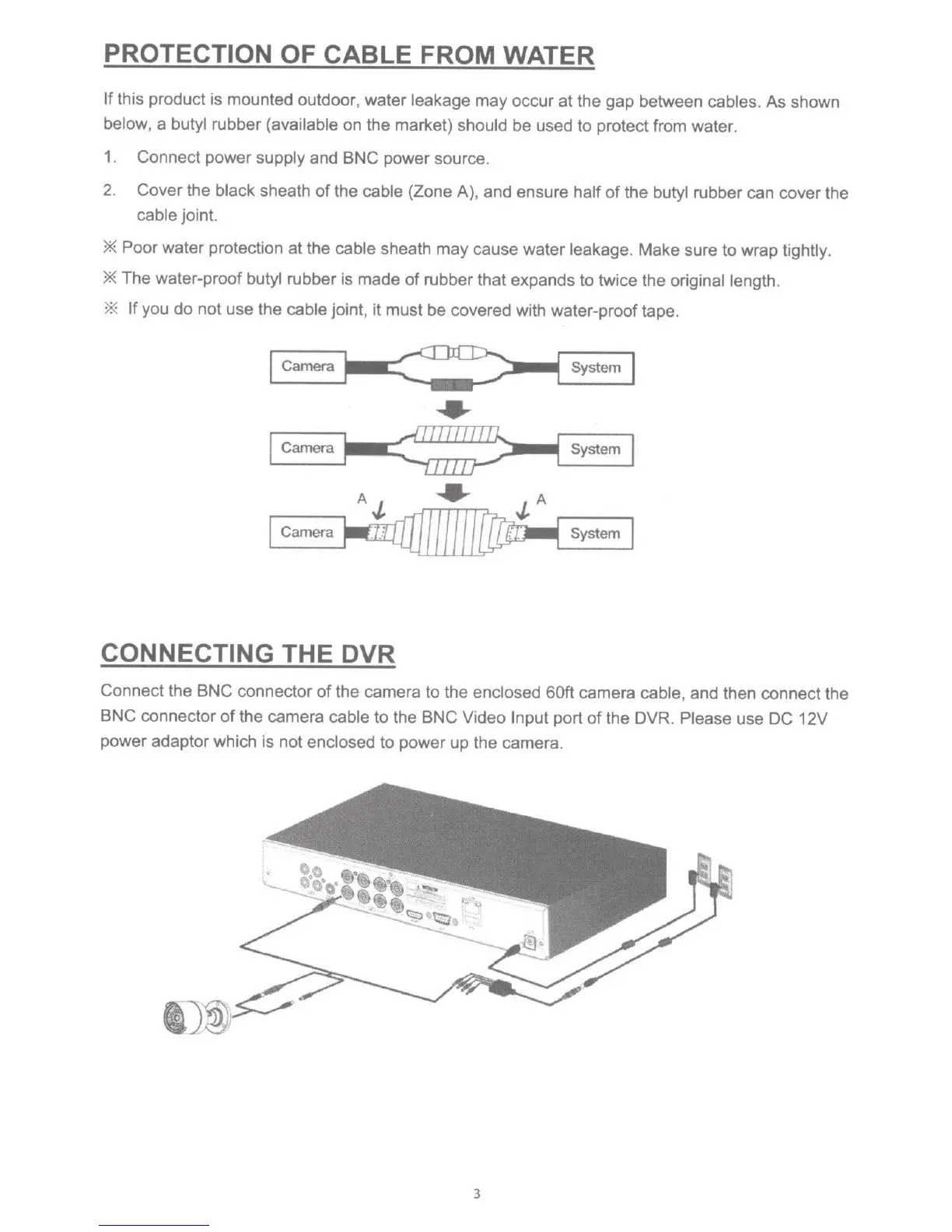

PROTECTION OF CABLE FROM WATER
If this product is mounted outdoor, water
leakage
may occur at the gap between
cables.
As shown
below, a
butyl
rubber
(available
on the market}
should
be used to protect from water.
1. Connect power
supply
and BNC power source.
2. Cover the black
sheath
of
the
cable (Zone
A}, and ensure
half
of
the
butyl
rubber can cover the
cable
joint.
* Poor
water protection at the
cable
sheath may cause water
leakage. Make sure to wrap
tightly.
* The
water-proof
butyl
rubber is made
of
rubber that expands to twice the
original length.
*
If
you
do
not use the
cable
joint, it must be covered with water-proof tape.
CONNECTING
THE DVR
Connect the BNC connector
of
the camera to the
enclosed 60ft camera
cable,
and then connect the
BNC connector
of
the camera
cable
to the BNC Video Input port
of
the DVR.
Please use DC 12V
power adaptor which is not
enclosed to power up the camera.
3
