Samsung SF-335T Repair Manual

CIRCUIT DESCRIPTION
3.1.6 SIXSHOOTOR ASIC
3.1.6.1 General Information
The Six-shooter ASIC exists for operating the Ballast Resistor and TIJ 2.0 Inkjet Head, and it has 4 head address HA [3-0],
input of the 6 strobe nSTB [5-0], and output of the 48 nozzle control.

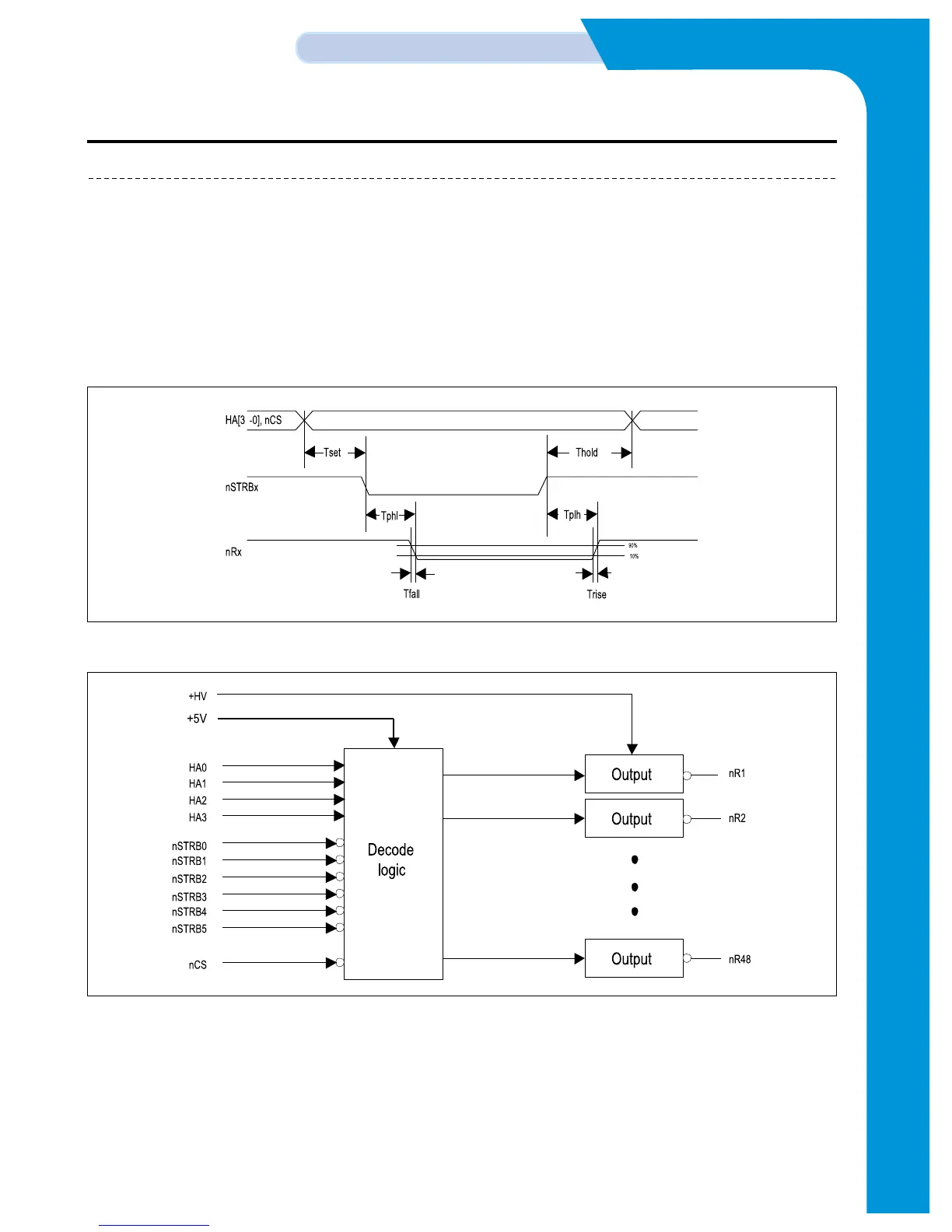

3.1.6.2 OPERATE TIMING AND INTERNAL BLOCK DIAGRAM
<figure 19. SIXSHOOTER Power Driver Driver Diagram>
<figure 20. SIXSHOOTER inside Block diagram>
