7-11. Camera part

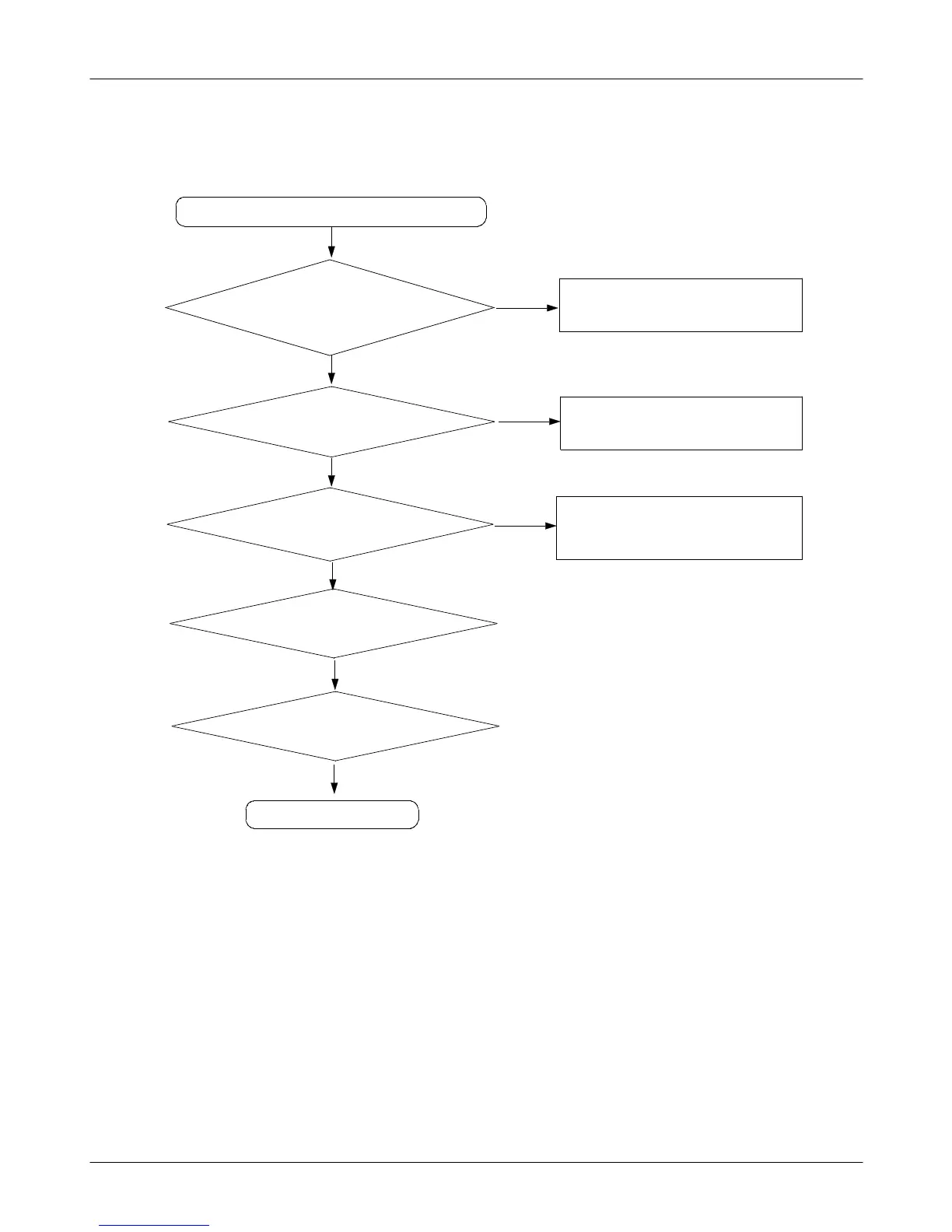

"Camera" function does not work
Yes
No
Reconnect the camera module
Check the Camera
connector on
LCD Module
Yes
CN703 pin 41 = H ?
No
Reconnect CN703
Yes
C315 = 26MHz?
No
Check U302(pin2, pin4) related to
26Mhz
and R315
Yes
Is there another problem?
END
Replace the camera
module
Yes
To Next Page
