Samsung SH24TAB5 - 9. Wiring Diagrams; 9-1 Indoor Unit Wiring Diagrams

Samsung Electronics
9-1
9. Wiring Diagrams
9-1 Indoor Unit

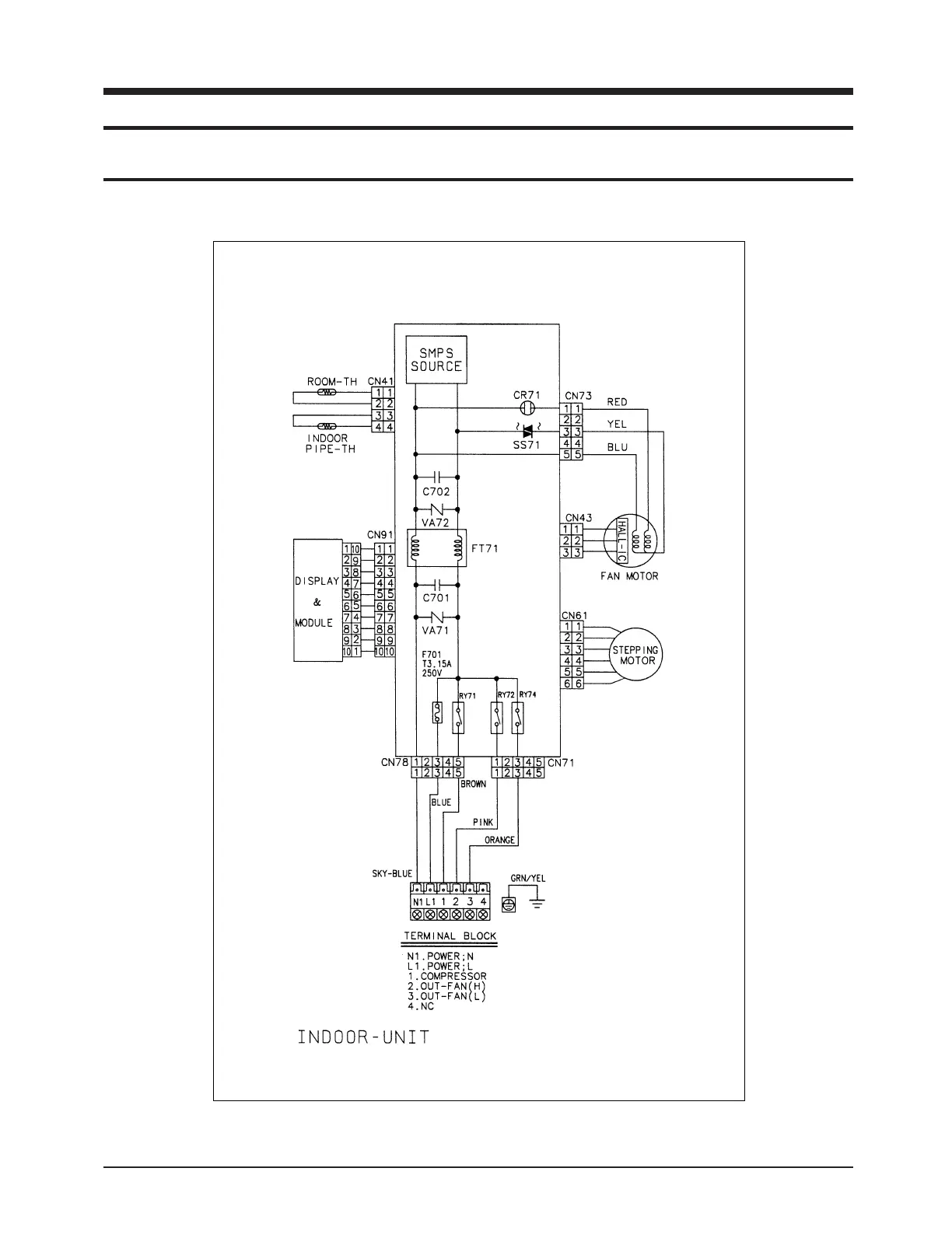

■ AST24A(B)5(6)RE/B, AST18A(B)9(0)RE/B, SC24TA(B)5
15-00115A(3)-WD 3/19/01 2:45 PM Page 9-1
