Samsung SND-6084R - Device Connection Diagrams

English _41
● INSTALLATION & CONNECTION

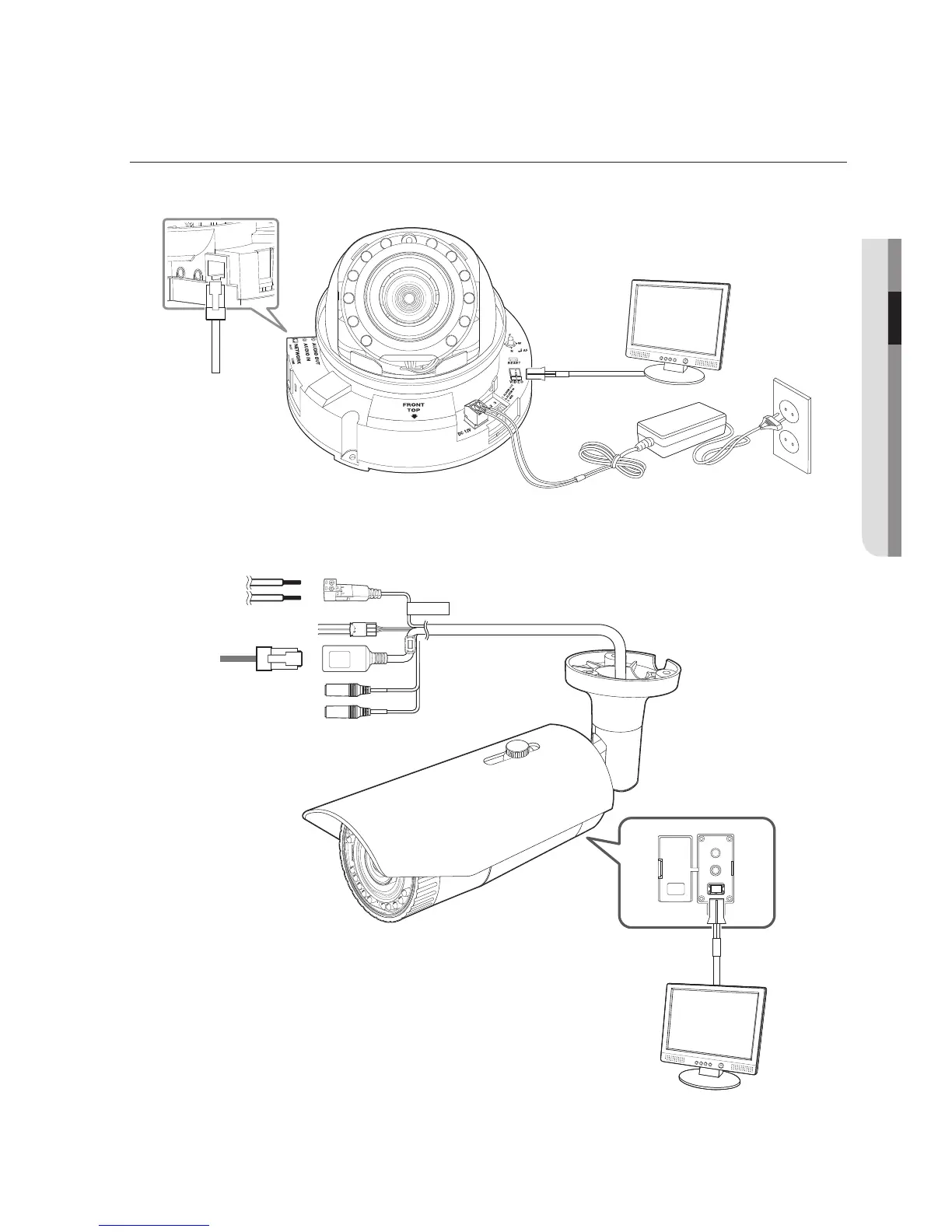

CONNECTING WITH OTHER DEVICE
Monitor to install
Power
Ethernet
<SND-6084R>
Ethernet
Power
ARM-IN
GND
ARM-OUT
CAUTION:Be ware of the
Rated Voltage and Polarity
of the power connection.
<SNO-6084R>
Monitor to install
