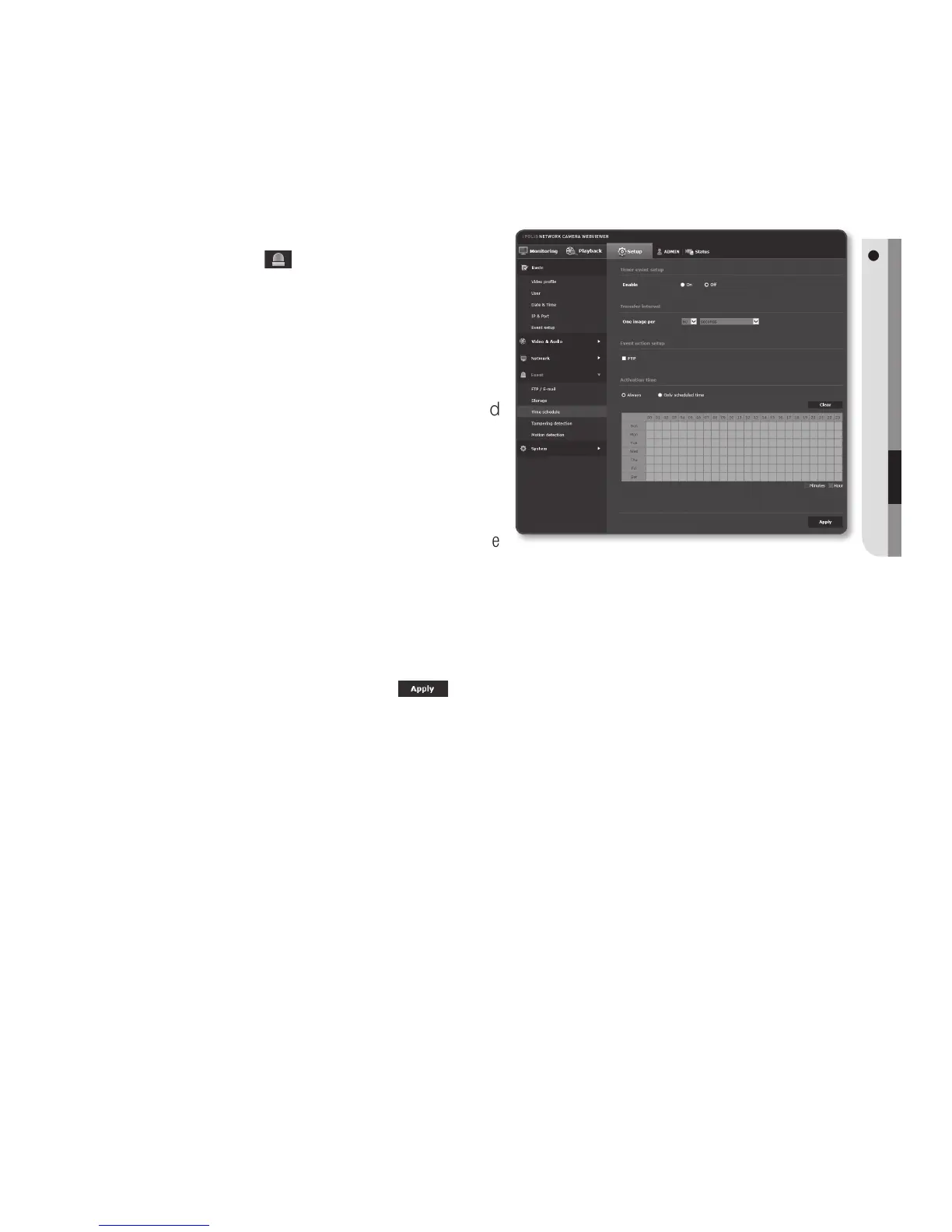

Time schedule
You can set to save the video data at a certain interval as scheduled regardless of the
actual occurrence of the event.
1. From the Setup menu, select the
<Event (
)> tab.
2. Click <Time schedule>.
3. Set whether or not to <Enable>.
4. Specify the <Transfer interval>.
5. Specify the <Activation time>.
• Always : Always activates in operated
mode at the set interval.
• Only scheduled time : Periodically
activates in operated mode at a
specified time and date.
J
`
The transfer interval setting value must be
smaller than the preset activation interval to succeed in image transmission.
6. Specify the activation conditions.
• FTP : To set whether or not to send FTP when an event is detected.
`
Refer to “FTP / E-mail” for more details. (page 110)
7. When done, click [Apply (
)].
English _119
● SETUP SCREEN

Samsung SND-L6013R Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	Ivory
Total megapixels	2 MP
Maximum resolution	1952 x 1116 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 720 x 576, 1280 x 960, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Pan range	0 - 354 °
White balance	ATW, AWC, Indoor, Manual, Outdoor
Tilt angle range	0 - 67 °
Angle of rotation	355 °
Minimum illumination	0.15 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Effective sensor resolution	2.38 pixels
Optical zoom	- x
Focal length range	3 - 8.5 mm
Built-in HDD	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, ONVIF
Compliance industry standards	IEEE 802.3af
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	50 dB
Power source type	PoE
Power consumption (max)	9 W
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	107.6 mm
Weight	485 g
Diameter	132.1 mm
