18
SPEED DOME CAMERA ACCESSORIES
19
SPEED DOME CAMERA ACCESSORIES

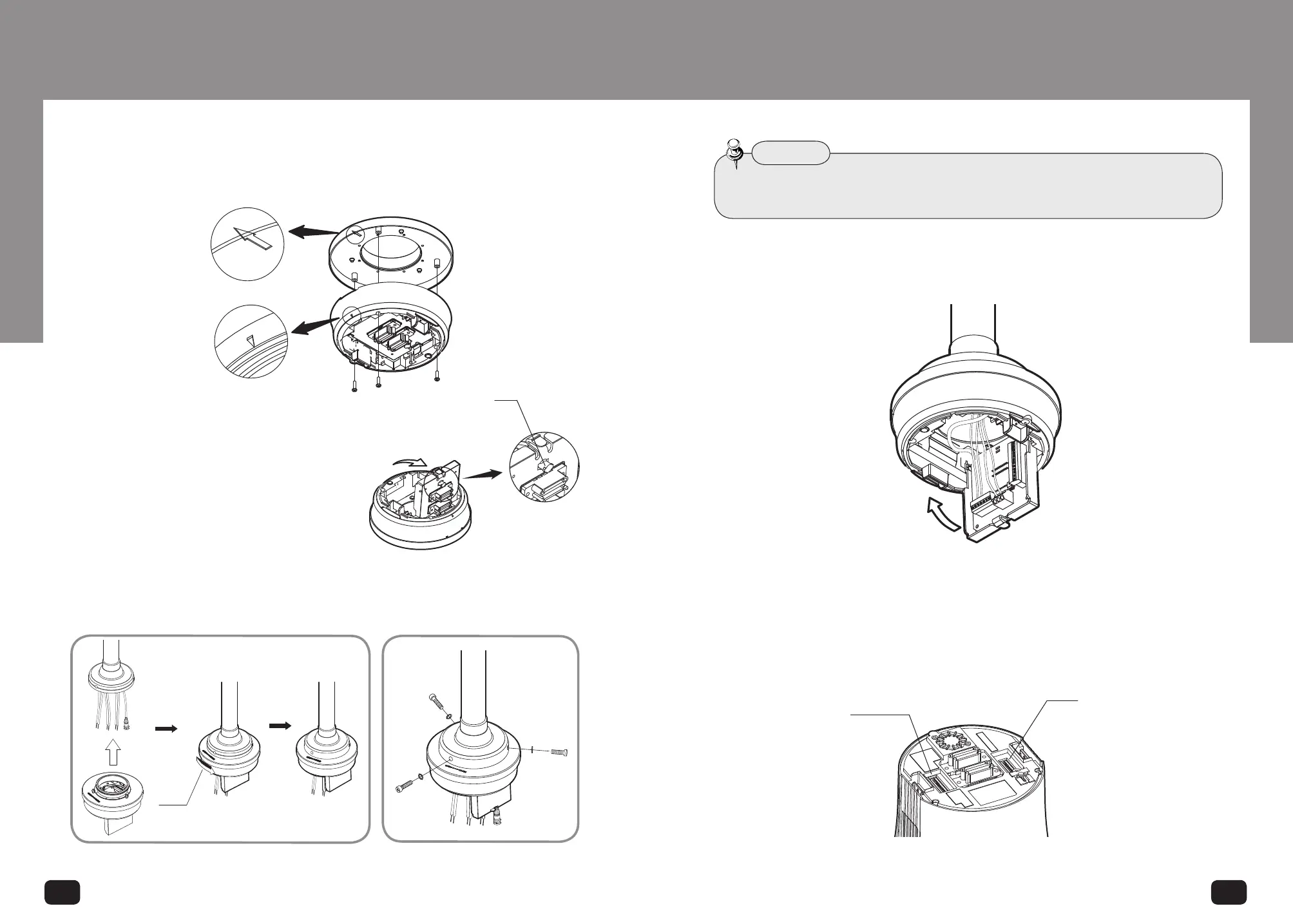

2. Opening Hinged Door
Open the hinged door at the bottom of the housing.
Hold the knob on the hinged door to open.
Alignment Directions
CLOSE
Protocol(SW2)
ID(SW1)
STH-380PO/370PO/370PI/360PO
STH-380PO/370PO/370PI/360PO
1. Assembling Flange and Ceiling Exposed Mount (STB-370PC)
Wind sealing tape around the barrel of the screw taps, and then secure the STP-25PF flange
securely to the mount with the enclosed screws.
4. Wiring Terminal Cables
Connect the cables to the terminal block on the hinged door. Once the wiring is successful,
close the hinged door.
5. Setting Up Camera DIP Switches
DIP switches for communication and ID protocols are located on the bottom of the camera.
For the switch settings, refer to the appendix of this manual.
3. Assembling Mount and Flange
First hook the safety cable on the mount, and then fit the housing into the fixture groove on
the bracket as shown in the picture. Once the housing is safely attached to the bracket,
secure the housing with the enclosed screws.
•Do notconnect thecamera toa poweroutlet until the installation is complete.Supplying
power in the middle of the installation may cause fire or damage the product.
Notes
✽
For the location of the wiring pins, please refer to the “Camera Wiring Diagram” on Page 12.
Pendant Type Installation Pendant Type Installation
Knob
To Next Page
