30
SPEED DOME CAMERA ACCESSORIES
31
SPEED DOME CAMERA ACCESSORIES

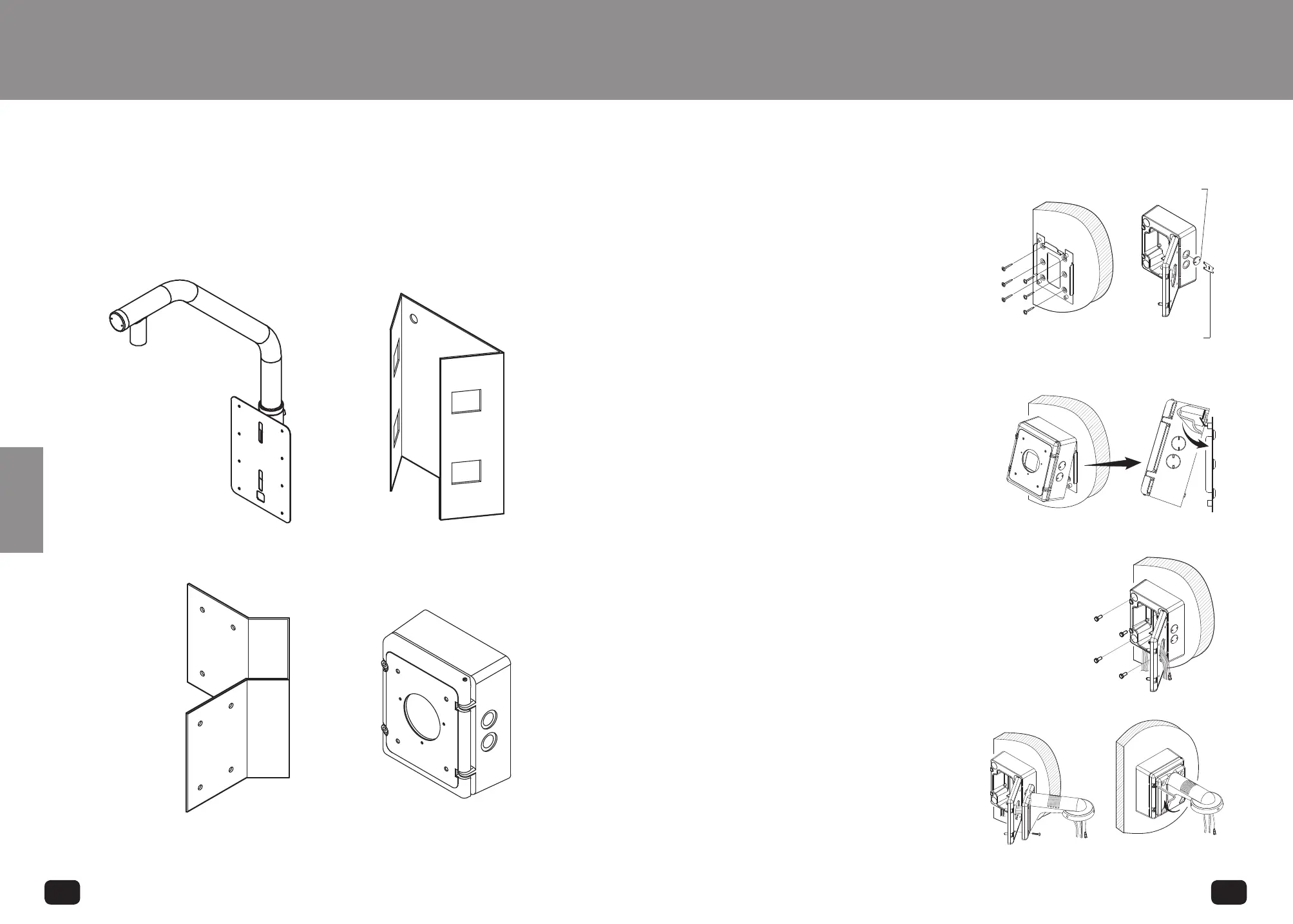

■ 6. Mounting Accessory Installation
This guideline is to be used for the installation of mounting accessories for the
Samsung Speed Dome Camera series.
STB-350PPM
STB-340PCM
STB-330PPM
STB-270B
■ STB-270B(Setup Box)
MOUNT CAP
MOUNT CAP
FASTENER
STH-370PE
1. Using self drilling screws, secure the install
bracket.
2. Fill unwanted wire holes with mount caps.
Secure the mount cap with the mount cap
fastener.
3. Place the setup box on the install bracket
as shown in the picture.
4. Using hexagon bolts, fasten the setup box
to the bracket. Next feed the camera
cables into the setup box through the hole
in the cover.
5. Feed the camera cables through the wall
bracket and secure the bracket using 4
screws.
6. Lastly, fasten the screws using a hexagon
wrench to secure the bracket to the setup
box.
Mounting Accessory Installation Mounting Accessory Installation
