■ 4. On-Ceiling Mount Type Installation
This guideline is based on the installation of the indoor flange STB-370PC.
STB-370PC
STH-380PO/370PO/370PI/360PO
STB-370PC

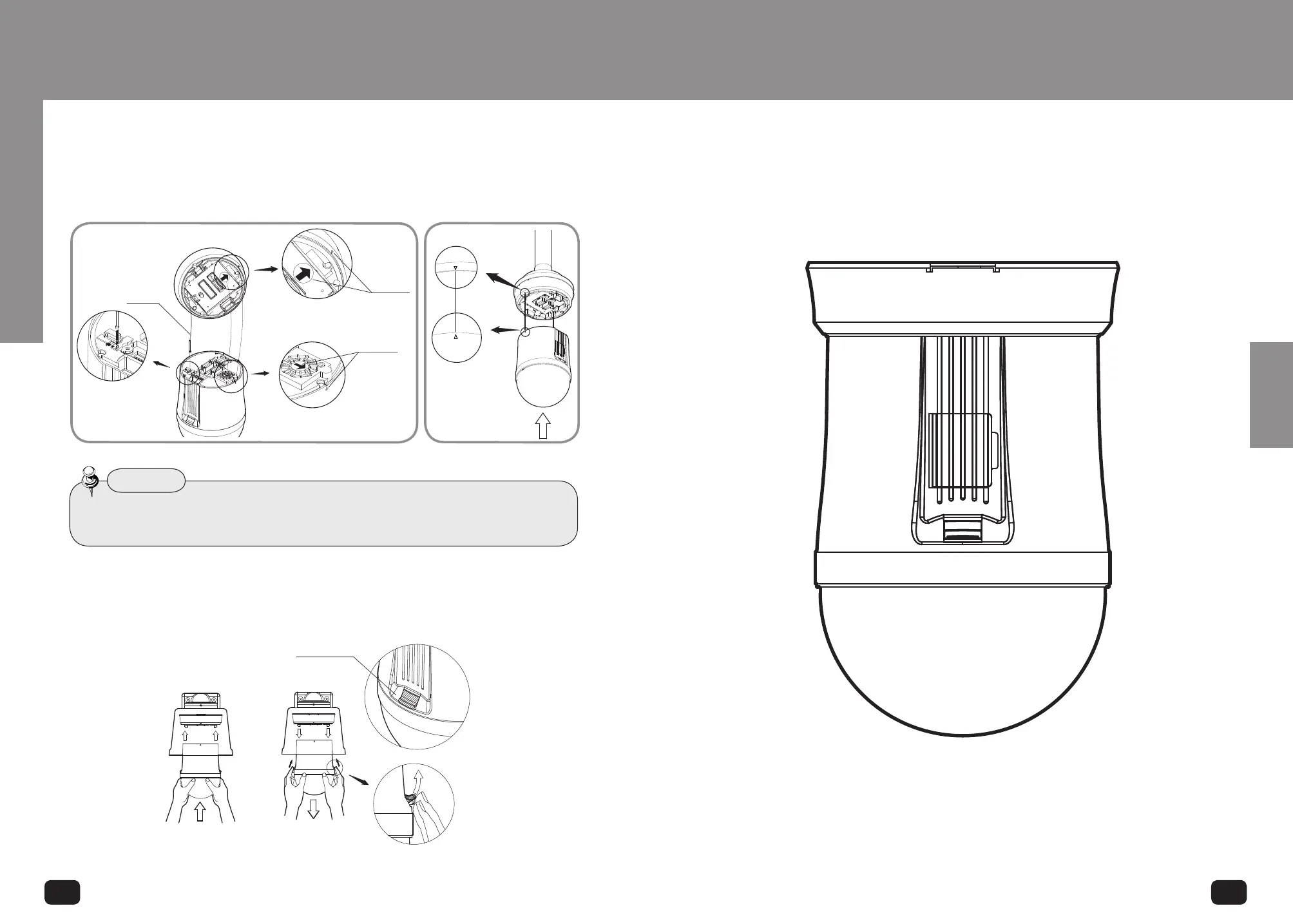

6. Attaching Camera
Carefully attach the camera to the mount following the alignment guide marks as shown in
the picture. First hook the camera's safety cable on the mount, and then attach the camera.
The safety cable is coiled inside the install base. As shown in the leftward picture, pull out
the safety cable from the install base and then hook it to the mount.
✽ To attach the camera to the mount, refer to the alignment guide marks as shown in the picture.
•Makesuretofirsthookthecamera'ssafetycabletothemountbeforeproceeding.Otherwise
youmaybeexposedtoseriousinjurycausedbyafallencamera.
Notes
✽ To attach or detach the camera, refer to the picture.
* Attaching the camera: Hold up the camera and push it to the mount as shown in the
picture. Push the camera until you hear a “click”.
* Detaching the camera: To detach the camera, pull the camera downward while pushing
the unlock buttons on the camera upward.
Safety
Cable
Alignment
Direction
Guides
Alignment
Direction
Guides
Alignment
Directions
To attach the camera To detach the camera
UNLOCK
Unlock Button
