Spinpoint M8 Product Manual REV 2.7
17
INSTALLATION
Computer
mainboard
or ...
Serial ATA
host adapter

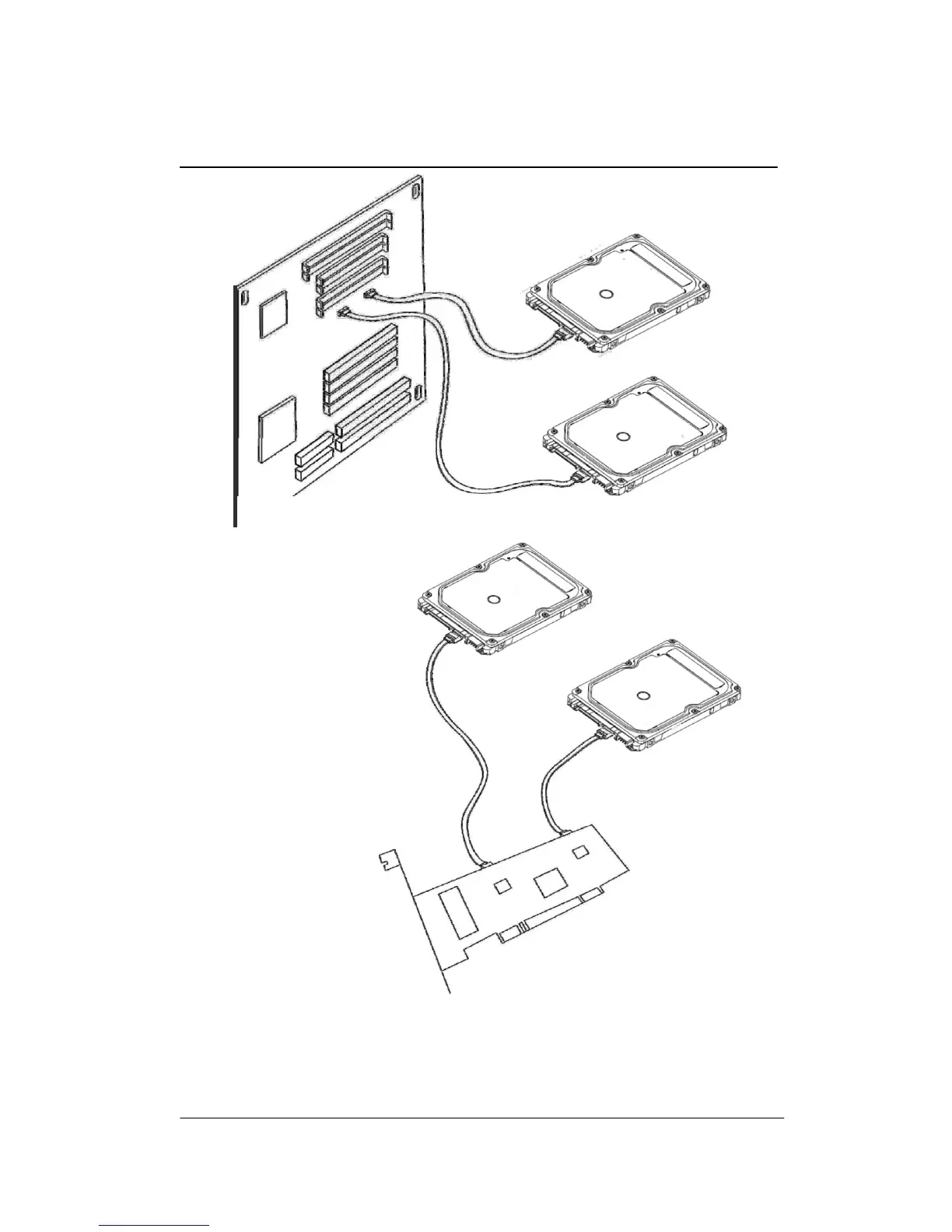

Figure 4-5 Connectivity to Drives
Figure 4-5 illustrates Connectivity of SATA to drives. It can be used with a SATA host adapter (lower
picture) or directly into motherboard that has the SATA built-in host bus adapter (upper picture).
