Spinpoint M8 Product Manual REV 2.7
21
INSTALLATION
4.5 Drive Installation
The Spinpoint M8 hard disk drive can be installed in a SATA compatible system

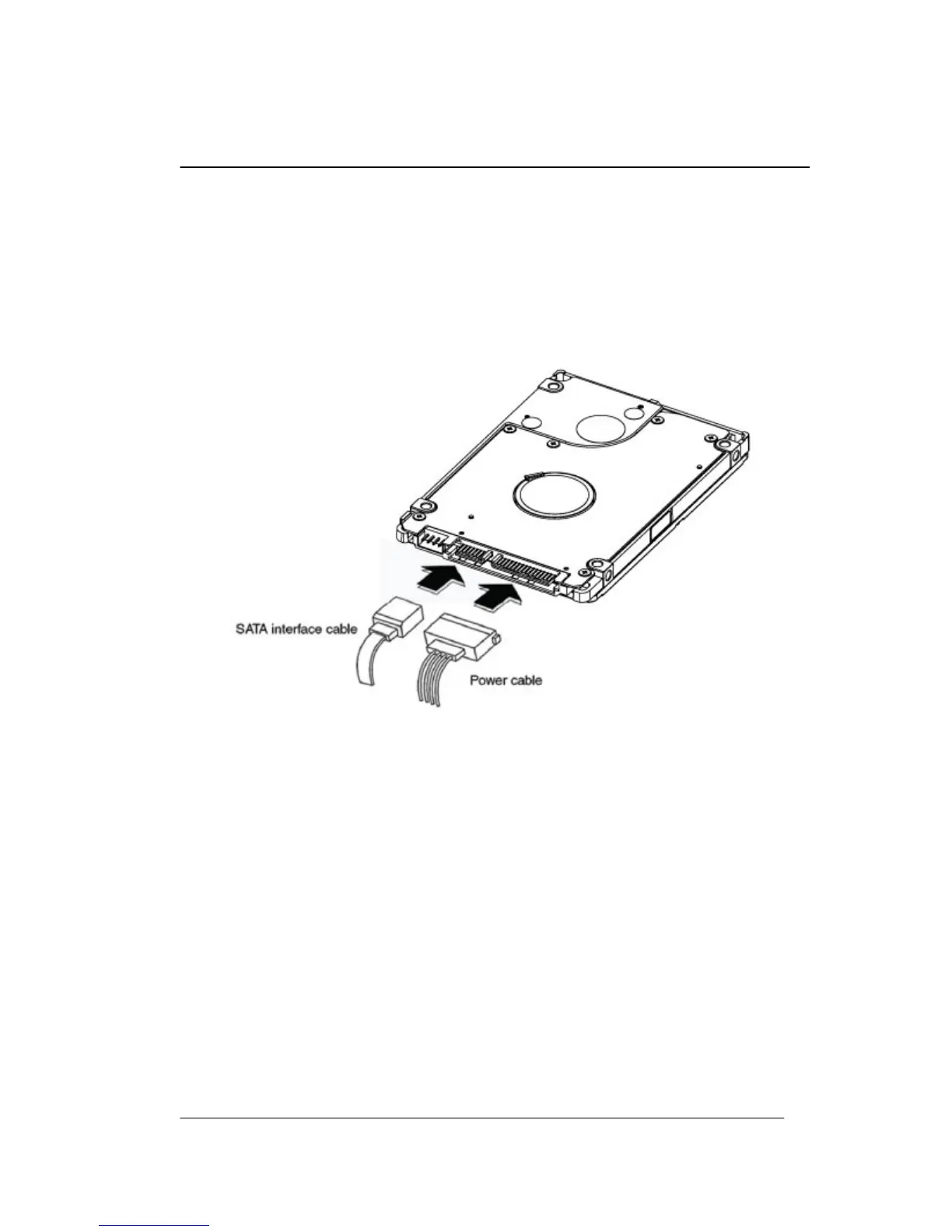

Figure 4-8 indicates the interface and power cable connections required for proper drive installation.
Figure 4-8 DC Power Connector and SATA-Bus Interface Cable Connections
