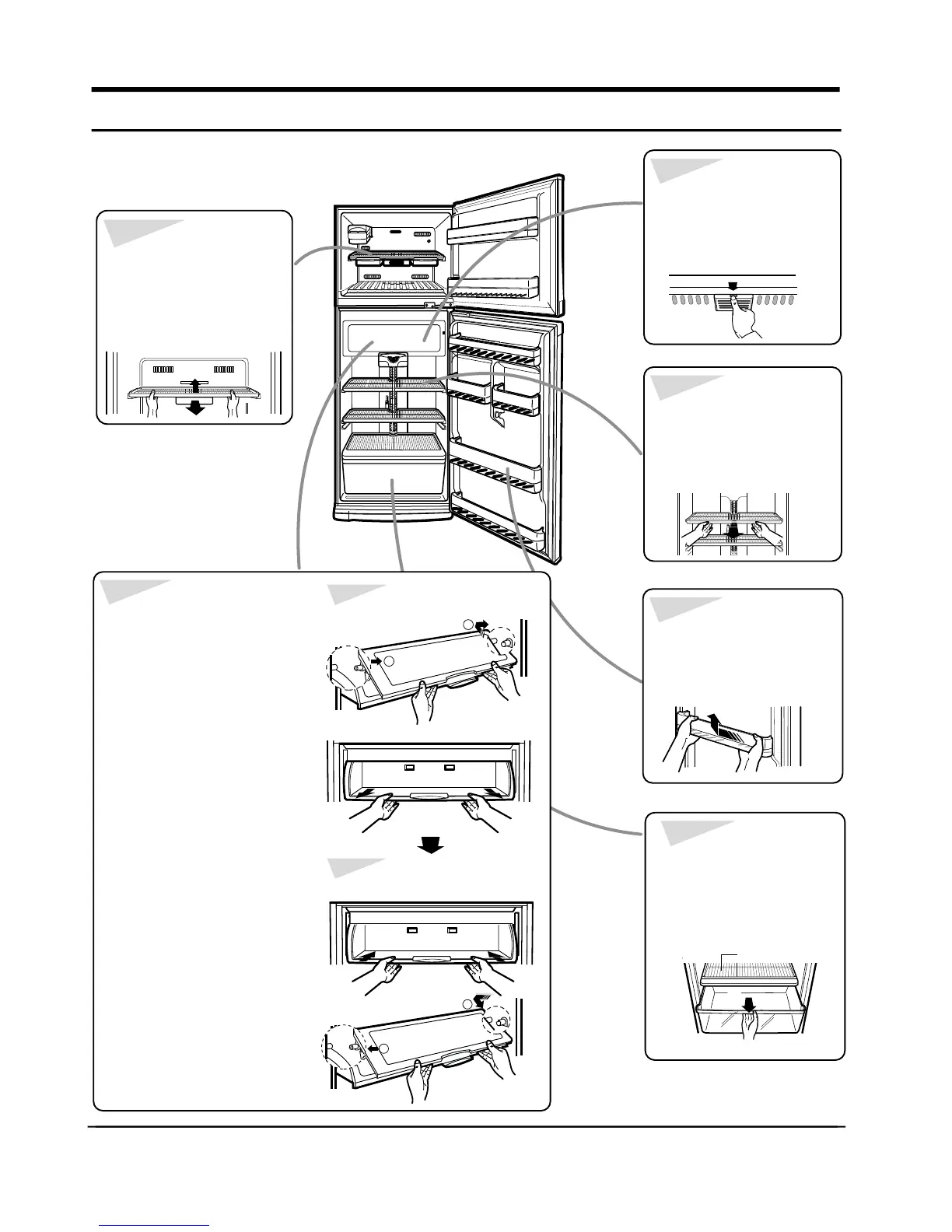

Samsung SR-42 - 5. Identifying and disassembling the parts

1
2
2
1
6 Samsung Electronics
To remove shelves in the
freezing compartment
• Frist remove the icemaking
molds. Tilt the shell up at
front, then lift it up pull it out
of the tracks.
To remove bio
deodorizer
• While pushing the front end
knob of the bio deodorizer,
pull it downward to
disengage.
To remove shelves in the
refrigerating compartment
• Hold the shelf by the
front and pull it forward
of the rack.
To remove shelves in the
chilled compartment
Disassemble
Reassemble
• Lift up the cover, push the
cover to the right (as shown)
until the mounting hook(1)
disengages, then disengage
the other mounting hook (2)
and pull out the cover.
• Pull the shelf forward until it
stops. then lift it up and pull it
out.
• With shelf front raised slightly,
engage, the roller between the
rails and slide it back.
• To repace the cover, first
engage the mounting hook (1)
as shown, then engage the
other hook (2) and push in.
To remove door bins
• While pushing the bin
to the left, lift it up to
disengage.
To remove storage
drawers and covers
• Lift up to remove the
cover. Pull the drawer helf
way out, then lifting it up,
pull it out completely.
covers
5. Identifying and disassembling the parts
