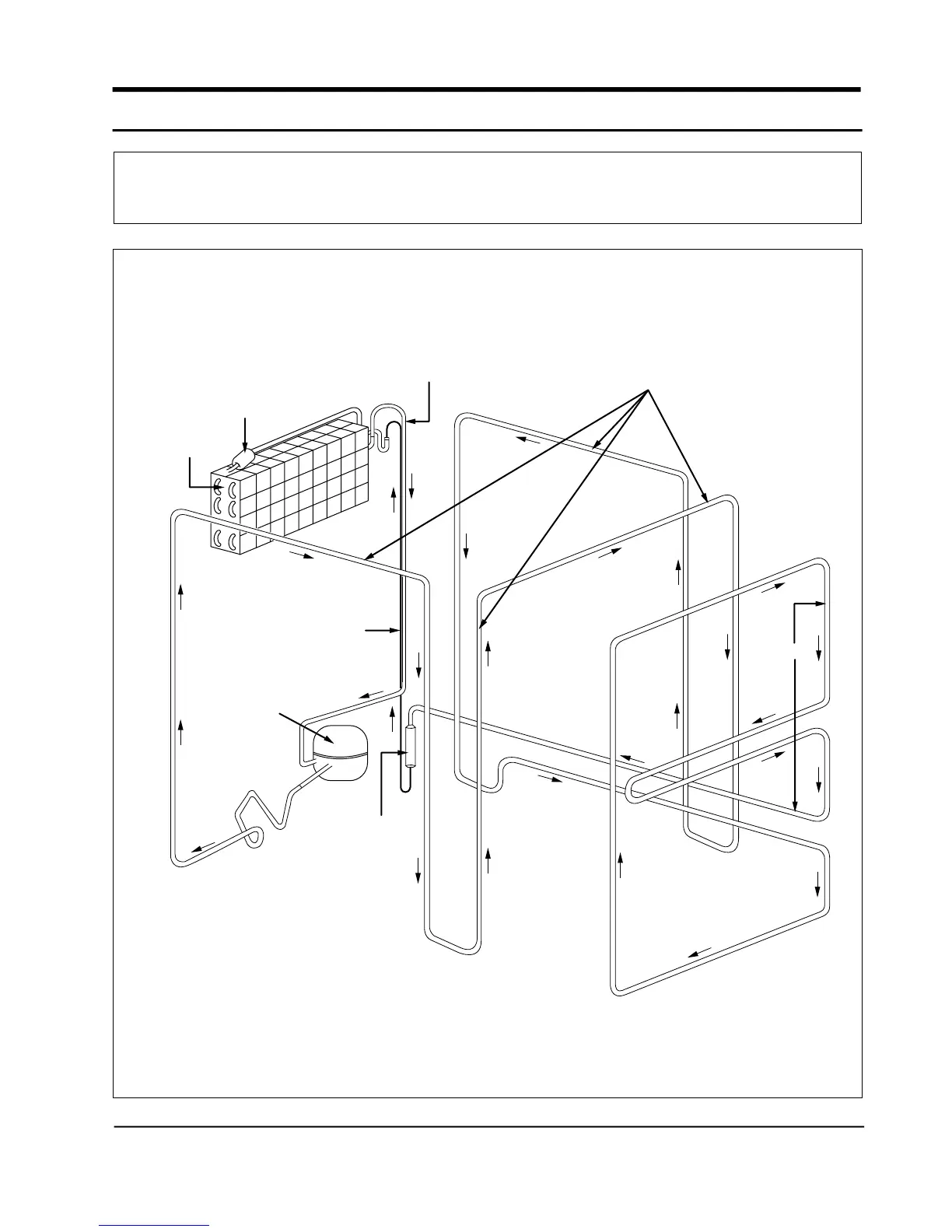

6. Schematic diagram of coolant gas circulation
COMPRESSOR --> CLUSTER PIPE --> HOT PIPE --> DRYER --> CAPILLARY TUBE
--> EVAPORATOR --> ACCUMULATOR --> SUCTION PIPE --> COMPRESSOR
HOP PIPE
CLUSTER PIPE
SUCTION PIPE
ACCUMULATOR
CAPILLARY TUBE
COMPRESSOR
DRYER
EVAPORATOR
