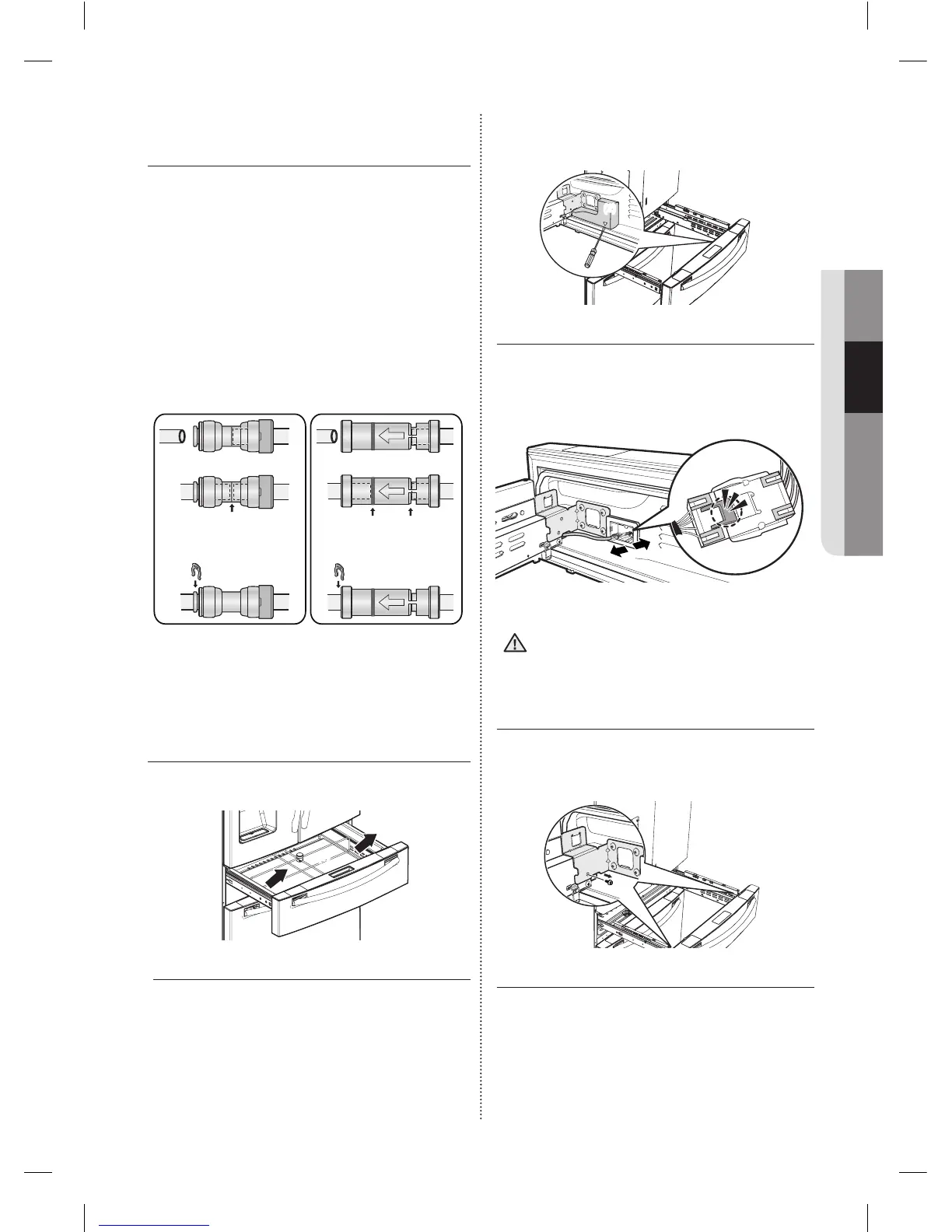

Samsung SRF679SWLS - RE-ATTACHING THE WATER SUPPLY LINES; DISASSEMBLING THE FLEX DOOR

RE-ATTACHING THE WATER
SUPPLY LINES
To reattach the fridge doors after you have moved
the fridge to its final location, assemble the parts
in reverse order.
1. The Water Line must be fully inserted into the
center of the transparent coupler (Type A)
or the Guide Lines (Type B) to prevent water
leakage from the dispenser.
2. Insert the clip in the install pack and check that
it holds the line firmly.
Center of Transparent
coupler
The Guide Lines
Dispenser
clip A (1/4”)
(6.35mm)
Type A Type B
clip A (1/4”)
(6.35mm)
DISASSEMBLING THE FLEX
DOOR
1. Take out the Flex Zone (1) by lifting it up.
(1)
2. Take o the cover (2) w/harness with a flat-
blade screwdriver (-).
(2)
3. Press the locking tab and separate the Wire
Connector.
When reassembling it, be sure to connect
the wire harness.
If it is not connected, the Flex Room does
not work.
4. Remove 1 hex head bolt from each side with a
socket wrench (10mm).
CAUTION
English - 21
