Samsung SyncMaster 3

SIGNAL CONNECTIONS AND PIN ASSIGNMENTS
D-SUB CONNECTOR
The 9 pin D-SUB connector can be used with the supplied 9-15 pin cable.
The 15 pin side connects to any IBM compatible VGA video port, the 9 pin side to the monitor’s
connector.

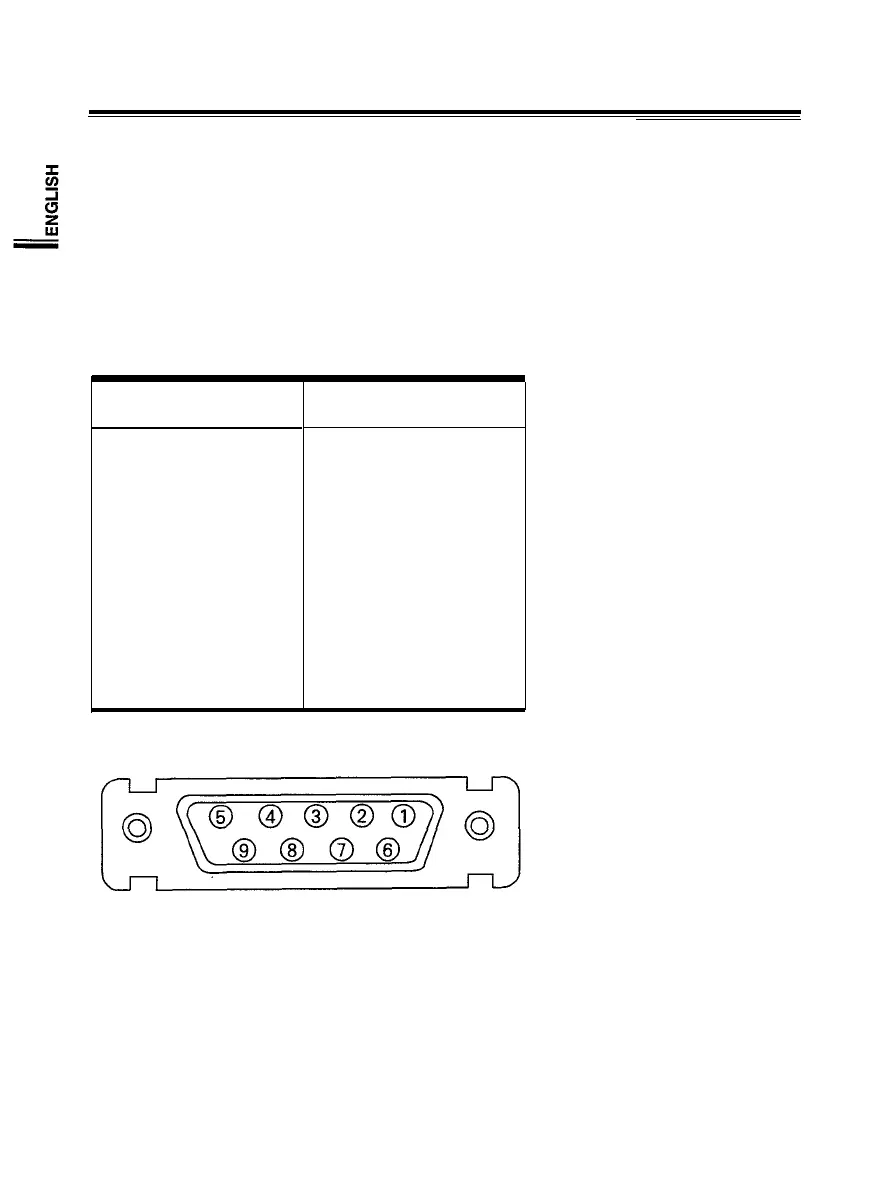

D-SUB Signal Input (Female Type : Figure)
PIN ASSIGNMENT SIGNALS
1
RED
2 GREEN
3
BLUE
4
H-SYNC
5
V-SYNC
6
GND-R
7
GND-G
8
GND-B
9
GND-SYNC
[ Figure ]
10
