Samsung SYNCMASTER 320MPN-3 - 2. Embedded Mount guide; 3. Floor mount guide

Note
A Samsung Electronics service center can provide details.
2. Embedded Mount guide

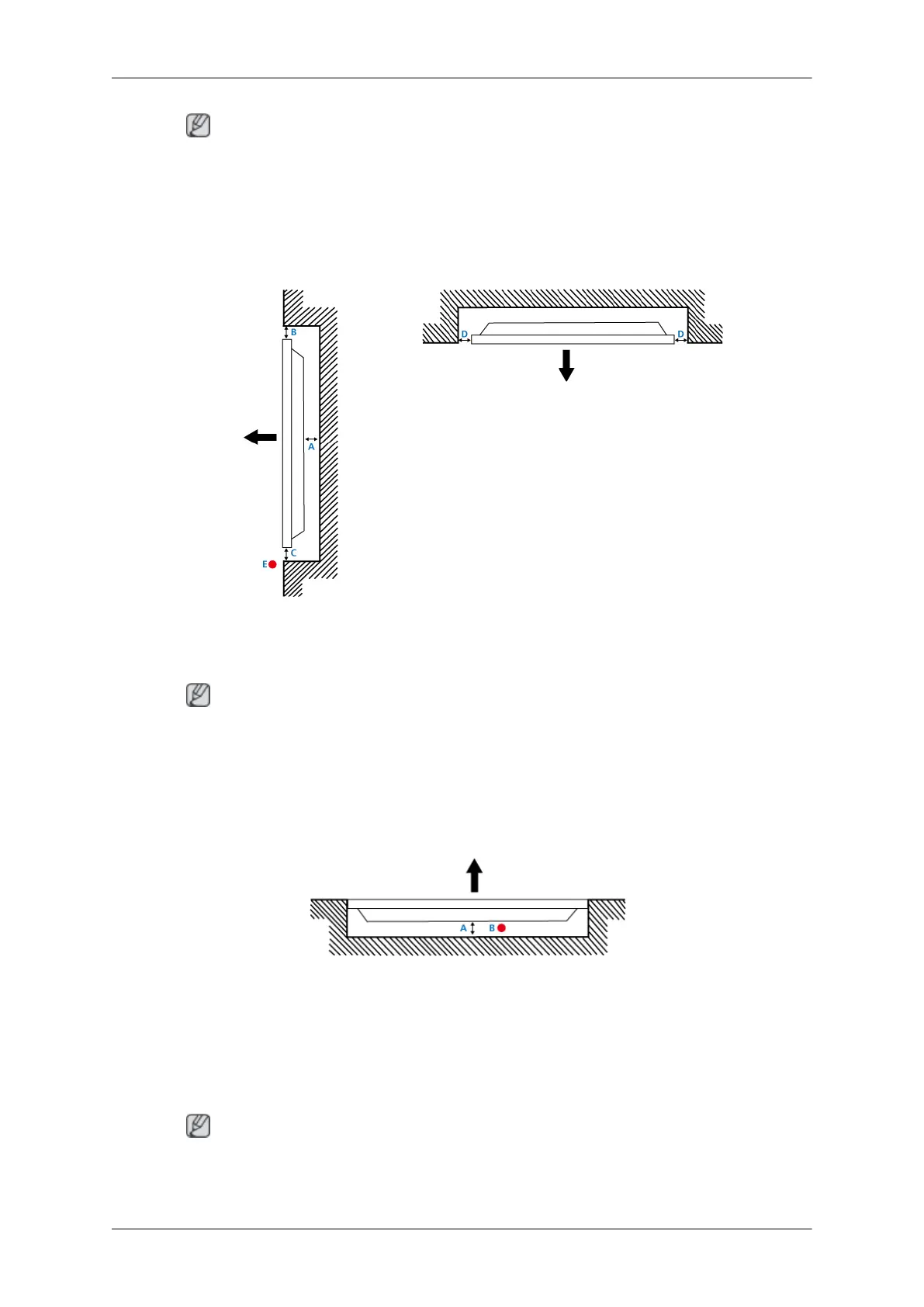

<Side view> <Top view>
A : min. 40 mm
B : min. 70 mm
C : min. 50 mm
D : min. 50 mm
E : Ambient temperature Measuring point < 35°C
• When embedding the product in a wall, be sure there is some space behind the product
for ventilation, as shown above, and maintain the ambient temperature at 35°C or lower.
Note
A Samsung Electronics service center can provide details.
3. Floor mount guide
<Side view>
A : min. 50 mm
B: Ambient temperature Measuring point < 20°C
• When embedding the product in the floor, be sure there is a 50 mm space or more behind
the product for ventilation, as shown above, and maintain the ambient temperature at 20
°C or lower.
Note
A Samsung Electronics service center can provide details.
